Replacing Main Unit
Ge2722A
T10 Torx

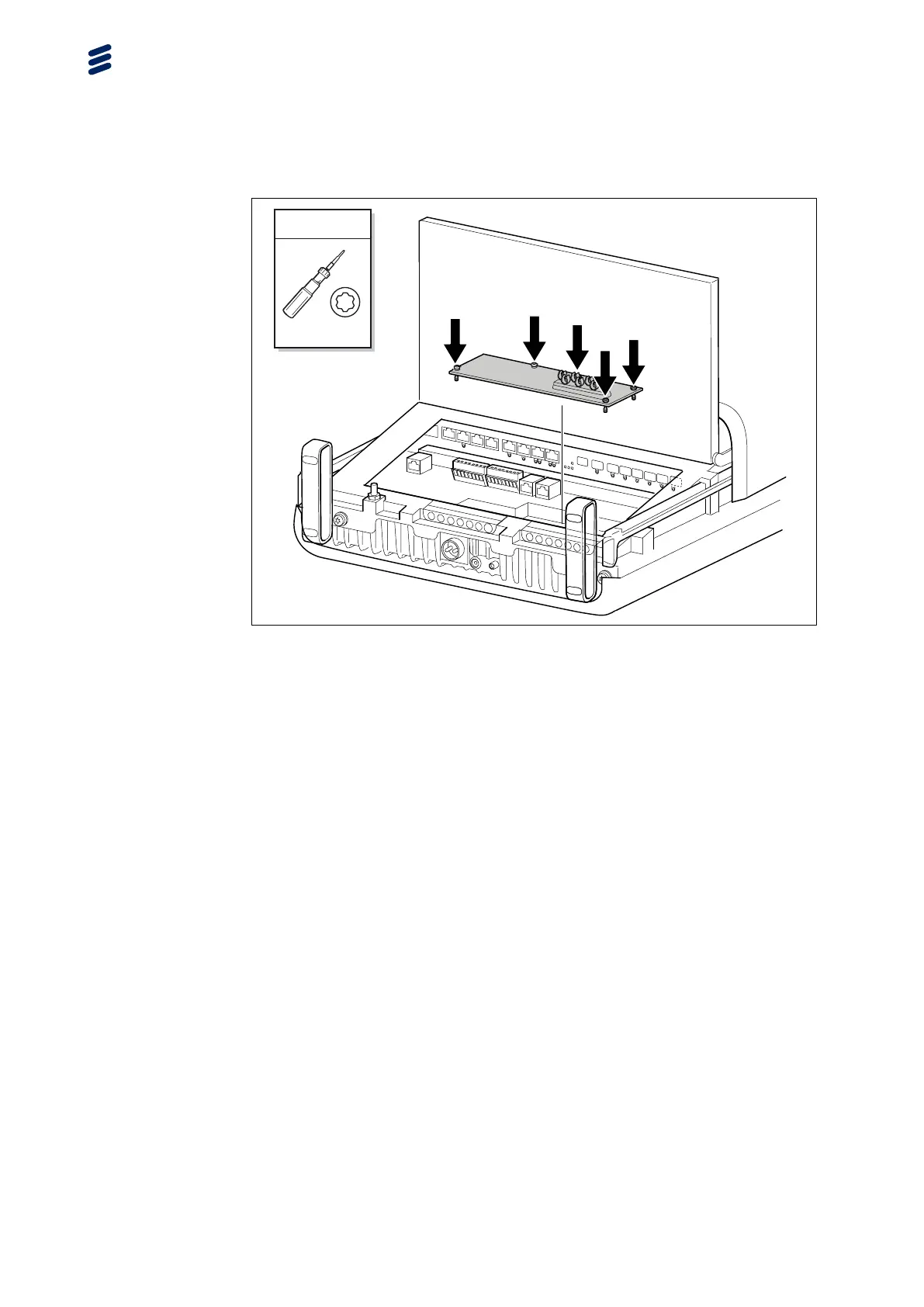

4. Remove the GPS receiver unit. There are two different ways to remove the
GPS receiver unit depending on the R-state of the RBS. For R-state R1,
see second illustration below. For R-state R2 and higher: Pull the GPS
receiver unit straight up as shown in the following illustration.
Note: Be careful not to break the coax cable connector.
36
81/1543-LZA 701 6001 Uen B | 2012-11-09
