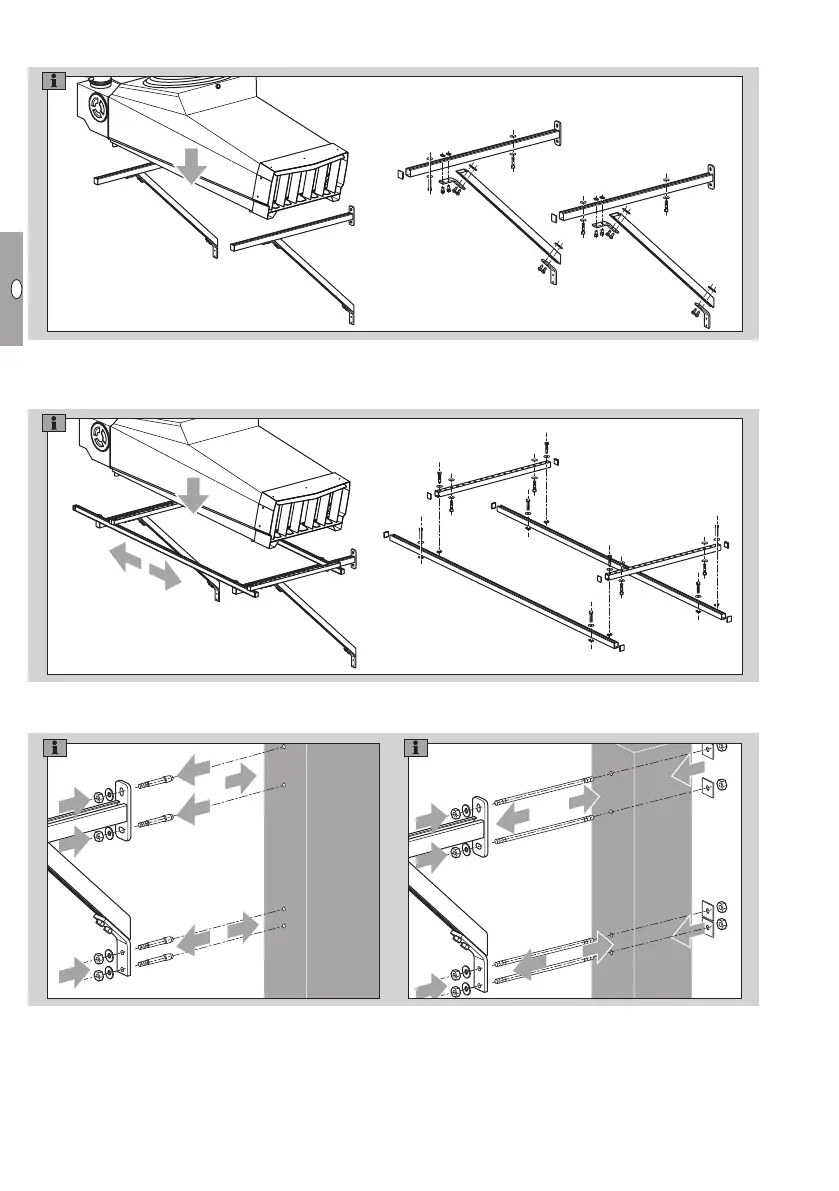

Wall bracket
The wall bracket is the support and wall mounting for the heater. The position of the heater is fixed.
Two wall mounts with angle brackets and fastening elements, Order No.: N70000002.
Slide for the wall bracket
The slide on the wall bracket enables the heater to be moved horizontally.
4 struts with fastening elements, Order No.: N70000015.
Wall bracket fastening set
Fastening set for wall plug mounting, consisting of 8 x M8 fastening elements for the wall bracket,
Order No.: N70000017.
Fastening set for a through-hole in the wall, consisting of 4xM10 threaded rods, each 1m long, and 8x
fastening elements. The threaded bolts can be cut as desired to a maximum of 500mm in length for securing
the wall bracket, Order No.: N70000016.
