Spare parts
▷ When ordering spare parts, please quote the order number along with the designation and item no. of
the spare part as well as the heater serial number.
▷ When ordering spare parts which are not listed here below, please quote the edition of these operating
instructions and the heater serial number.
▷ Use original spare parts only to ensure the replacement complies with the requirements stipulated by the
manufacturer.

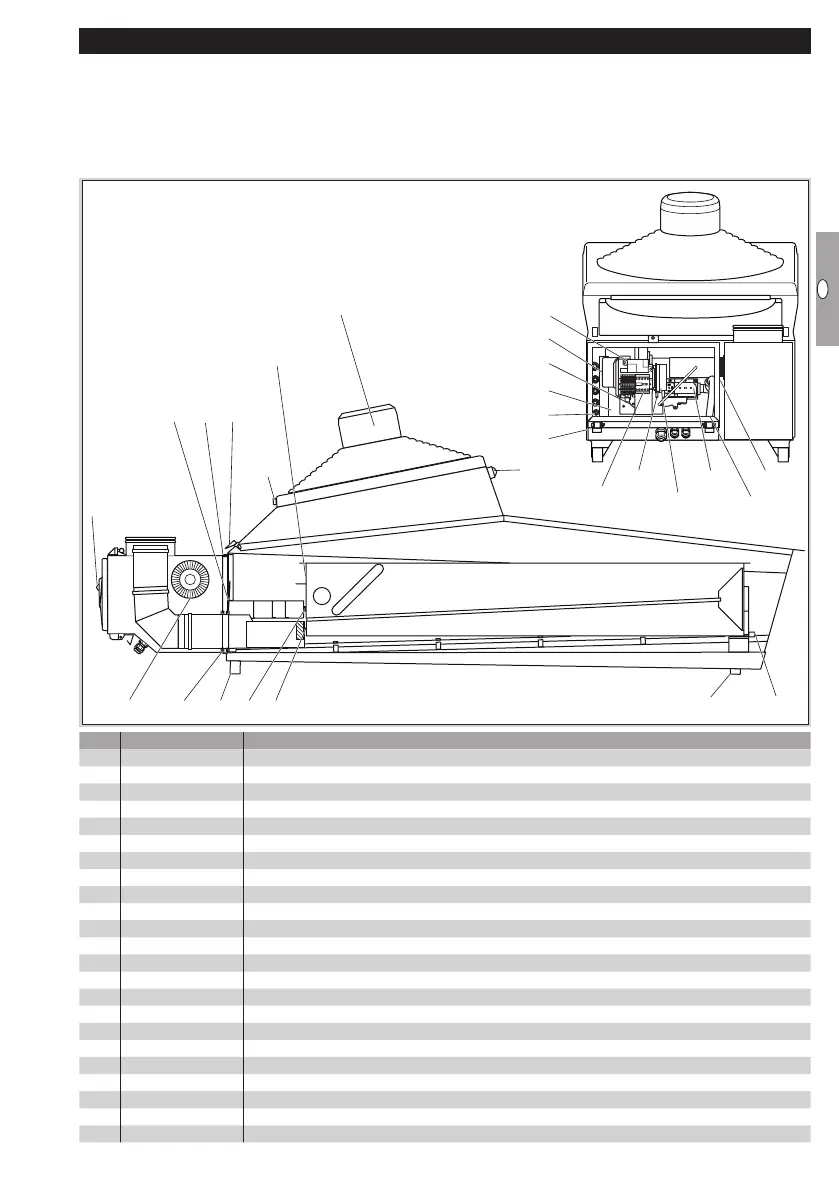

37, 38, 39,
40, 41, 44
36
35
29, 30, 31, 32, 33, 34
27
1, 2, 5, 6, 7
12 26
28 42, 14
16
8
15
23
24
43
17, 18
3, 4
19
45 45
20, 21
11
13 25 91
02
2
Item Order number Designation
1 N50260150 Ignition cable 1 x 7 mm, TPE, black (per metre)
2 N50500016 Splash guard cap for ionization/ignition electrode
3 N50820058 Rigid silicone hose, 6 x 4 mm (per metre)
4 N52500050 Silicone hose, 7 x 5 mm (per metre)
5 N70000019 TR 75 ionization electrode
6 N70000020 TR 75 ignition electrode
7 N70000021 TR 75 seal for ionization/ignition electrode
8 N70000022 TR 75 ignition transformer
9 N70000023 TR 75 seal for combustion chamber
10 N70000024 TR 75 seal for flue gas chamber
11 N70000027 TR 75 seal, Ø 60 mm, axial seal
12 N70000028 TR 75 rubber seal, U section (per metre)
13 N70000029 TR 75 seal, Ø 100 mm
14 N70000030 TR 75 filter service cover
15 N70000031 TR 75 burner fan seal
16 N70000032 TR 75 burner fan RG 148
17 N70000035 TR 75 3-phase relay
18 N70000036 TR 75 3-phase relay socket
19 N70000037 TR 75 air pressure switch DL 2E
20 N70000038 TR 75 metal hose, 3/4" x 290 mm
21 N70000039 TR 75 flange for metal hose
22 N70000040 TR 75 vibration damper, Ø 30 x 15 x M8 x 10
23 N70000041 TR 75 rubber seal, U section, radial seal (per metre)
