2 Interface
2.1 Display
Weight
display

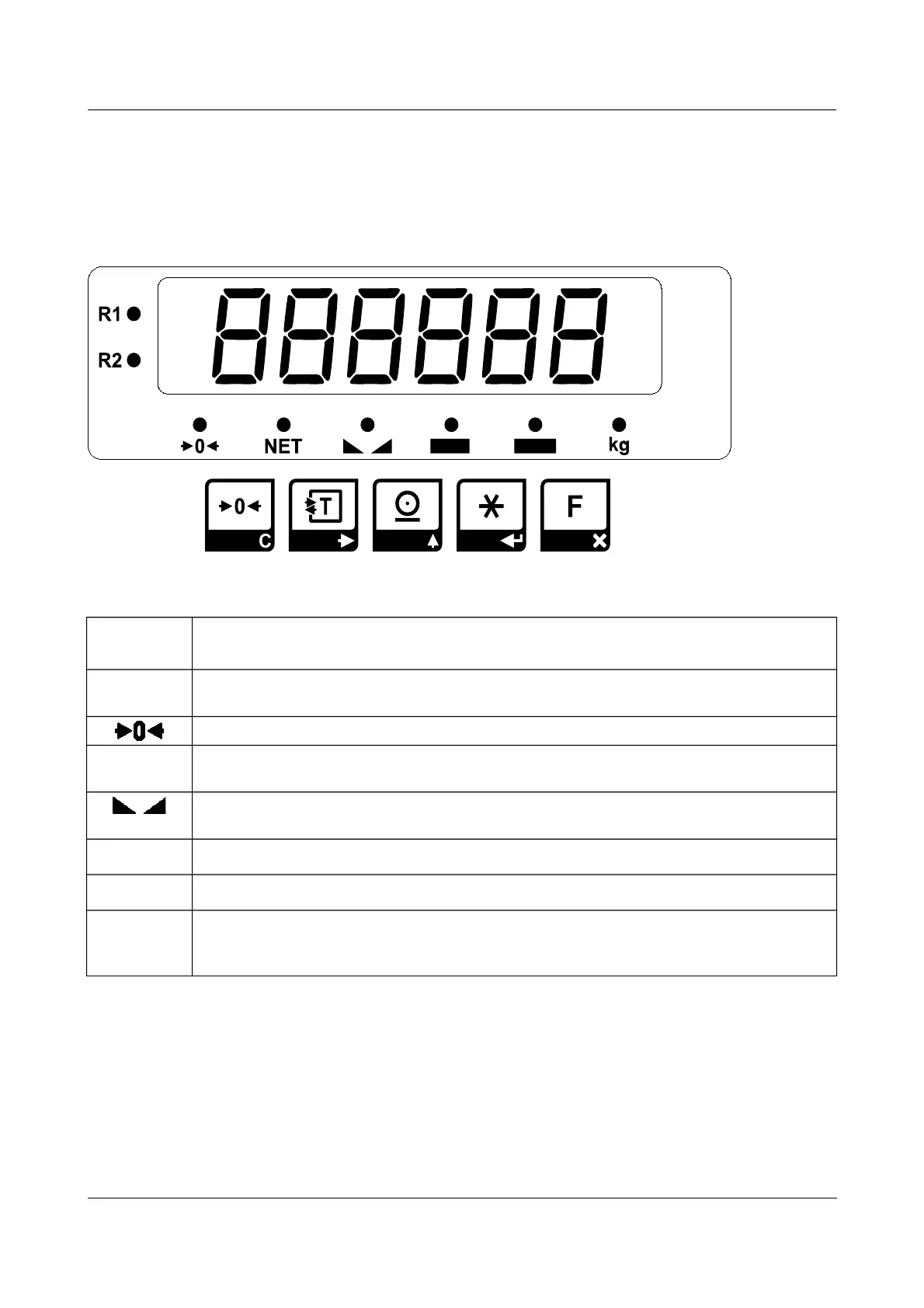

6 digit 7-segment led display with decimal point
(Negative values are displayed with a minus sign in the leftmost digit)
R1 , R2
Range indicator: If configured as a multi range instrument, indicates the current
weighing range.
Center-of-zero indicator: Indicates the deviation from zero is not more than ±0.25 e.
NET
Net indicator: Indicates that a tare device is in operation and the displayed weight
value is a net weight.
Stability (No-motion) indicator: Indicates that stability of equilibrium has been
reached.
kg
Unit of weight: Indicates the unit of the weight, if a weight value is displayed.
BAT
Low battery indicator: If flashing, indicates a low battery condition.
F
Function indicator: Indicates that a function is in operation and the displayed value is
a calculated value. A sticker identifying the displayed value (e.g. unit) shall be attached
here for the configured function.
v1.00 Page 5
