-- 5 --
bh11d1ea
Welding power source complies with IEC 974-- 1
Power cable rating complies with Swedish regulations.
5 INSTALLATION
WARNING!
This product is intended for industrial use. In a domestic environment this product may cause radio
interference. It is the user’ s responsibility to take adequate precautions.
Caddy 140 is intended for 230 V, single phase supplies.
The 230 V can be used with 230--240 V, 50--60 Hz supplies.
To get maximum performance from the Caddy 140 it must be fitted with a 16A slow
fuse. A 10A slow fuse is adequate for welding at currents u p to 100A.
Caddy 200 is intended for 400V, 3 phase supplies. It can be used with 50 Hz or
60 Hz supplies.
To get maximum performance from the Caddy 200 a 10A fuse is adequate. (400 V
sockets normally have 16A fuses).
The Caddy 140 and 200 both have mains voltage compensation, which means that
¦10% fluctuation in the supply voltage produces only ¦0.2% variation in the weld-
ing voltage.
6OPERATION
General safety regulations for the handling of the equipment can be found on
page 3. Read through before you start using the equipment!
The power switch is at the rear of the Caddy. The white lamp on the front will glow
when the power is on.

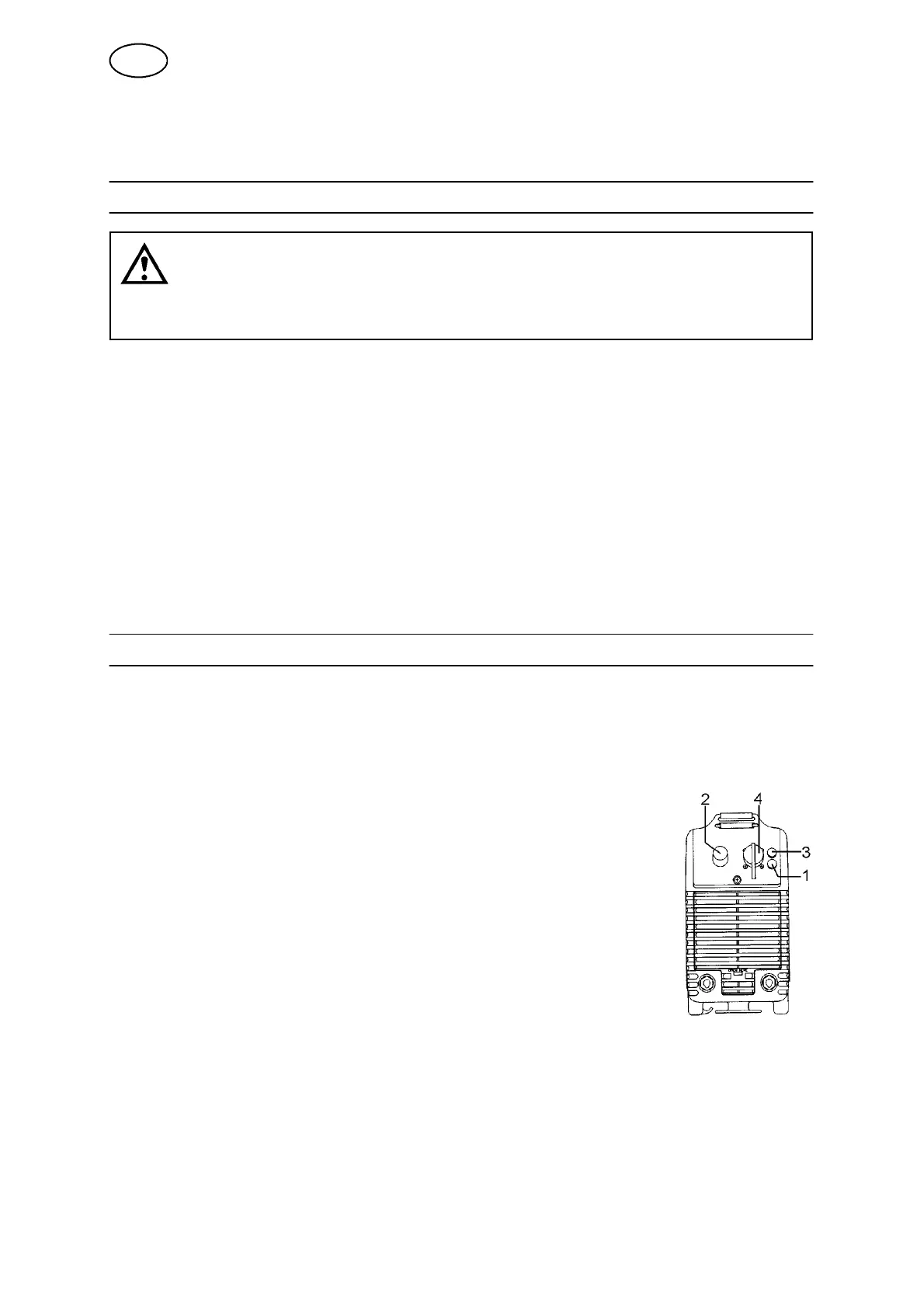

1. Yellow lamp
2. Welding current control 3--140A
3. White lamp
4. Remote control socket
The current is adjusted using the knob on the front.
To save you worrying about overloading the Caddy it has a thermal
cut--out that will trip before the temperature becomes too high. You
can tell when the rectifier has been overloaded because the yellow
light comes on and it will no longer be possible to weld.
GB
bh11d001
