27

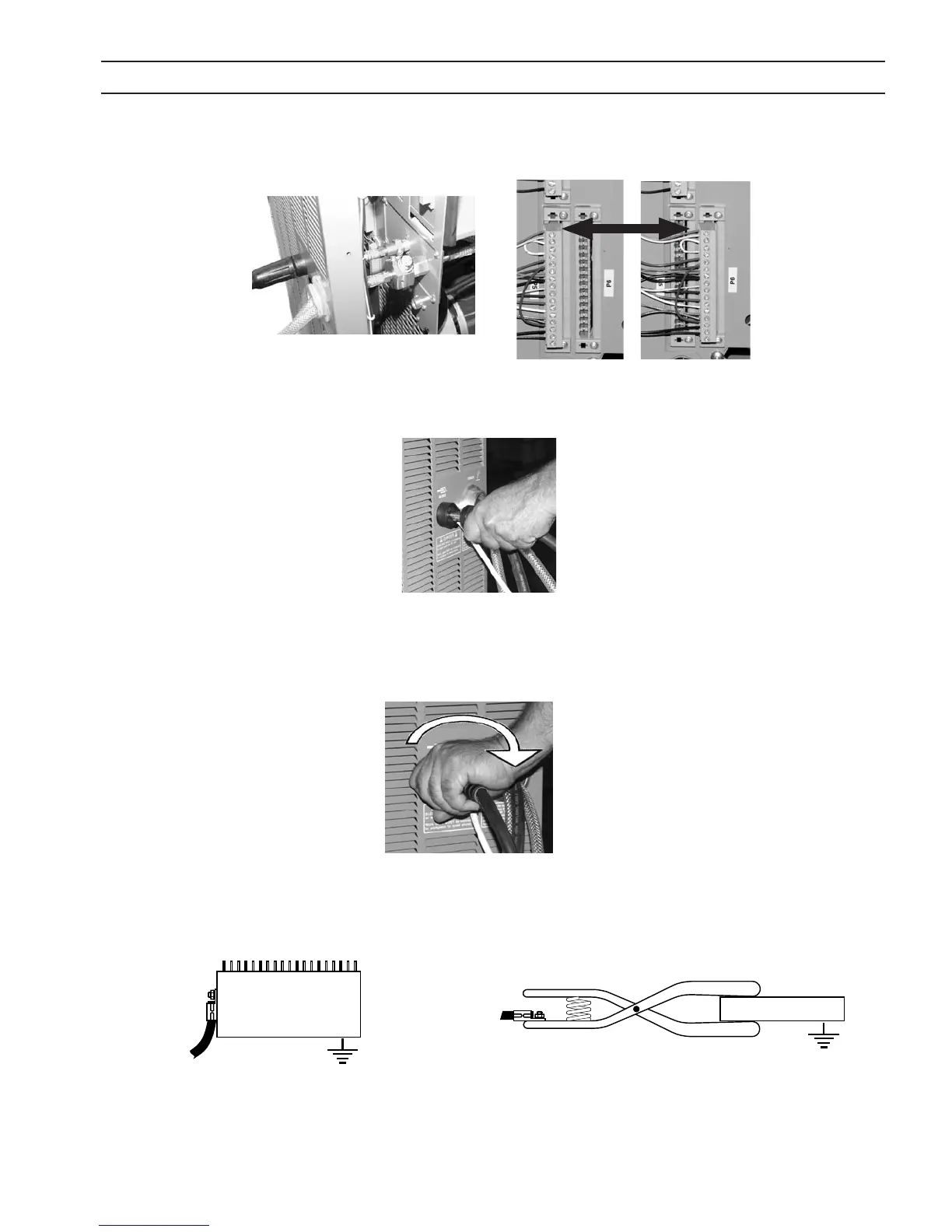

2. Re-install side panel of the ESP-200 Console.
3. Connect work cable to work connection on the front panel of console.
Insert and rotate clockwise until tight. Approximately ½ turn.
SECTION 3 INSTALLATION
P5/P6 location
Move connector
f. Move the P5 plug from J5 position to J6 position. This is to setup the plasma console for a remote plumbing box.
Work ground to cutting table
4. Connect the other end of the work cable to workpiece or cutting table. Connection must be made to a clean, exposed
metal surface, free of paint, rust, mill scale, etc.
Work ground to work piece
