SECTION 3 INSTALLATION

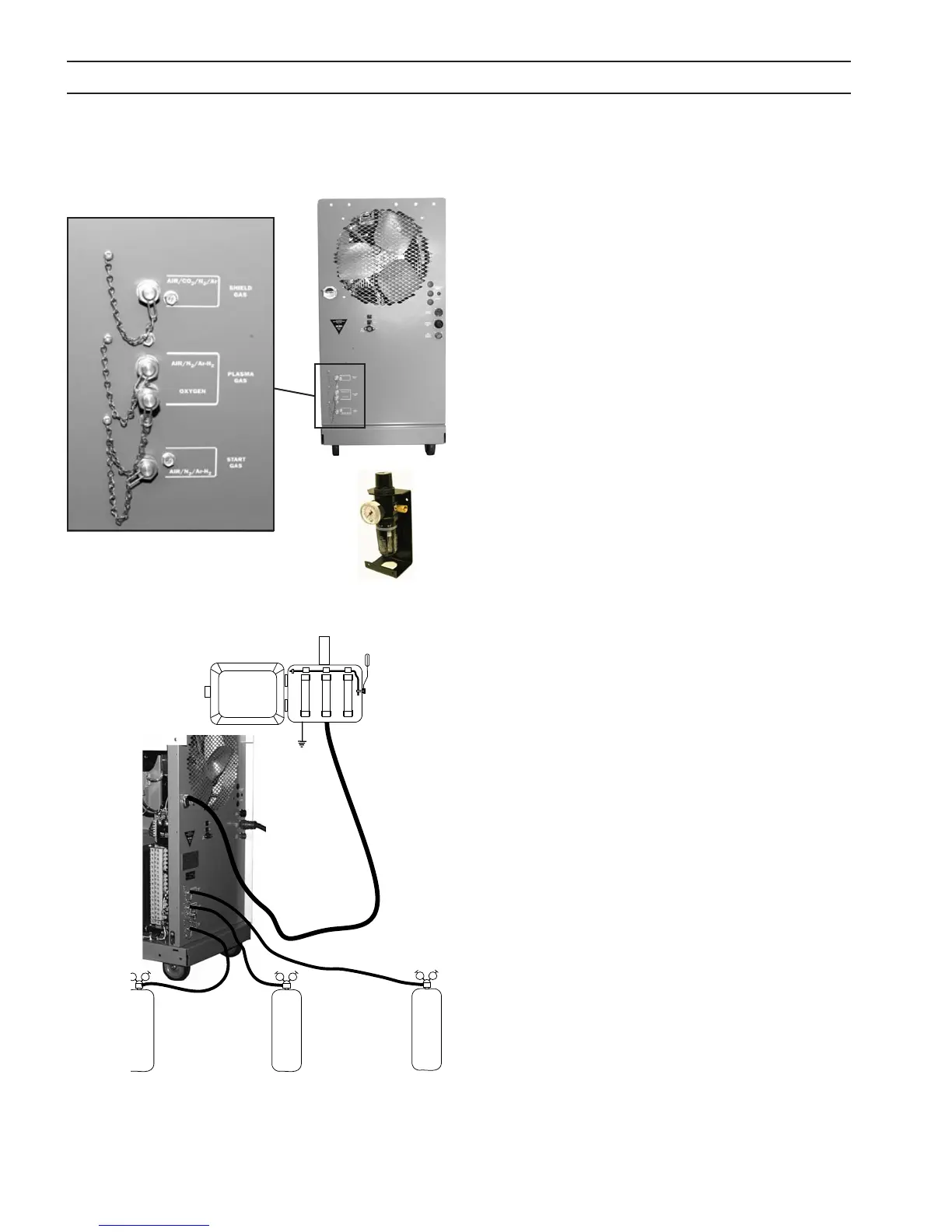

3.4.3 Gas Input Connections
Rear view of console
PT-26 Input Connections
Connect primary current conductors and ground as
described previously.
Unscrew gas tting cap plugs and connect gas supply
hoses. Gas supply hoses are customer supplied. See
Description Section 2 or Replacement Part Section 7
for part numbers.
Note: Leave Oxygen Plasma Gas cap plug attached.
DO NOT USE OXYGEN WITH PT-26 TORCH.
Install lter regulators if using shop air for any of three
process gases. (Start, Shield, Cut Gas)
Filter: 5 micron
Regulator: 5 to 125 PSI (0.35 to 8.63 bar)
ESAB P/N 30338
Note: Refer to your torch manual for
proper pressure/ow settings.
View as shipped
Start Gas
N2, CO2 or Air
Cut Gas
N2, H-35, N2-H2 or Air
Shield Gas
N2, H-35, N2-H2, or Air
