ESAB ESP-200 - 3.5 Connecting PT-26 Plasma Hand Torch

17
SECTION 3 INSTALLATION
IMPROPER GROUNDING CAN RESULT IN DEATH OR INJURY.
CHASSIS MUST BE CONNECTED TO AN APPROVED ELECTRICAL
GROUND. ENSURE SYSTEM HAS A GOOD EARTH GROUND. SEE
GROUNDING YOUR MANUAL.
BE SURE GROUND LEAD IS NOT CONNECTED TO ANY PRIMARY TERMI
NAL.
ELECTRIC SHOCK CAN KILL! DANGEROUS VOLTAGE AND CURRENT!
ANY TIME WORKING AROUND A PLASMA POWER SOURCE WITH COV
ERS REMOVED:
Disconnect power source at line (wall) disconnect.•
Have a qualied person check the output bus bars (positive and nega-•
tive) with a voltmeter.
WARNING
WARNING
3.5 Connecting PT-26 Plasma Hand Torch
3.5.1 PT-26 and ESP-200 Output Cables, Hoses and Adapters (customer supplied)
Hose and cable lengths vary depending on system.
Coolant Return (pilot arc cable inside)•
Coolant Supply (plasma current cable inside)•
Switch Lead•
Shield Gas•
Plasma Gas•
Work Cable•
SEE Description, Section 2 for part numbers.
NOTE:
Do not use the PT-26M (mechanized) on a CNC application. A plumbing box is not available (required
for CNC gas control). Torch can be mounted on a mechanized tractor. An auxiliary pilot arc ON switch is
required when using a PT-26M. See connection procedure for details.

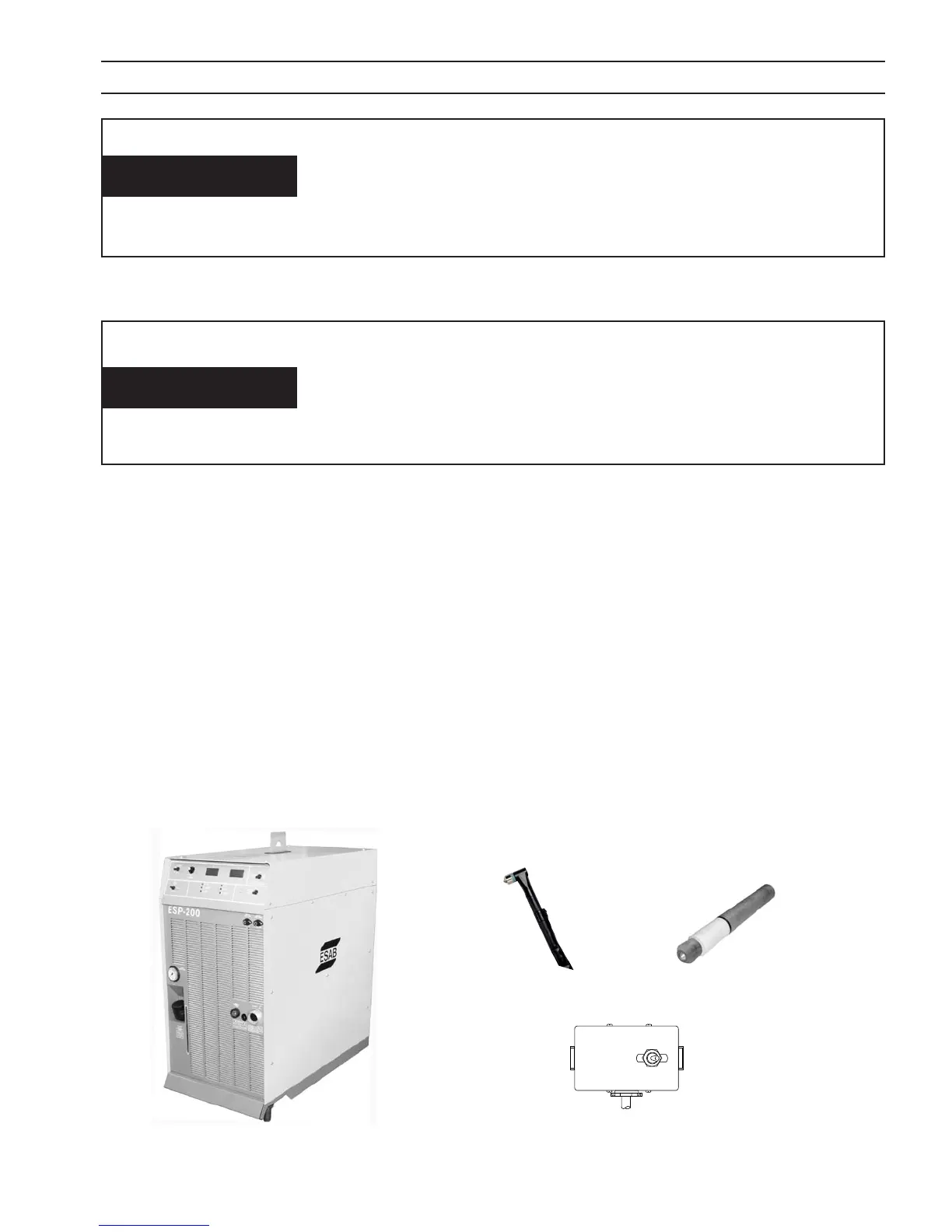

OFF
ON
ESP-200 Console
PT-26 Hand Torch
PT-26M Mechanized Torch
Hand Remote Arc ON Switch
