65

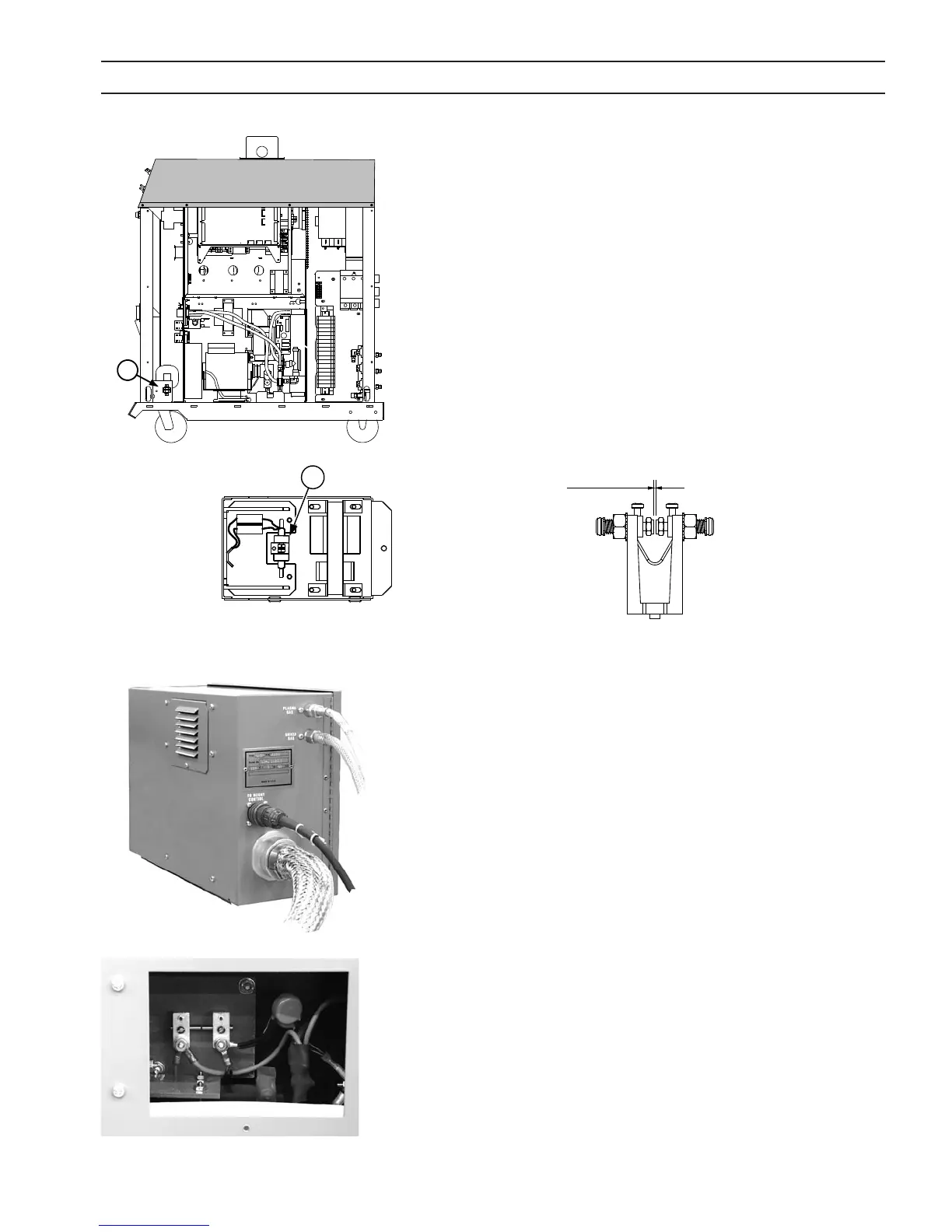

SECTION 5 MAINTENANCE
The high frequency start box is accessed by removing the right side
panel.
Note:
Do not making any adjustments to this box if using the
ESP plumbing box. The plasma starting arc originates
from the plumbing box.
Top view of console starter
box
Spark gap assembly
Set gap to 0.040” (1 mm)
Note:
If a plumbing box is included in your system, the start
box in the console is not used. The starting arc comes
from the plumbing box.
The spark gap access is on the left side, opposite the door.
Remove single screw and remove cover.
Set spark gap to 0.040 inches (1 mm).
