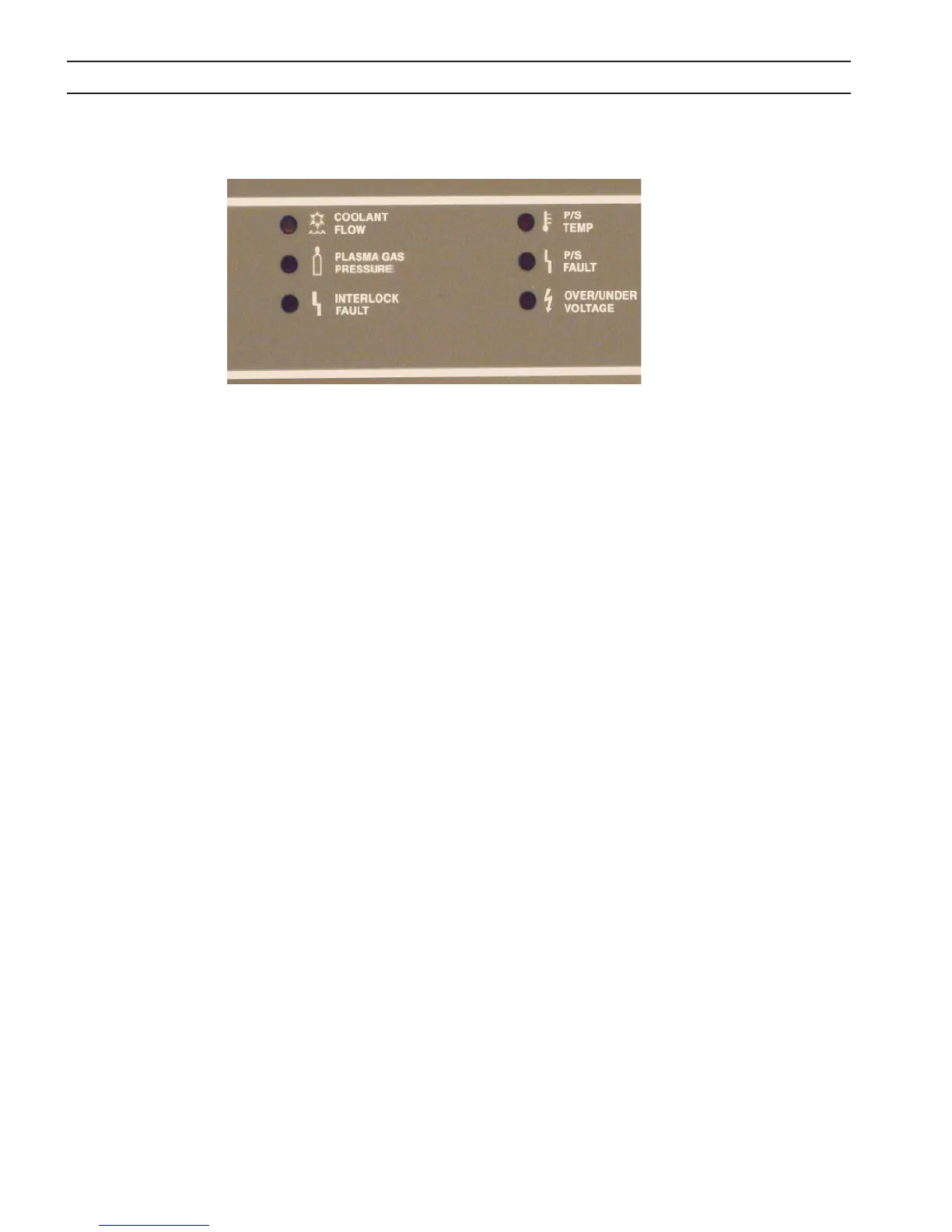

Fault Indicator Lights
Coolant Flow – Will show low coolant ow. The light will briey show a fault when console is turned •
on and then go out.
Plasma Gas Pressure -- fault indicator – low plasma gas pressure. Torch will not re when indicated.•
Interlock Fault – Indicates Remote Plumbing box door is not properly closed.•
P/S Temp – fault indicator – over temperature condition in the inverter power source.•
P/S Fault – Not used.•
Over/Under Voltage – fault indicator – input voltage is above or below the tolerances of the power •
source console. Will stay shut down console until main power switch is recycled.
SECTION 6 TROUBLESHOOTING
6.3 Front Panel Fault Lights
