SECTION 7 REPLACEMENT PARTS
Refer to Console Serial Number to determine which gauge to order. Gauges require dierent hole sizes
in front panel and are not interchangeable.
•ConsolewithserialnumberinPxxJ348xxformatrequiregaugeP/N0558004488
•AllothersuseP/N598481

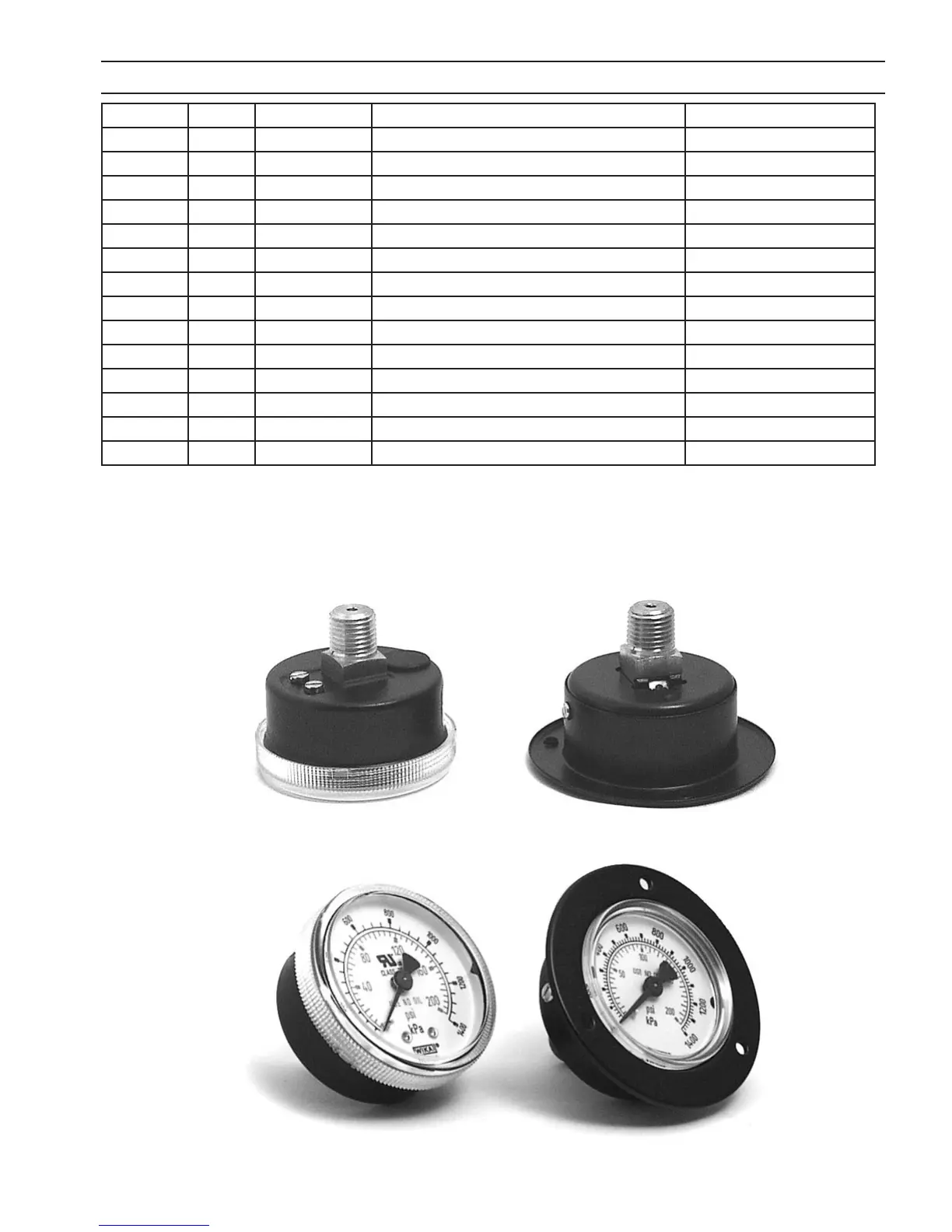

P/N 598481 P/N 0558004488
Item No Qty Part Number Description Circuit Symbol
1 1 952182 Spout –Remote Filler
2 1 See Below Gauge –200PSI
3 1 636702 Switch – Toggle DPDT 3pos 15A 125V S4
4 1 634518 Switch – Toggle DPDT 2pos 15A S2
5 1 2062018 POT 10K 2W R1
6 1 954619 Overlay 200I
7 2 951061 Meter – LED 5VDC AM1, VM1
8 2 672508 Switch – Toggle 2PST 2pos 15A S1, S3
9 2 952556 Fuse – 30A 600V F1, F2
10 1 639533 Bushing –Snap .88ID X 1.09 MH X .45L
11 1 33053 Strain Relief
1 9 5118 8 Locknut – Conduit 2 in. NPT
12 1 13733935 Panel Recpt 2-1/0 WORK
