9
6 in.
(152mm)
4 in.
(102mm)
8 in.
(203mm)
18 in.
(457mm)
16 in.
(406mm)
7.5 in.
(190mm)

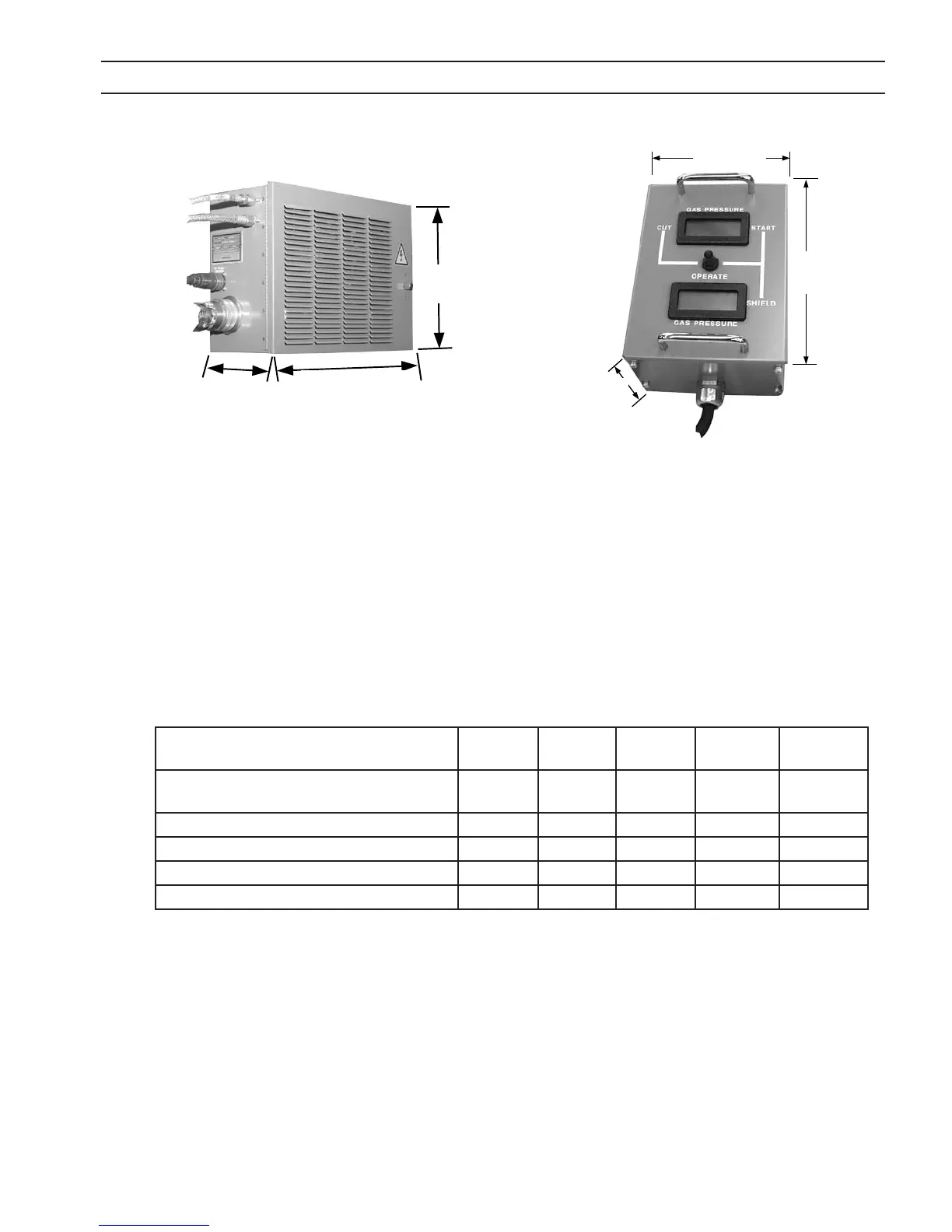

SECTION 2 DESCRIPTION
ESP Plumbing Box Weight = 38 lbs
(17kg)
Remote Setup Pendant Weight
1lb (0.9kg)
2.4 ESP-200 Options and Accessories
ESP-200 Plumbing Box ..........................................................................................................................................................P/N 22000
Remote Setup Pendant .........................................................................................................................................................P/N 37145
Water Hoses and Cables for options
25 ft.
(7.6m)
50 ft.
(15.2m)
75 ft.
(22.8m)
100 ft.
(30.4m)
150 ft.
(45.7m)
Cooling Water Hoses, console to
plumbing box (2 required)
33132 33133 33134 33135 33136
Control Cable, plumbing box to console 22264 22265 22266 22267 22268
Pilot Arc Lead, plumbing box to console 33303 33304 33305 33306 33307
Power Lead, console to plumbing box 22001 22002 22003 22004 22005
Pendant Control Cable 37293 37294 37295 37296 37297
Torch Coolant – 1gallon (3.8 L) (4 required) ........................................................................................................................ 156F05
