ESAB FABRICATOR 252i

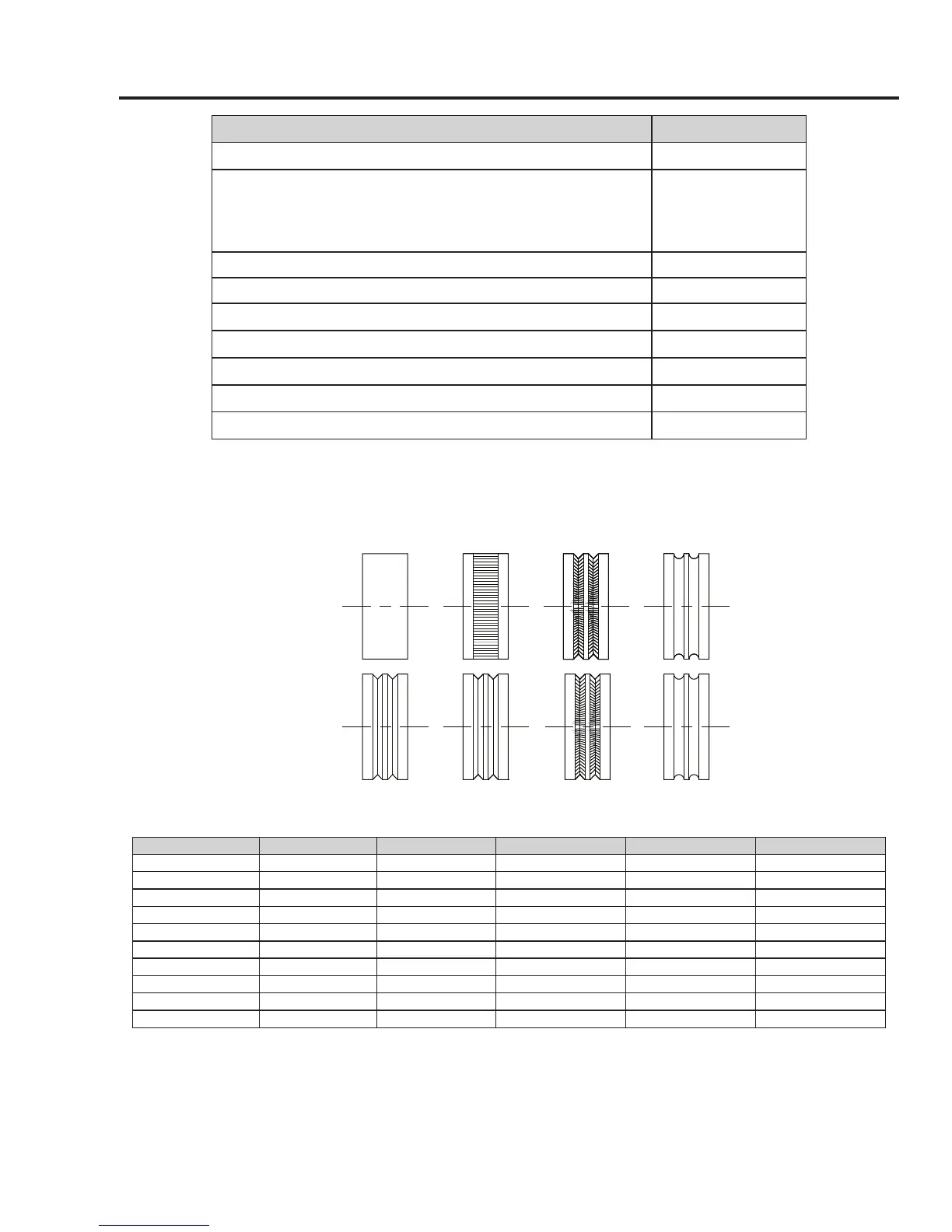

Manual 0-5423 A-1 APPENDIX
APPENDIX 1: OPTIONS AND ACCESSORIES
Description Part Number
ESAB Fusion 250A MIG Gun, 15ft 1023-1097
26 TIG torch 12.5ft (3.8m); accessory kit with 1/16”, 3/32”, 1/8”
thoriated tungstens with collets, collet bodies No.5,6,7 Alumina
Nozzle - Gas Hose 9” (230mm) long with 5/8” 18 UNF male
fitting, Torch switch & remote current control with 8 pin plug
W4013600
Gas Hose,12.5ft,Male 5/8-18UNF W4013900
Roll Cage, 252i W4015101
Large HD Cart,Single Cylinder,211i-252i W4015001
Large HD Cart, Dual Cylinder, 211i-252i W4015002
Basic Utility Cart, Single Cylinder, 211i-252i W4014700
Adapter Cable for Miller® Spool Gun SG200M30AJC
Accessory Kit P062900010
Table A-1: Options and Accessories
Top
Drive
Roll
Bottom
Drive
Roll
HARD
.023”, .035”
FLUX
CORED
.030”, .035”
FLUX
CORED
.045”, 1/16”
SOFT
.035”, 3/64”
Art # A-10669
Figure A-1: Drive Roll Chart
Wire Size Wire Type Top Drive Roll Bottom Drive Roll Inlet Guide Outlet Guide
.023" (0.6mm) Hard 407002-001 407002-002 375407-001 W6000803
.030" (0.8mm) Hard 407002-001 407002-009 375407-001 W6000804
.035" (0.9mm) Hard 407002-001 407002-009 375407-001 W6000804
.045" (1.2mm) Hard 407002-001 407002-009 375407-001 W6000804
.030" (0.8mm) Flux Cored 375832 407002-009 375407-001 W6000804
.035" (0.9mm) Flux Cored 375832 407002-009 375407-001 W6000804
.045" (1.2mm) Flux Cored 170924-010 170924-010 375407-001 W6000804
1/16" (1.6mm) Flux Cored 170924-001 170924-001 375407-001 W6000805
.035" (0.9mm) Soft 408023-001 408023-001 375647 W6000804
3/64" (1.2mm) Soft 408023-002 408023-002 375647 W6000804
Table A-2: Wire, Drive Roll and Guide Recommended Combinations
