SECTION 6 REPLACEMENT PARTS
41

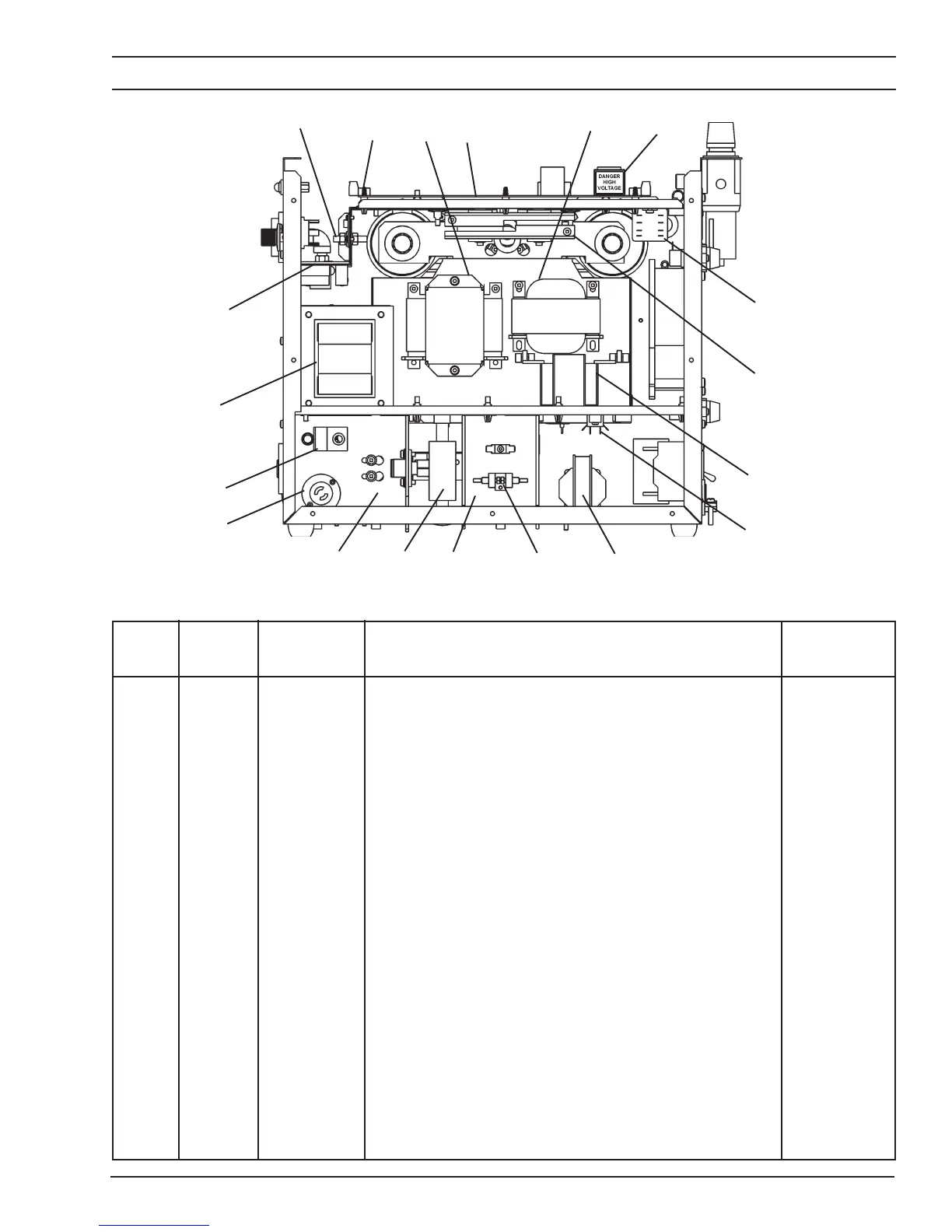

Fig. 6-4. PCM-875 Power Source, Right Side View (208/230)
Item Qty. Part Circuit
No. Req. No. Description Symbol
80 1 35940 CONTROL TRANSFORMER ASS'Y T2
81 1 951962 RESISTOR ASS'Y PILOT ARC R11
82 1 952577 RELAY 25 A 120 VAC K1
83 2 952557 CAPACITOR .82µf 630 VDC (See Wiring) C21, 22
84 2 17130310 RESISTOR, 10K OHM 1W (See Wiring) R12, 13
85 1 23604891 LABEL WARNING HI VOLTAGE RED
86 1 952232 INDUCTOR PFC L2
87 1 38108 CONTROL BOARD ASS'Y PCB1
88 1 36586 MAIN TRANSFORMER ASS'Y PCB4
89 2 951469 CAPACITOR .022µf 250 VAC (See Wiring) C17, 18
90 1 31488 SHUNT BOARD ASS'Y PCB4
91 1 951515 CAPACITOR .047µf 660 VAC C23
92 1 38039 START UP BOARD ASS'Y PCB5
93 1 952233 INDUCTOR OUTPUT L1
94 1 36721 BUSBAR OUTPUT
95 1 182W64 LOCK TWIST MIDGET J1
96 1 36717 BRACKET OUTPUT
97 1 32969 REACTOR ASS'Y HI FREQ. T3
98 1 36431 SPARK GAP ASS'Y SG
99 2 951342 CAPACITOR 2500pf 15 K V C13, 14
100 1 951179 TRANSFORMER HI VOLTAGE T5
101 1 950487 TERM. BLOCK 2 POS 20 A TB1
102 2 672348 CAPACITOR .01µf 1KV (See wiring) C11, 12
103 1 952204 CAPACITOR .01µf 250 VAC (See wiring) C9
104 1 36718 BOX HI FREQ.
95
94
93
92
90, 91
89 88
87
86
85
82, 83, 84
81
80
101, 102, 103
96
97
104 98, 99
100
