SECTION 6 REPLACEMENT PARTS
42
Item Qty. Part Circuit
No. Req. No. Description Symbol
110 1 32914 CONTROL TRANSFORMER ASS'Y T2
111 1 951962 RESISTOR ASS'Y PILOT ARC R11
112 1 952577 RELAY 25 A 120 VAC K1
113 2 952557 CAPACITOR .82µf 630 VDC (See wiring) C21, 22
114 2 17130310 RESISTOR 10 K OHM 1 W (See wiring) R12, 13
115 1 23604891 LABEL WARNING HI VOLTAGE RED
116 1 38109 CONTROL BOARD ASS'Y PCB1
117 1 36586 MAIN TRANSFORMER ASS'Y (400/400CE/460 V) T1
1 36599 MAIN TRANSFORMER ASS'Y (575 V) T1
118 2 951469 CAPACITOR .022µf 250 VAC (See wiring) C17, 18
119 1 31488 SHUNT BOARD ASS'Y PCB4
120 1 951515 CAPACITOR .047µf 660 VAC C23
121 1 38039 START UP BOARD ASS'Y PCB5
122 1 952233 INDUCTOR OUTPUT L1
123 1 36721 BUSBAR OUTPUT
124 1 182W64 LOCK TWIST MIDJET J1
125 1 36717 BRACKET OUTPUT KYDEX
126 1 32969 REACTOR ASS'Y HI FREQ. T3
127 1 36431 SPARK GAP ASS'Y SG
128 2 951342 CAPACITOR 2500pf 15 K V C13, 14
129 1 951179 TRANSFORMER HI VOLTAGE T5
130 1 950487 TERM. BLOCK 2 POS 20 A TB1
131 2 672348 CAPACITOR .01µf 1KV (See wiring) C11, 12
132 1 952204 CAPACITOR .01µf 250 VAC (See wiring) C9
133 1 952213 REACTOR 3PH LINE 12 A L2
134 1 36718 BOX HI FREQ

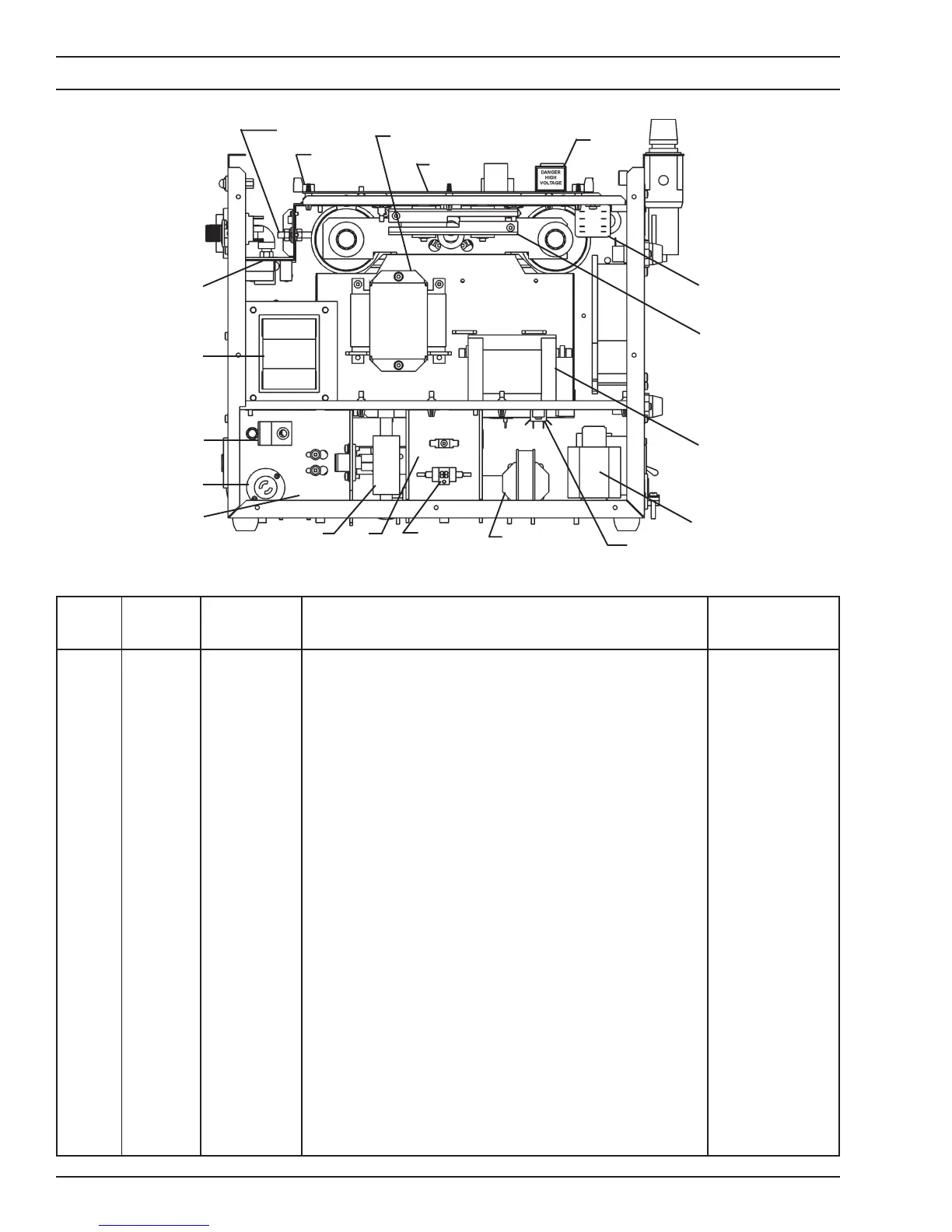

Fig. 6-5. PCM-875 Power Source, Right Side View (400/400CE/460/575 V)
119, 120
118
117
116
115
112, 113, 114
111
110
133
130, 131, 132
129
127, 128
126
125
124
123
122
121
134
