SECTION 6 REPLACEMENT PARTS
43
Item Qty. Part Circuit
No. Req. No. Description Symbol
140 1 954673 LABEL CNC INTERFACE
141 1 952026 TERM. BLOCK 7 POS 25 A TB4
142 2 17240310 RESISTOR 10 K 25 W R2, 15
143 1 951182 FAN AC AXIAL M1
144 1 2091558 LABEL GROUND BLACK
145 1 954700 LABEL INPUT (208/230 V)
1 954681 LABEL INPUT (400/460 V)

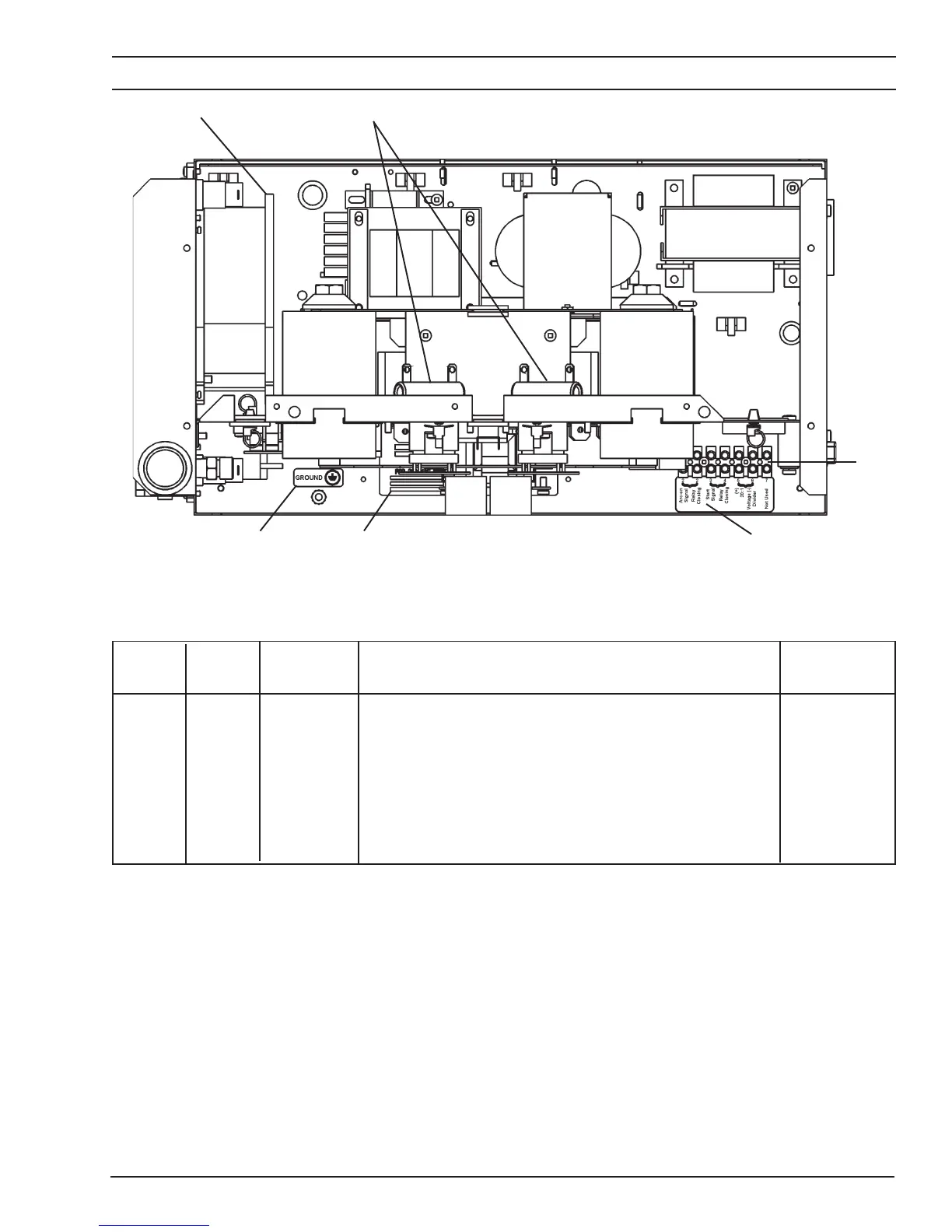

Fig. 6-6. PCM-875 Power Source, Top View with PCB1 and Shelf Removed
143
142
141
140
145144
To Next Page
