ESAB PCM-875 - Page 45

SECTION 6 REPLACEMENT PARTS
44
Item Qty. Part Circuit
No. Req. No. Description Symbol
151 1 21710 FILTER REGULATOR
152 1 10Z30 ADAPTOR B/A-WM x 1/4 NPTM
153 2 951575 HANDLE
154 1 36719YL TOP COVER YEL (ESAB)
155 1 2091514 LABEL WARNING
156 1 954290 LABEL WARNING
157 1 954666 LABEL RATING PCM-875 208/230
1 954667 LABEL RATING PCM-875 400/460
1 954668 LABEL RATING PCM-875 575
1 954669 LABEL RATING PCM-875 400CE
158 2 952136 FUSE HOLDER
159 1 952137 FUSE 15 A FAST ACTING F2
160 1 97W63 STRAIN RELIEF
161 1 36823 INPUT POWER CABLE, 10 FT 4-COND. 6AWG (208/230 V)
1 35587 INPUT POWER CABLE, 10 FT 4-COND. 10AWG (400/460/575 V)
1 35582 INPUT POWER CABLE, 10 FT 4-COND. 4 x 4 MM (400 V CE)
162 1 951801 CIRCUIT BREAKER 3P 70 A 250 VAC (208/230 V) CB1
1 951181 CIRCUIT BREAKER 3P 30 A 480 VAC (400/460 V) CB1
1 952046 SWITCH POWER TOGGLE 3PST (575 V) S3
163 1 952559 FUSE 3A FAST ACTING F1

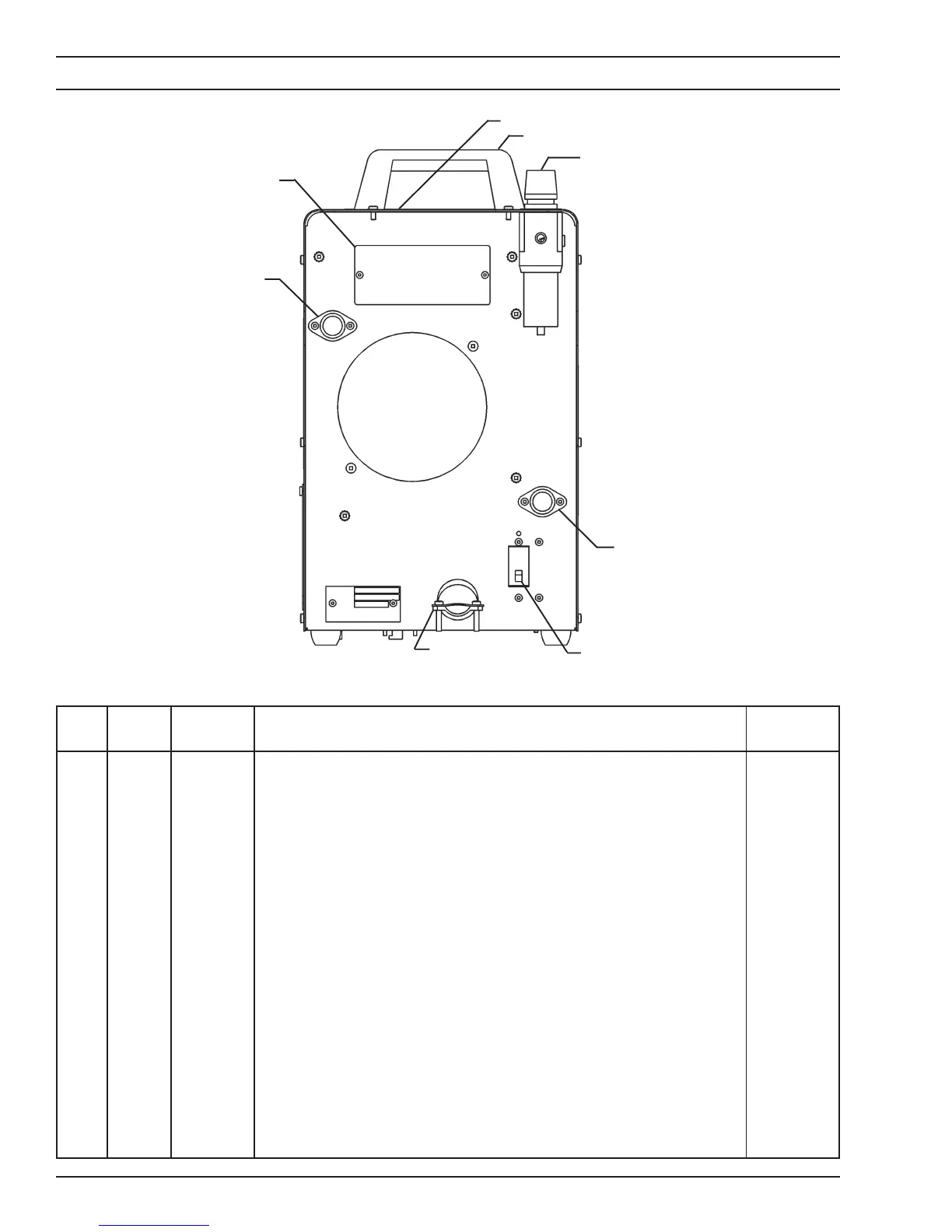

Fig. 6-7. PCM-875 Power Source, Rear View
154, 155, 156
153
151, 152
157
158, 159
160, 161
162
158, 163
