ESAB PT-27 - Pilot Arc Lead and Insulation

11
SECTION 3 MAINTENANCE
3.5 PILOT ARC LEAD CONNECTION AND STRIP INSULATION
(Refer to Figure 3-4)
SLIDE INSULATOR ONTO LEAD.
ATTACH KNIFE CONNECTIONS
INSULATOR
CENTER INSULATOR
OVER CONNECTION
TAPE LEADS TO INSULATOR.
1
2
3
FOLD BACK LEADS BY
TURNING THE INSULA-
TOR END FOR END.
4
A. PILOT ARC LEAD CONNECTION DETAIL
POWER CABLE CONNECTION
STRIP INSULATOR
P/N 21510
PLACE THE INSULATOR
BETWEEN THE POWER
CABLE CONNECTION AND
THE BLACK PILOT ARC
LEAD. TAPE IN PLACE AS
ILLUSTRATED.
VINYL TAPE EACH END
BLACK WIRE LEAD
B. STRIP INSULATION DETAIL

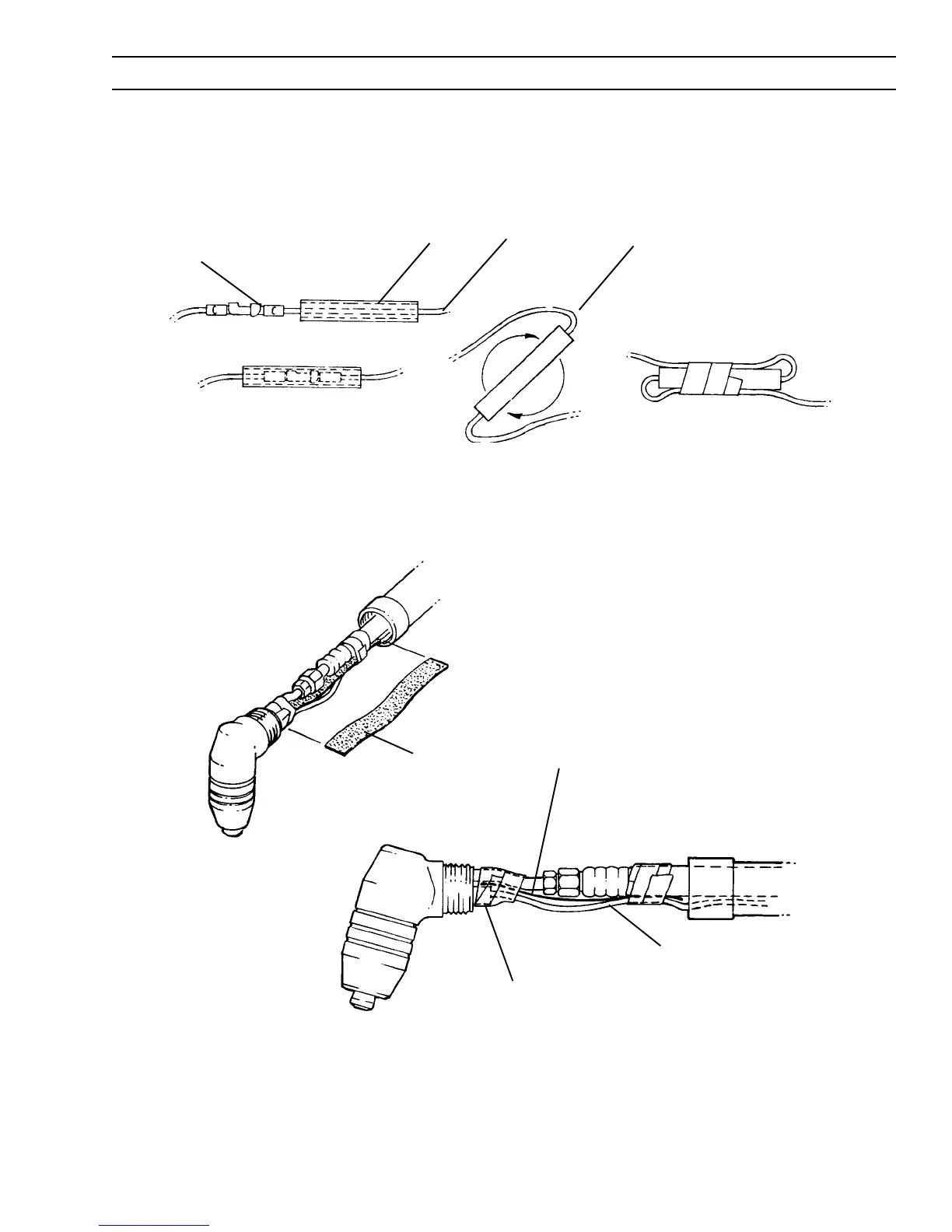

Figure 3-4. Assembling Pilot Arc Connection and Strip Insulator
PILOT ARC
WIRE LEAD
