ESAB PT-27 - Optional Equipment and Spare Parts

5
SECTION 1 DESCRIPTION

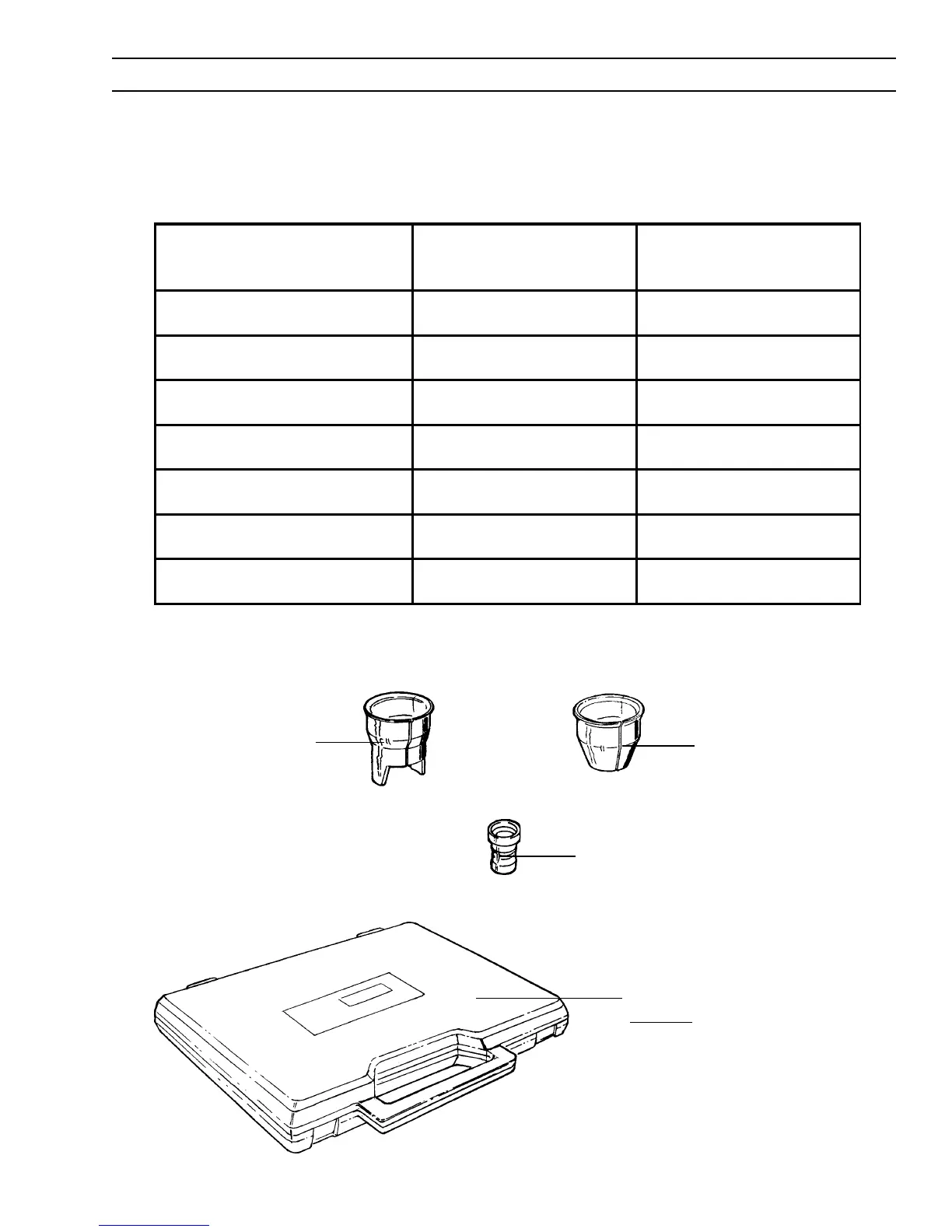

PLASMA GUIDE KIT - P/N 604607
consists of:
circle guide adapter/bushing
roller guide radius bar
pivot pin suction pivot
magnetic pivot operator's manual
PLAIN TYPE
P/N 35443
GOUGING NOZZLE
P/N 35442
STAND OFF GUIDE TYPE
P/N 21420
1.4 OPTIONAL EQUIPMENT (NOT SUPPLIED WITH TORCH)
A. Spare Parts Kits - The spare parts kits listed in figure 1-4 are recommended for maintaining the PT-27 torch
with minimum downtime.
Figure 1-4. Contents of PT-27 Spare Parts Kits
B. Steel Guards (for extending the life of the heat shield) - Refer to Figure 3-2 for installation and operation.
C. Gouging Nozzle
D. Plasma Guide Kit
DESCRIPTION
PART NUMBER
(50/70 A Kit - P/N 21623)
PART NUMBER
(80 A Kit - P/N 21624)
Heat Shield 21616 (QTY 2) 21616 (QTY 2)
Stand Off Guide 21420 (QTY 1) 21420 (QTY 1)
Nozzle, 50-70 A 33369 (QTY 4) --
Nozzle, 80 A -- 33418 (QTY 4)
Swirl Baffle 33367 (QTY 1) 33367 (QTY 1)
Electrode 33366XL (QTY 3) 33366XL (QTY 3)
Fuse, 600 Vdc, 15 A, Fast Acting 952137 (QTY 1) 952137 (QTY 1)
