6
2.1 GENERAL
Make sure power switch on console is in the
"OFF" position and primary input power is
deenergized.
2.2 ASSEMBLY

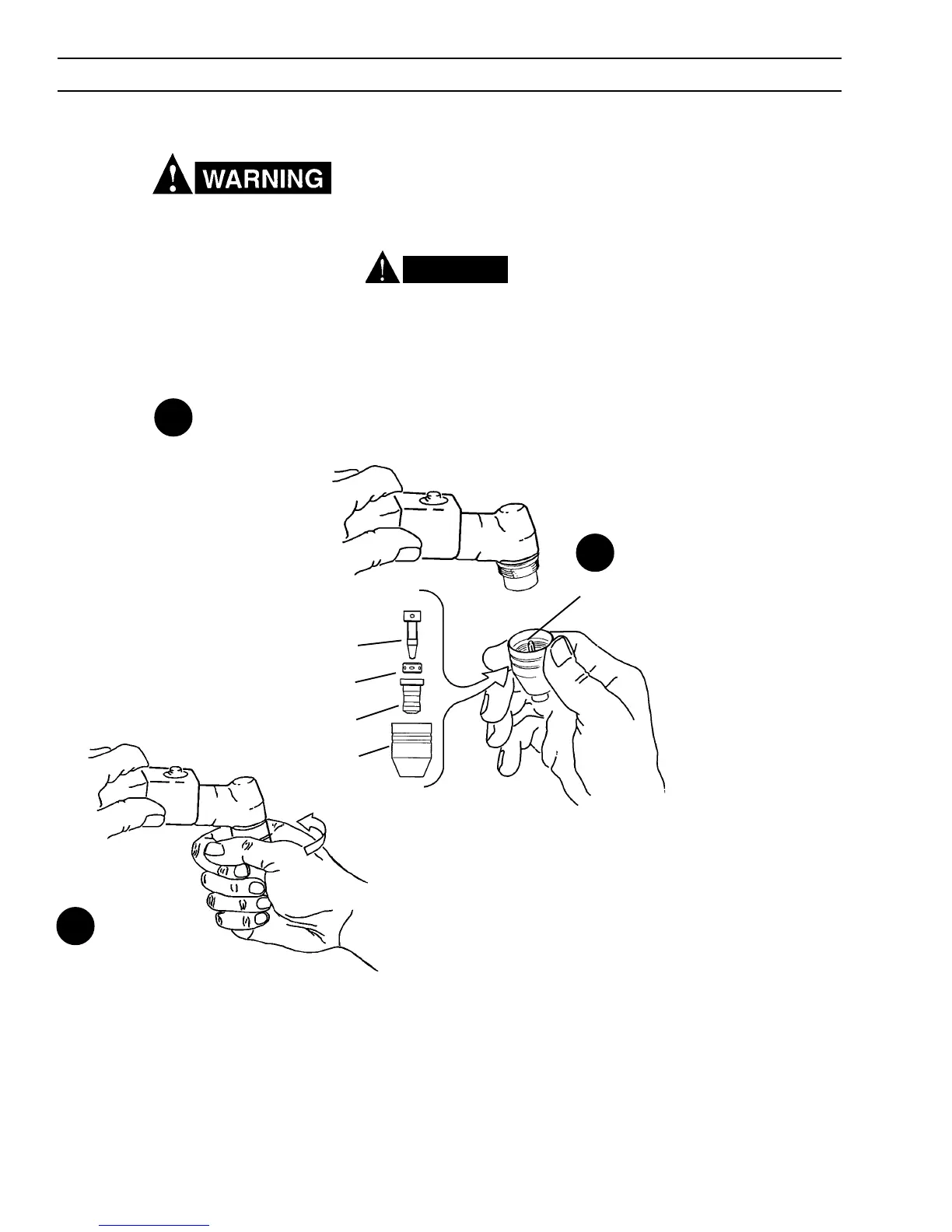

Install PT-27 front end parts as shown in Figure 2-1.
The torch head contains a gas flow check valve that acts in conjunction with circuitry within the power
source. This system prevents the torch from being energized with high voltage if the torch switch is acci-
dentally closed when the shield is removed. ALWAYS REPLACE TORCH WITH THE PROPER TORCH MANU-
FACTURED BY ESAB SINCE IT ALONE CONTAINS ESAB'S PATENTED SAFETY INTERLOCK.
!
WARNING
ELECTRODE
SWIRL BAFFLE
NOZZLE
SHIELD
THREAD THIS ASSEMBLY TO THE
TORCH BODY AND HAND TIGHTEN.
2
3
IMPORTANT!
MAKE SHIELD VERY TIGHT!
PLACE THE NOZZLE, SWIRL
BAFFLE, AND ELECTRODE INTO
THE SHIELD
1
Figure 2-1. Assembly of PT-27 Torch Front End Parts
SECTION 2 ASSEMBLY AND OPERATION
