14
SECTION 4 REPLACEMENT PARTS
FLEX SUPPORT - 21218
SPLICES (2) (SUPPLIED WITH
SWITCH)
SWITCH - 18224
SWITCH BAND - 33400
INSULATOR - 21510
(SUPPLIED WITH
HEAD)
SHIELD -
21616
NOZZLE
30 AMP - 33368
*50-70 AMP - 33369
80 AMP - 33418
GOUGING - 35442
SWIRL BAFFLE - 33367
ELECTRODE - 33366XL
O-RING - 85W51
(SUPPLIED WITH HEAD)
SHEATH
25 FT (7.6 m) - 18320
50 FT (15.2 m) - 19026
INSULATOR-
33415
(SUPPLIED
WITH HEAD)
KNIFE CONNECTIONS -
98W40 (2 SUPPLIED
WITH HEAD)
BOOT - 49N83
GAS & POWER
5/8 - 18 L.H.
HANDLE -
33399
PT-27 TORCH
PILOT ARC PLUG-21427 (SUPPLIED
ON TORCH ASSEMBLIES 21620 AND
21621 - SEE FIGURE 3-5 B)
STRAIN RELIEF
- 18226
POWER CABLE
25 FT (7.6 m) - 19995
50 FT (15.2 m) - 19996
SWITCH PLUG
- 2062336 (SEE
FIGURE 3-5 A)
75° HEAD - 21610
INCLUDES:
INSULATOR - 21510
INSULATOR - 33415
KNIFE CONNECT - 98W40
O-RING - 85W51
SEAT - 0558003032
FOR SERVICE WITH CONSOLES WITH
PILOT ARC RECEPTACLES

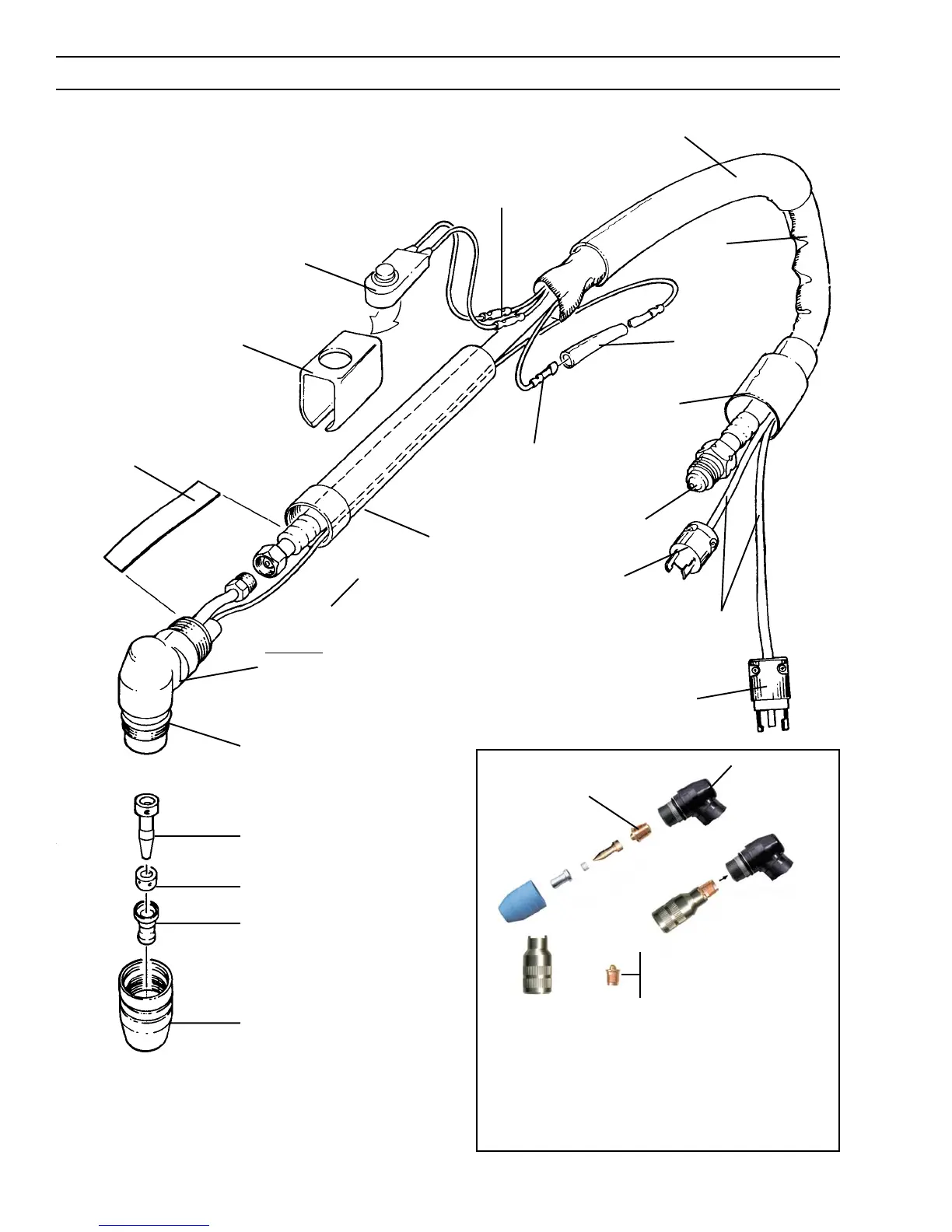

Figure 4-1. PT-27 Torch Assembly Replacement Parts
*REPLACEMENT TORCHES ARE
SUPPLIED WITH 50 AMP NOZ-
ZLES.
REPLACEABLE
SEAT - 0558003032
THE SEAT IS REMOVED AND REPLACED USING THE
ESAB SEAT TOOL. (REFER TO FIGURE 3-2)
ALL TORCH ASSEMBLIES AND REPLACEMENT
HEADS ARE SUPPLIED WITH THE SEAT INSTALLED.
New Improved
Seat Design
No. 0558003032
Seat Installation Tool
No. 0558003027
