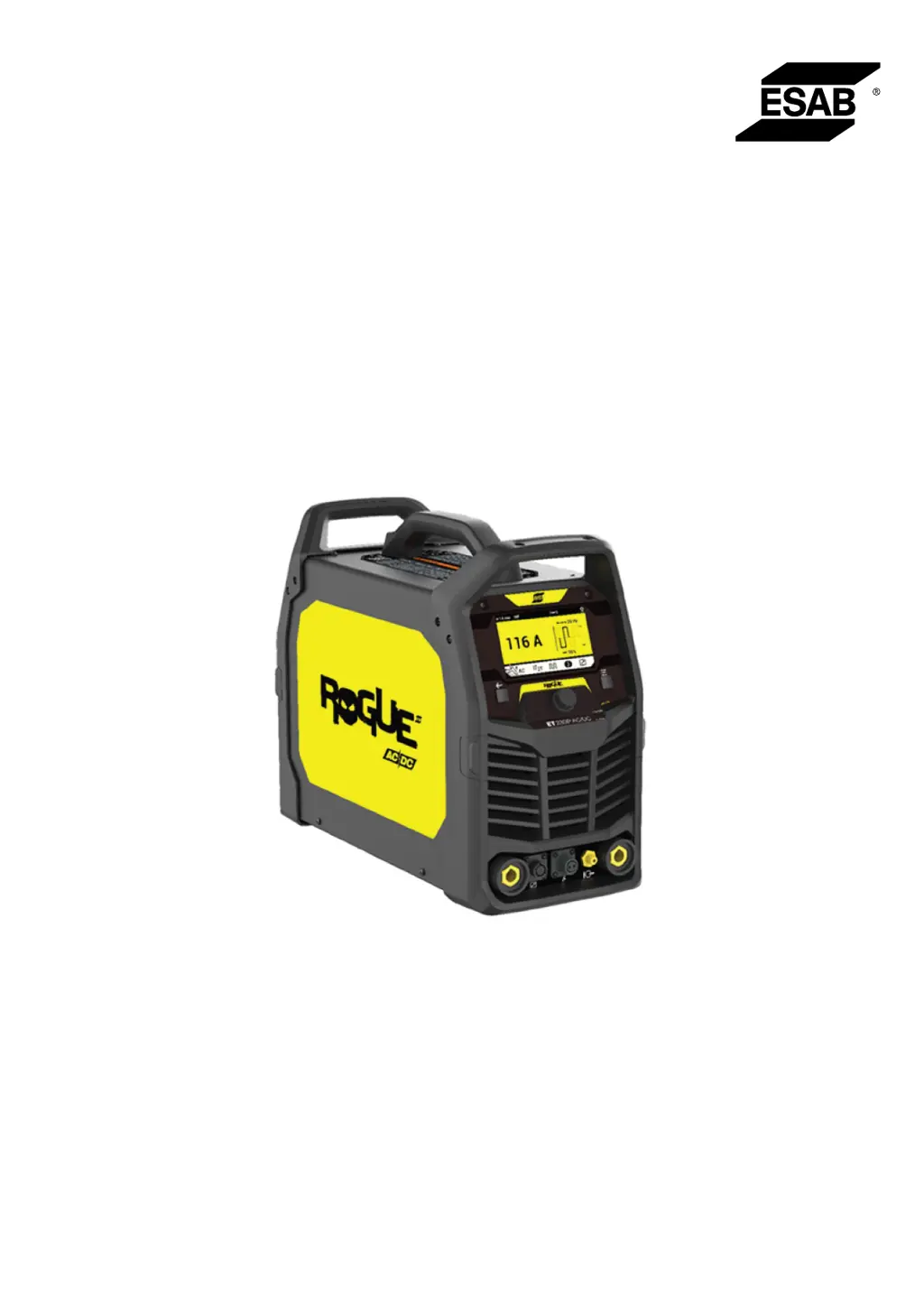

Rogue ET 230iP AC/DC power
source
Instruction manual
0700 500 209 GB 20240321
Valid for: HA336YY-XXXXXX

Table of Contents

Questions and Answers

  • T
    Tracy FigueroaAug 13, 2025
    Why is there porosity within the weld metal when using my ESAB Welding System?
    • G
      gnewmanAug 13, 2025
      Porosity in the weld metal can occur due to several reasons: * The gas bottle might be empty. * The gas regulator might be closed. * There might be leaks or blockages in the gas inlet hose. * The wrong gas might be connected, or the gas flow might be incorrect. * The distance between the MIG torch nozzle and the work piece might be too large. * Drafts might be dispersing the shielding gas. * The work piece might not be clean, with oil or grease on the surface. Ensure the work piece is clean.
  • S
    Steven JacobsAug 16, 2025
    What to do if my ESAB Rogue ET 230iP Welding System has no arc?
    • A
      Adrian TaylorAug 17, 2025
      If there is no arc, check that the display is on to verify that the power source has power. Also, check that the setting panel displays correct values. Ensure that the mains power supply switch is turned on and that the mains, welding, and return cables are correctly connected. Finally, inspect the mains power supply fuses.
  • N
    Nancy MartinezAug 20, 2025
    How to troubleshoot basic MMA welding problems with my ESAB Welding System?
    • L
      Laura HooperAug 20, 2025
      To troubleshoot basic MMA welding problems, check that the welding and return cables are correctly connected on the power source. Make sure the return clamp has proper contact with the work piece. Verify that you are using the correct electrodes and polarity (check the electrode packaging for polarity). Ensure that the correct current value is set. You may also need to adjust the Arc Force and Hot start settings.
  • W
    William RodriguezAug 25, 2025
    How to troubleshoot TIG welding problems with my ESAB Rogue ET 230iP?
    • T
      Thomas GentryAug 26, 2025
      To troubleshoot TIG welding problems, check that the welding and return cables are correctly connected to the power source. Ensure the return clamp has proper contact with the work piece. Verify that the TIG torch lead is connected to the negative welding terminal. Make sure you are using the correct shielding gas, gas flow, welding current, filler rod placement, electrode diameter, and welding mode on the power source. Finally, ensure that the gas valve on the TIG torch is on.
  • K
    Karen BassAug 28, 2025
    What to do if the thermal protection trips frequently on my ESAB Rogue ET 230iP Welding System?
    • M
      Mason TurnerAug 28, 2025
      If the thermal protection trips frequently, ensure that you have not exceeded the recommended duty cycle for the weld current. Also, check that the air inlets or outlets are not clogged. Clean the inside of the machine according to the routine maintenance procedures.
  • R
    Ryan MartinSep 1, 2025
    What to do if the welding current is interrupted during welding with my ESAB Rogue ET 230iP Welding System?
    • C
      colemansarahSep 1, 2025
      If the welding current is interrupted during welding, check whether the overheating light (thermal protection) on the setting panel is on. Also, refer to the troubleshooting steps for a 'No Arc' fault.
  • U
    uleeSep 5, 2025
    What causes leakage at the weld tool of my ESAB Welding System?
    • O
      olivia94Sep 5, 2025
      Leakage at the weld tool can be caused by an incorrectly located or damaged O-ring at the back end of the tool. Check the O-ring to ensure it is correctly positioned and not damaged.
  • B
    Bryan GarciaSep 9, 2025
    What causes leakage from the hoses of my ESAB Rogue ET 230iP Welding System?
    • M
      Michael HurleySep 9, 2025
      Leakage from the hoses can be caused by hose clamps that are not properly tightened or by damaged hoses. Check that the hose clamps are properly tightened and that the hoses are not damaged.

Summary

Safety Precautions and Warnings

Meaning of Symbols

Explains the meaning of various symbols used in the manual.

General Safety Precautions

Outlines general safety rules for users and the work environment.

Electrical and Health Hazards

Details hazards like electric shock, EMF, fumes, arc rays, and noise during operation.

Operational and Equipment Safety

Covers safety for moving parts, fire, hot surfaces, malfunctions, and product use.

Introduction to the Power Source

Product Equipment Overview

Lists the components included in the welding power source package.

Technical Data and Specifications

Electrical and Performance Specifications

Provides detailed technical data on voltage, current, power, and temperature.

Safety and Environmental Ratings

Details insulation, enclosure, and application classes, plus mains supply info.

Eco Design Compliance Information

Outlines the equipment's compliance with eco design directives.

Installation and Setup Guide

Location and Lifting Procedures

Instructions on positioning the unit and safe lifting methods.

Mains Supply and Cable Requirements

Details mains connection, fuse sizes, and recommended cable specifications.

Connecting Power Source and Cooling Unit

Step-by-step guide for physically connecting the power source to a cooler.

Operating the Welding Power Source

Connections and Control Devices

Identifies and explains the various connection terminals and control elements.

Powering Up and Basic Functions

Covers turning the unit on/off, fan control, thermal protection, and VRD.

User Interface and Screen Navigation

Explains the display, control panel, and navigation through different screens.

Welding Modes and Settings

Details MMA welding process, electrode types, hot start, and arc force adjustments.

Advanced TIG Welding Features

Covers TIG welding methods like Lift Arc, HF start, and various parameters.

Trigger Modes and Foot Pedal Operation

Explains 2-stroke, 4-stroke, 4T2, and foot pedal control functions.

Maintenance and Cleaning

Routine Maintenance Schedule

Provides a schedule for regular checks and cleaning intervals.

Cleaning Procedures

Details how to clean the welding power source for optimal performance.

Troubleshooting Common Issues

Common Welding Faults and Solutions

Lists typical MMA and TIG welding problems and their corrective actions.

Gas and Cooling System Issues

Addresses porosity and leakage problems related to gas and cooling systems.

Error Code Reference

Handling Equipment Errors

Explains how to interpret and address common error codes displayed by the unit.

Ordering Spare Parts and Manuals

How to Order Spare Parts

Guides users on ordering replacement parts and wear items.

Appendix and Product Information

Block Diagram

Presents a schematic diagram of the internal components and connections.

Ordering Information

Lists product ordering numbers for the power source, manual, and parts.

Available Accessories

Lists optional accessories that can be purchased for the welding power source.

ESAB Rogue ET 230iP Specifications

General IconGeneral
Input Voltage230 V
Wire Feed Speed Range2 - 12 m/min
Wire Diameter Range0.6 - 1.0 mm
Protection ClassIP23S
Output Current Range10 A - 230 A
Duty Cycle60%
Weight18.5 lbs
Dimensions400 x 160 x 290 mm
ProcessMMA, TIG, MIG/MAG
Welding ProcessesMMA, TIG, MIG/MAG
Input PhaseSingle Phase
