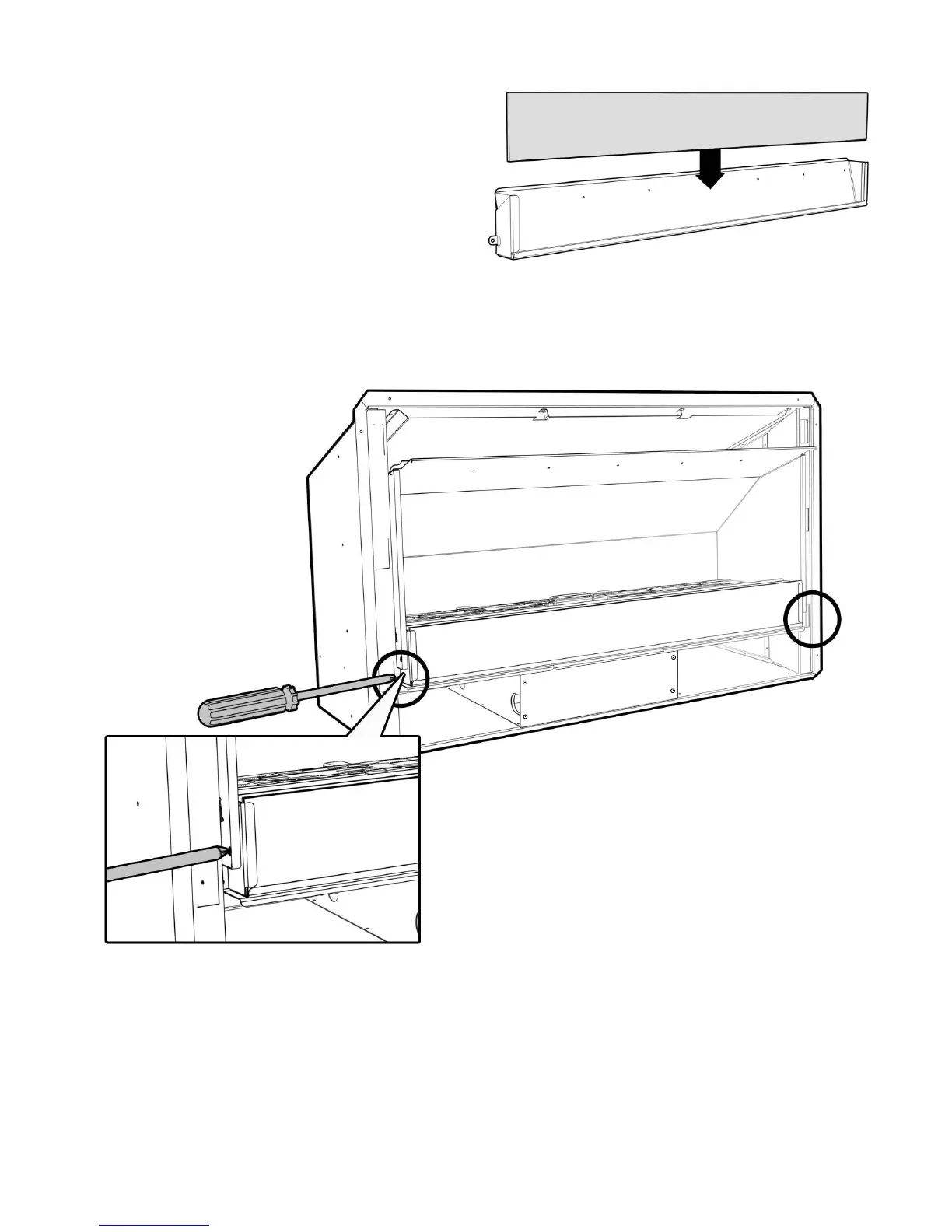

14.0 Assembly of stone cartridge:
The glass which fits inside in the stone
Cartridge has been packaged to protect it
during transit, and can be found inside the
firebox. Insert the glass strip into the stone
cartridge as shown to the right, between
the two metal flanges and push it all the
way to the bottom. A bag of pebbles
(River Stones) are also supplied, use
these to fill the stone cartridge.
14.1 With the glass in position, fix the stone cartridge to the fire by using the two supplied screws
in the location shown below. Do this before the fascia is fitted.
