Escea EF5000 - Removing the Fascia

630298_3 EF5000 Installation Guide - US
Ideal Cavity Dimensions
A B C
39
13
/
16
“ 23” 13“
3.0 Creating the Cavity:

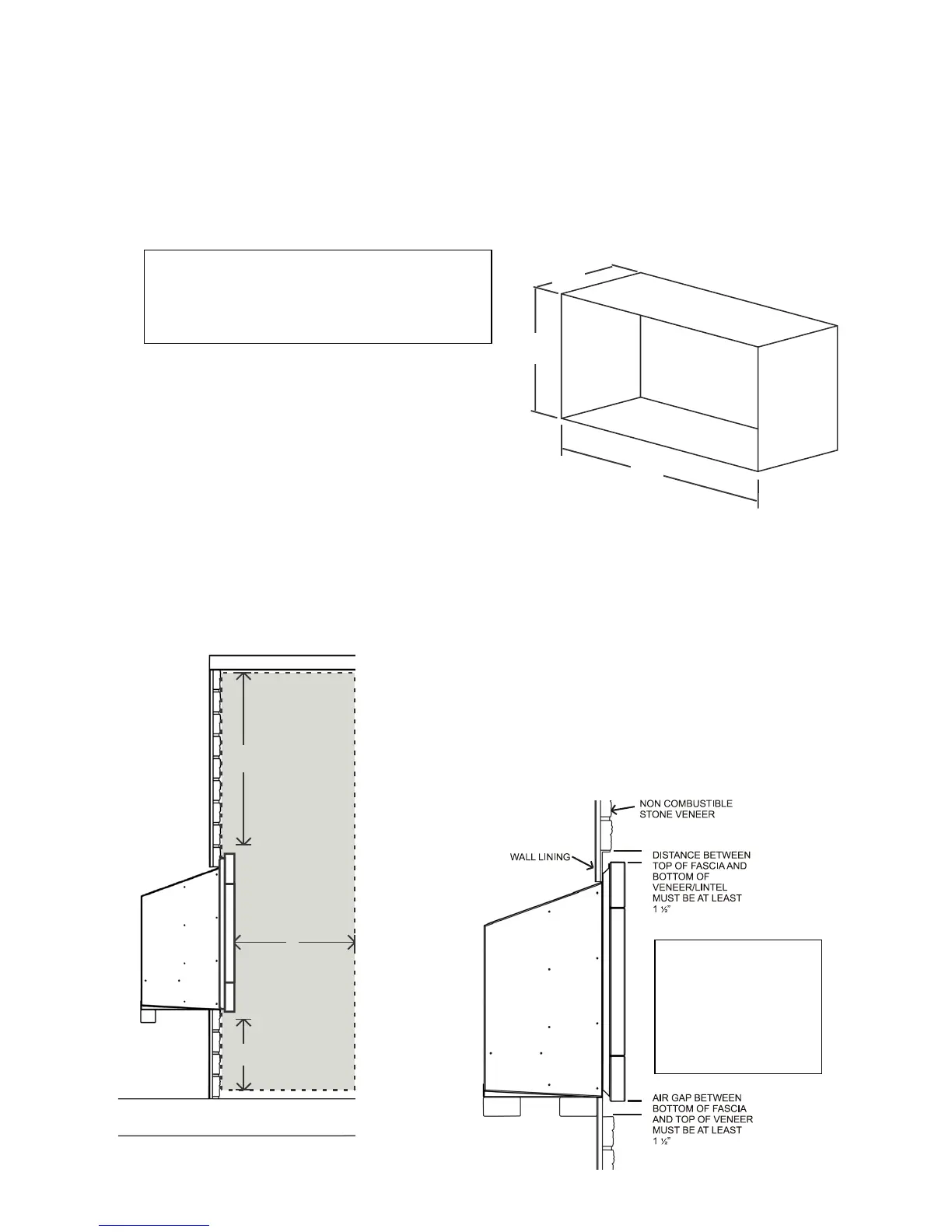

The dimensioned drawing below shows the size of opening that must be created to install
the unit.
4.0 Cavity Dimensions:
4.1 Where possible, it is recommended that the cavity is made slightly larger than the above
dimensions to give the installer the maximum amount of space to work in.
4.2 Clearances to combustibles:
Unscrew the battery panel on the
bottom of the fascia to access the batteries
A
B
B
A
C
Minimum clearance distance between a combustible
ceiling and fascia to be no less than 4’6”
Warning: Under no circumstances should any object such
as people, pets, furniture, etc. be closer than 3 feet in
front of the Escea EF5000.
Note: The 1 ½”
clearance is also
required on the
sides of the fascia
to allow access to
the control panel.
SIDE VIEW
CEILING
WALL
4'6’’ Minimum
3’
1 ” Minimum1/2
Warning: Do not install a TV above
this fire under any circumstances.
