Hardware-Installation
2. Hardware-Installation
2.1 Connections

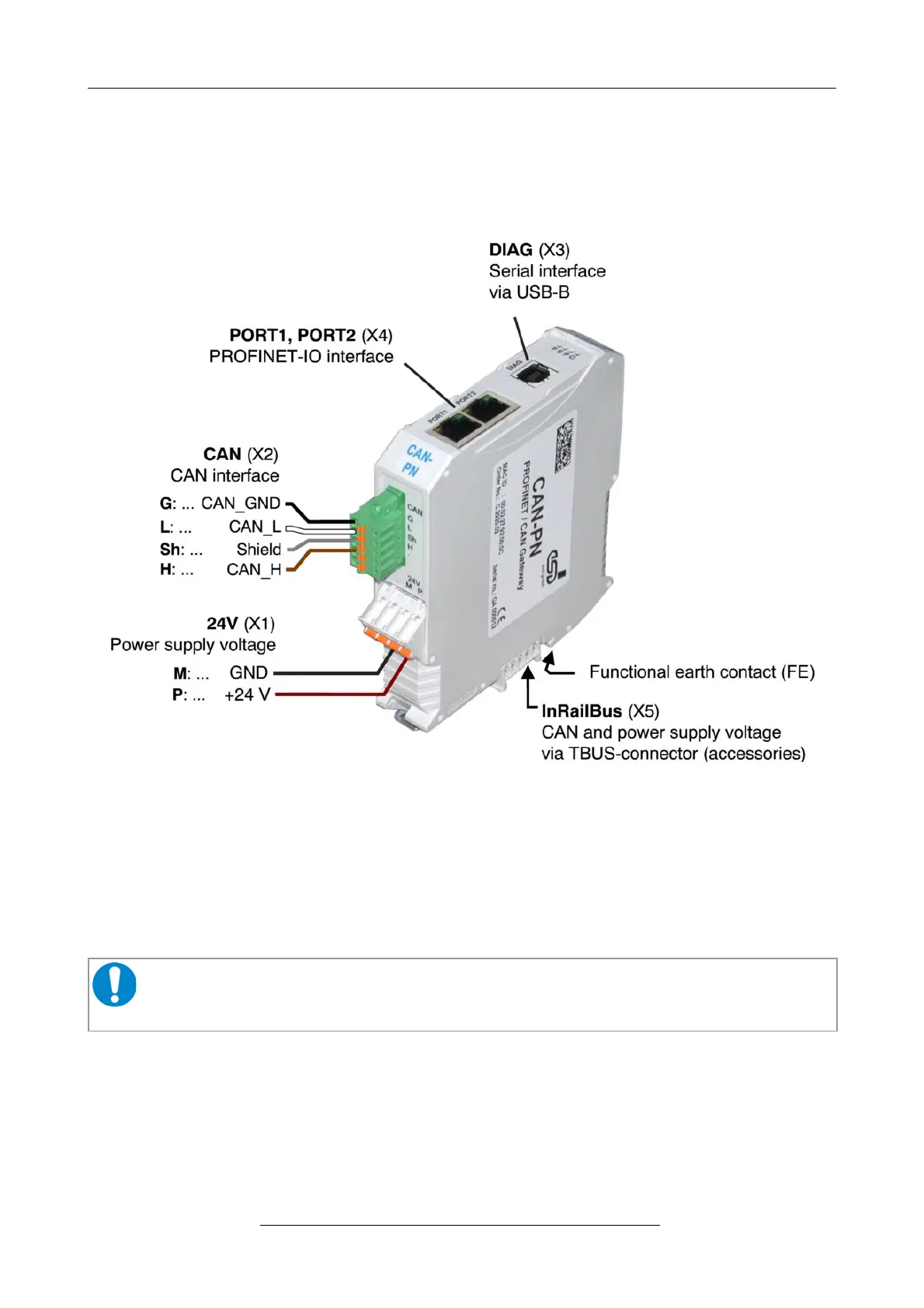

Figure 2: Connections in operable state
See also from page 16 for signal assignments of the connectors.
For conductor connection and conductor cross section see page 18.
NOTICE
Read chapter “Starting Up” on page 13, before you start with the installation of the
hardware!
Page 10 of 38
Hardware Manual • Doc. No.: C.2920.21 / Rev. 1.4
