Appendix InRailBus (Option)
8.2 Using InRailBus (Option)
INFORMATION
This chapter describes the installation of the module using InRailBus for CAN-CBX-
modules. For the CAN-PN module the following points apply accordingly.
8.3 Installation of the Module Using InRailBus-Connector
If the CAN bus signals and the power supply voltage shall be fed via the InRailBus, please proceed
as follows:

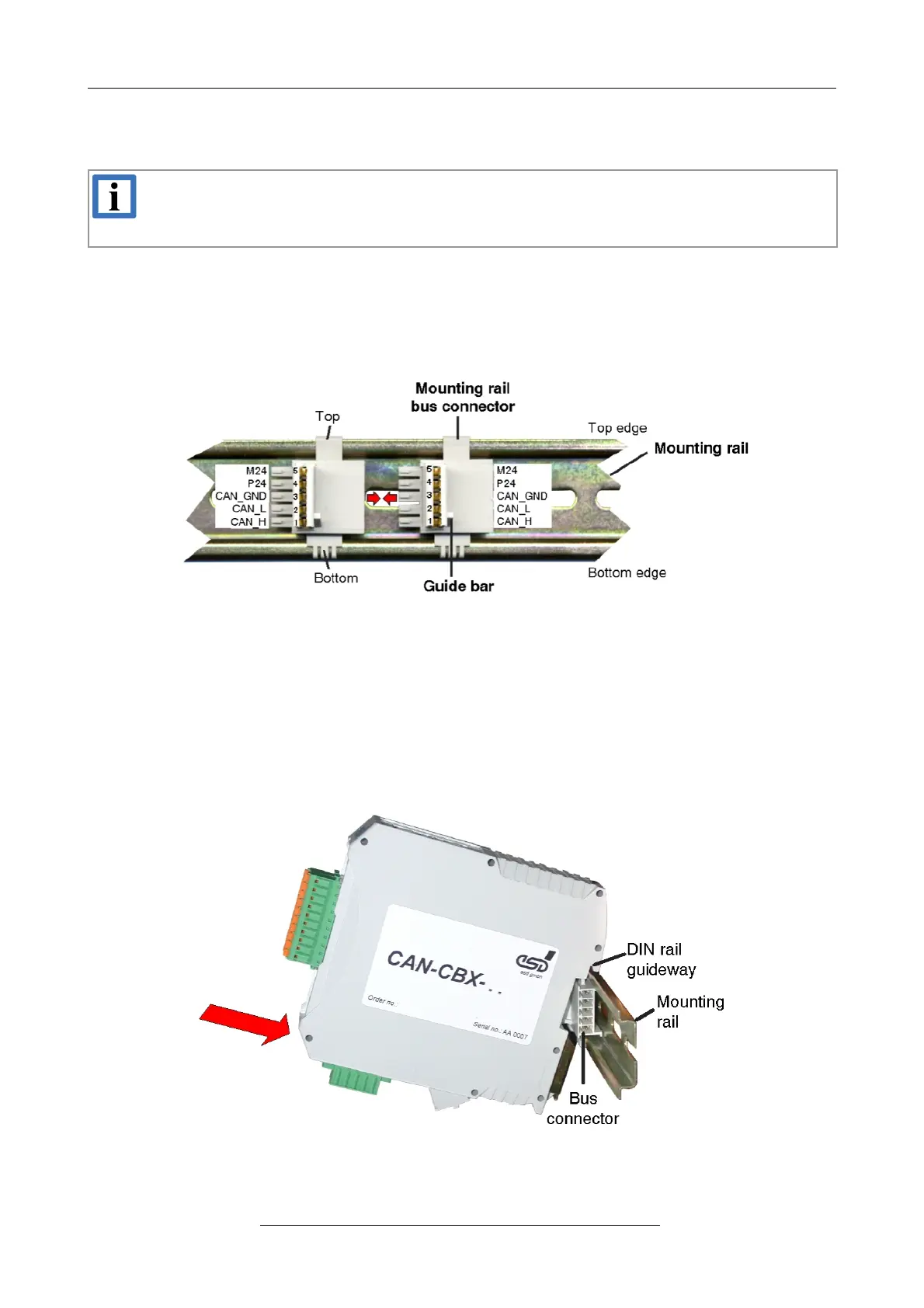

Figure. 12: Mounting rail with bus connector
1. Position the InRailBus connector on the mounting rail and snap it onto the mounting rail
using slight pressure. Plug the bus connectors together to contact the communication and
power signals (in parallel with one). The bus connectors can be plugged together before or
after mounting the CAN-CBX modules.
2. Place the CAN-CBX module with the DIN rail guideway on the top edge of the mounting rail.
Figure. 13: Mounting CAN-CBX modules
