5. Interfaces and Connector Assignments
5.1 24V-Power Supply Voltage
The power supply voltage can be fed via connector 24V (X1) or optional via InRailBus (connector
assignment see page 18).
Device connector: Phoenix Contact MSTBO 2,5/4-G1L-KMGY
Line connector: Phoenix Contact FKCT 2,5/4-ST, 5.0 mm pitch,
spring-cage connection (included in the scope of delivery)

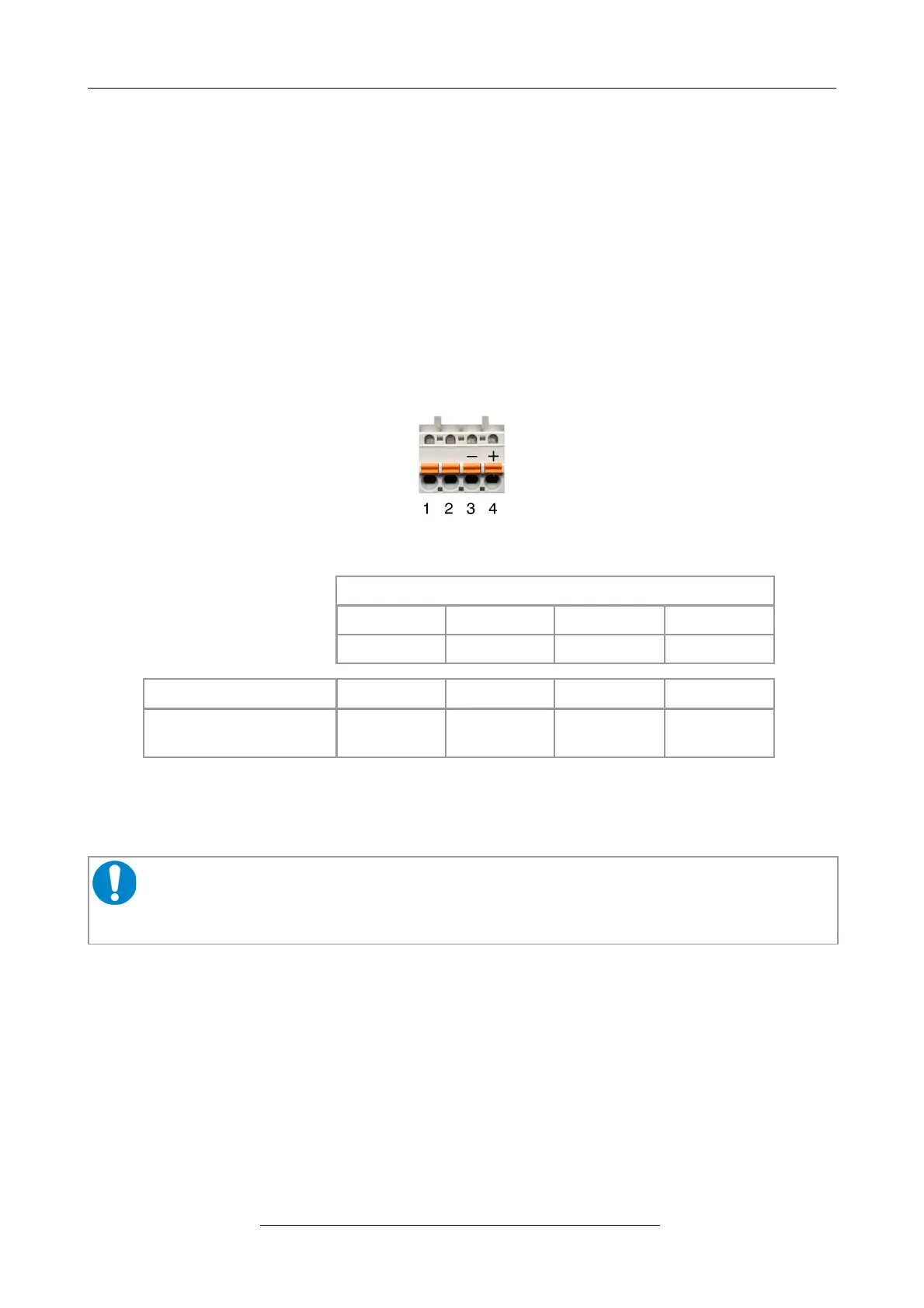

Pin Position:
Pin Assignment:
Imprint of the housing
24V
. . M P
Imprint of the connector (none) (none) - +
Pin no. 1 2 3 4
Signal
Do not
connect!
Do not
connect!
M24
(GND)
P24
(+ 24 V)
Please refer to the connecting diagram page 10.
NOTICE
It is not permissible to feed through the power supply voltage through the connector
24V (X1) and to supply the power supply voltage to another CAN module station!
A feed through of the +24 V power supply voltage can cause damage on the modules.
Signal Description:
P24... power supply voltage +24 V ±10 %
M24... reference potential
