ESDEC Clickfit Evo - Final Clamp Tightening; Mounting the Last Panel; Adjusting Mounting Rails

24

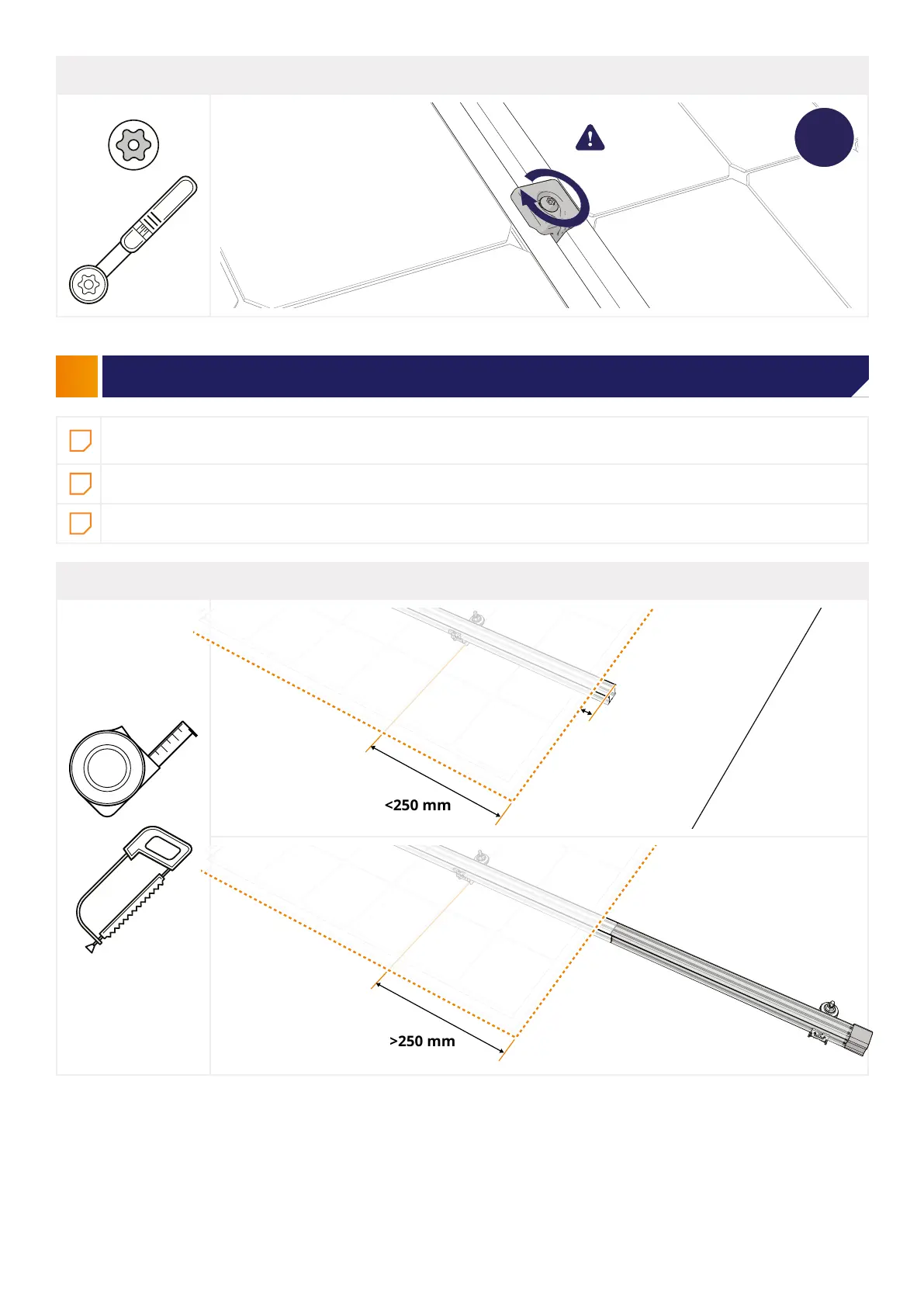

3 SCREW THE CLAMPS ONTO THE PANEL
TR-30
2x
4,5Nm
8 MOUNTING THE LAST PANEL
Optional:Repearsteps6.1.ClicktheAuxiliarysetonthepaneland6.2.Clickthecablesofthepanelrmlyintothe
cable clamp.
Repeatstep6.7.Placethepanelontherails
Repeatstep7.2.Slidethepanelagainsttheclamps
1 OPTIONAL: SAW THE MOUNTING RAILS TO SIZE
<250 mm
20-35 mm
>250 mm
4
Iftheoverhangissmallerthan250mm,keepaminimumof20mmtoamaximumof35mmraillengthoverhangfor
mountingtheendcap(art.no.1008060(-B)).
4
Doestheouterpaneledgeprojectmorethan250mmbeyondthelasthangerbolt?Thenextendthemountingrailsoit
goes50mmbeyondthenexthangerboltandattachthemountingrailhere.Thisextra50mmprovidessucientlength
totanendcap(articleno.1008066(-B))tothemountingrails.Fortheendclampyoumustthenusetheendclamp
support(articleno.1008065(-B)).
