ESDEC Clickfit Evo - Final Clamp Tightening; Mounting Multiple Rows; Mounting Subsequent Rows; Removal and Recycling

26

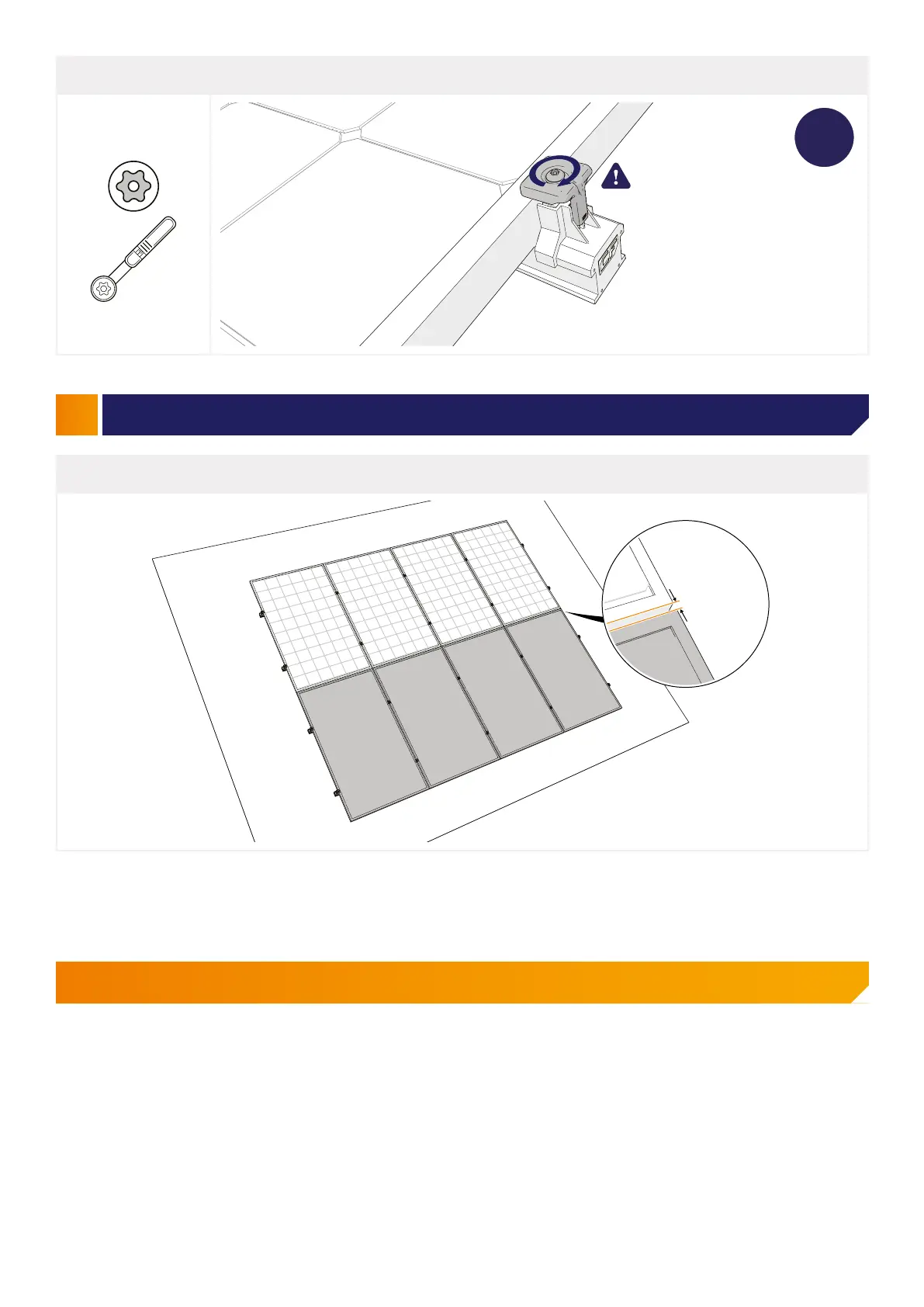

5 SCREW THE CLAMPS ONTO THE PANEL
TR-30
2x
4,5Nm
9 MOUNTING MULTIPLE ROWS
1 MOUNT EACH NEXT ROW AGAINST THE PREVIOUS ROW
10 mm
4
Alwayskeepaminimumof10mmbetweeneachrowofpanelsinthecaseofhorizontallyorientedrails,oreachpanel
column in the case of vertically oriented rails.
4
Always follow the project plan from the calculator.
REMOVAL AND RECYCLING
GENERAL
Alwaysfollowlocallawsandregulationswhendismantlingthemountingsystemanddisposingofit.
