Kongsberg X-series

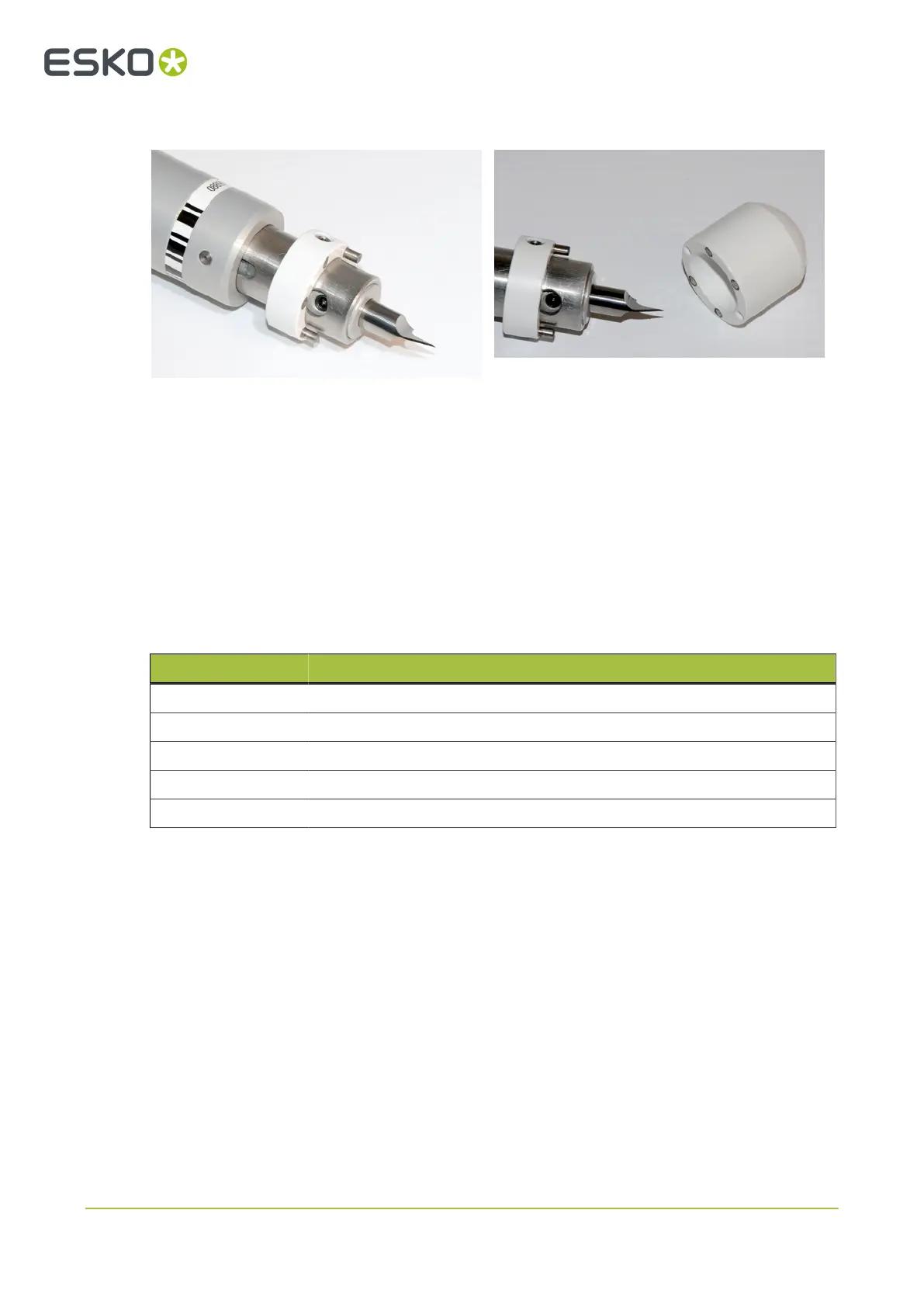

For Knife Blade change, remove the foot.

The locking screw will always point towards the

cutting direction

Note: Be extremely careful when mounting the

foot.

Observe the alignment pins.

After a blade change, the tool depth should be

checked again.

13.5.1. Tool adjustment

For this tool, complete the following adjustments:

Parameter Description

Tool Height The tool tip should touch the material surface.

Lag Setting The knife lag depends upon the actual knife blade adapter and knife blade.

Tool Rotation Adjust tool angle tangential to moving direction.

Center Offset Adjust tool sideways until centered.

Tool Offset Adjust offset relative to Laser Pointer.

For more information about how to run the adjustment wizards, see Tool Conﬁguration.
