The Fuse is available inside the connector cover.
Fuse details
F - 4A 250V T 5x20mm Slow Blow (42448944)
15.8. Chiller 2016 / Chiller 2020 Fuse replacement

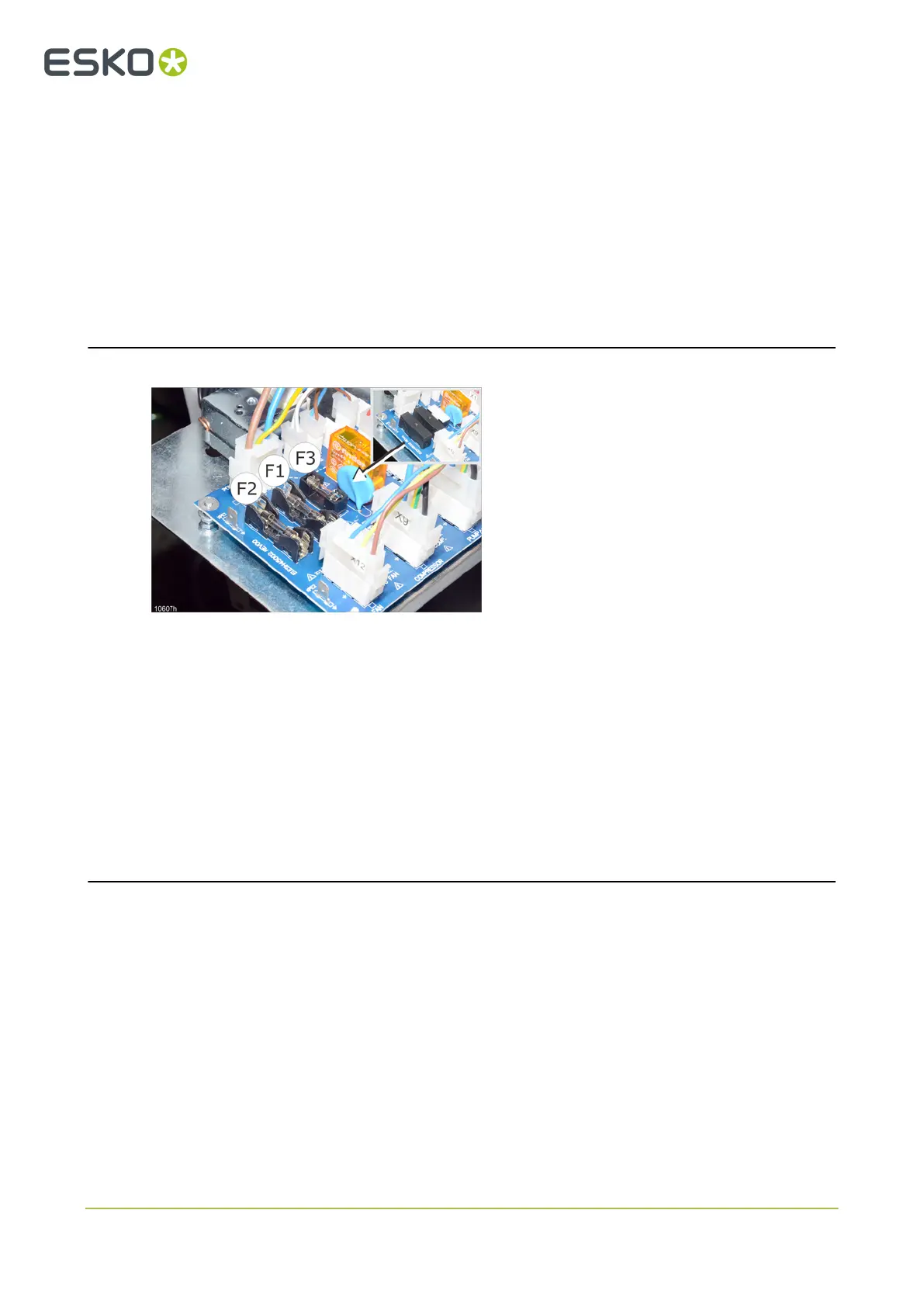

Fuses are located on the PCB inside the Chiller
unit.
Each fuse is protected by a cover as shown upper
right.
Lift straight up to remove.
Fuses when 115 V:
F1 - T 16A 250V (5 X 20 mm) (42468066)
F2 - T 16A 250V (5 X 20 mm) (42468066)
F3 - T 500 mA 250V (5 X 20 mm) (42468074)
Fuses when 230 V:
F1 - T 12A 250V (5 X 20 mm) (42468082)
F2 - T 12A 250V (5 X 20 mm) (42468082)
F3 - T 500 mA 250V (5 X 20 mm) (42468074)
15.9. Sound Insulating Box, Circuit Breaker for fan
177

Esko Kongsberg X44 Specifications

General

Connectivity	Ethernet, USB
Accuracy	±0.1 mm
Maximum Material Thickness	50 mm
Tool Options	Creasing Wheel
Working Area	2, 500 x 1, 600 mm
Speed	Up to 43.3 inches per second
Positioning Speed	up to 80 m/min
Software Compatibility	Esko Software
Power Requirements	230 V / 400 V
