20.7. Power On/Off Controls
Main Power Disconnect and Power On/Off Controls
Main Disconnect switch

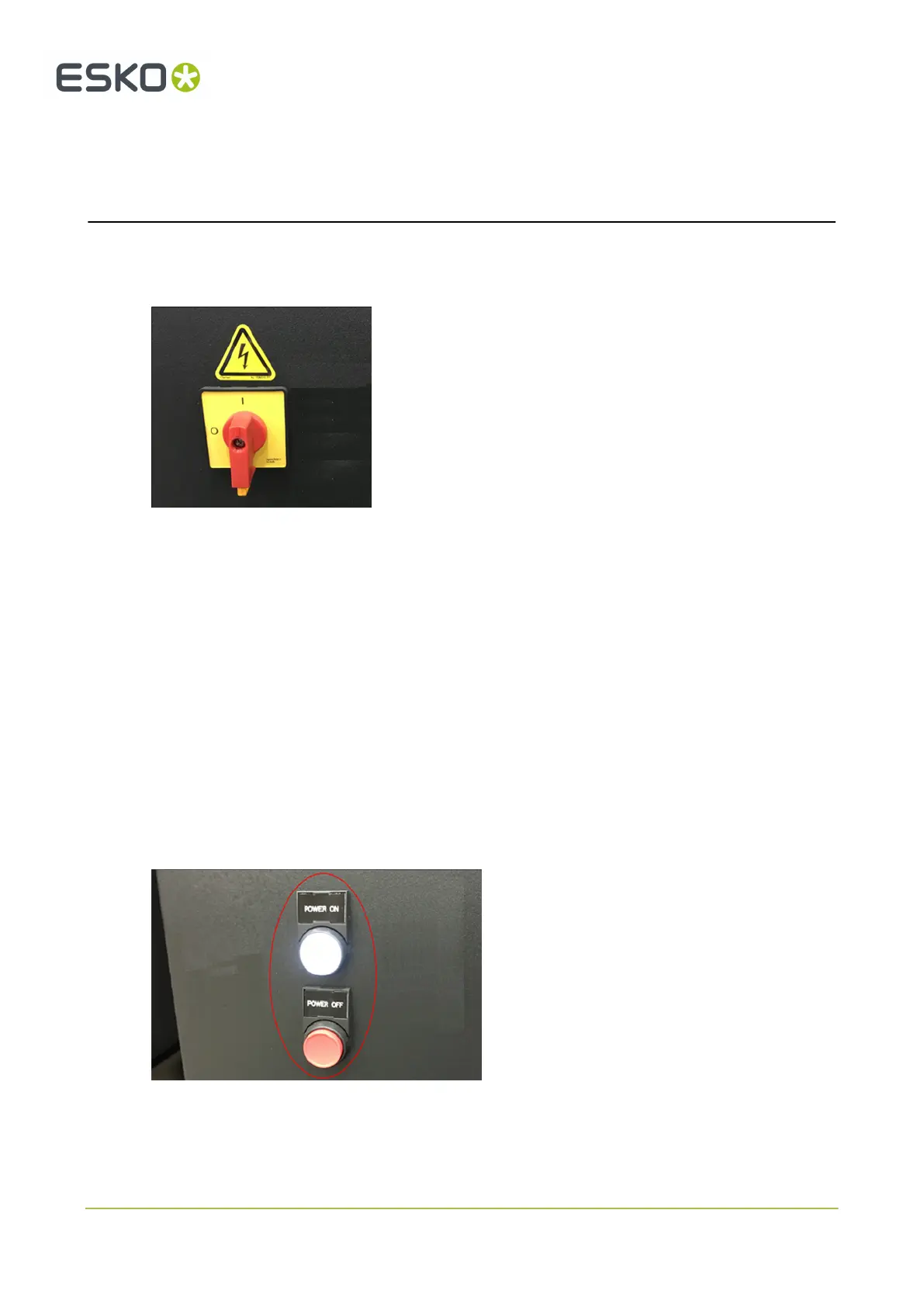

The picture shows the Main Disconnect switch in
the 1 or ON position.
The Main Disconnect switch is located on the door
of the electrical enclosure.
Switching to the 1 or ON position connects the
voltage input power to the i-BF electrical system.
The disconnect mechanically prevents the electrical enclosure door from opening when the switch is
in the 1 position.
Power is removed from the system when the disconnect is in the 0 position.
In the 0 or OFF position the enclosure door is allowed to be opened by an electrician.
WARNING
Never operate the i-BF with the electrical enclosure door open and the disconnect manually switched
to the ON position.
High voltage is also present within the enclosure even with the disconnect in the OFF position.
The i-BF electrical system should only be serviced by qualified experienced technicians.
Power ON / OFF Pushbuttons
The Power ON / OFF pushbuttons are located on
the door of the electrical enclosure.
Power ON pushbutton
Pressing the white Power ON pushbutton will turn
control power on to the i-BF.
Power ON is indicated by the white Power ON
pushbutton illuminating.
Power OFF Pushbutton
Pushing the Power OFF pushbutton will cause the i-BF control power to be turned off.
