Video Input Connection (Camera)
Connect cameras to the DVR. The DVR provides 4 x BNC connectors.

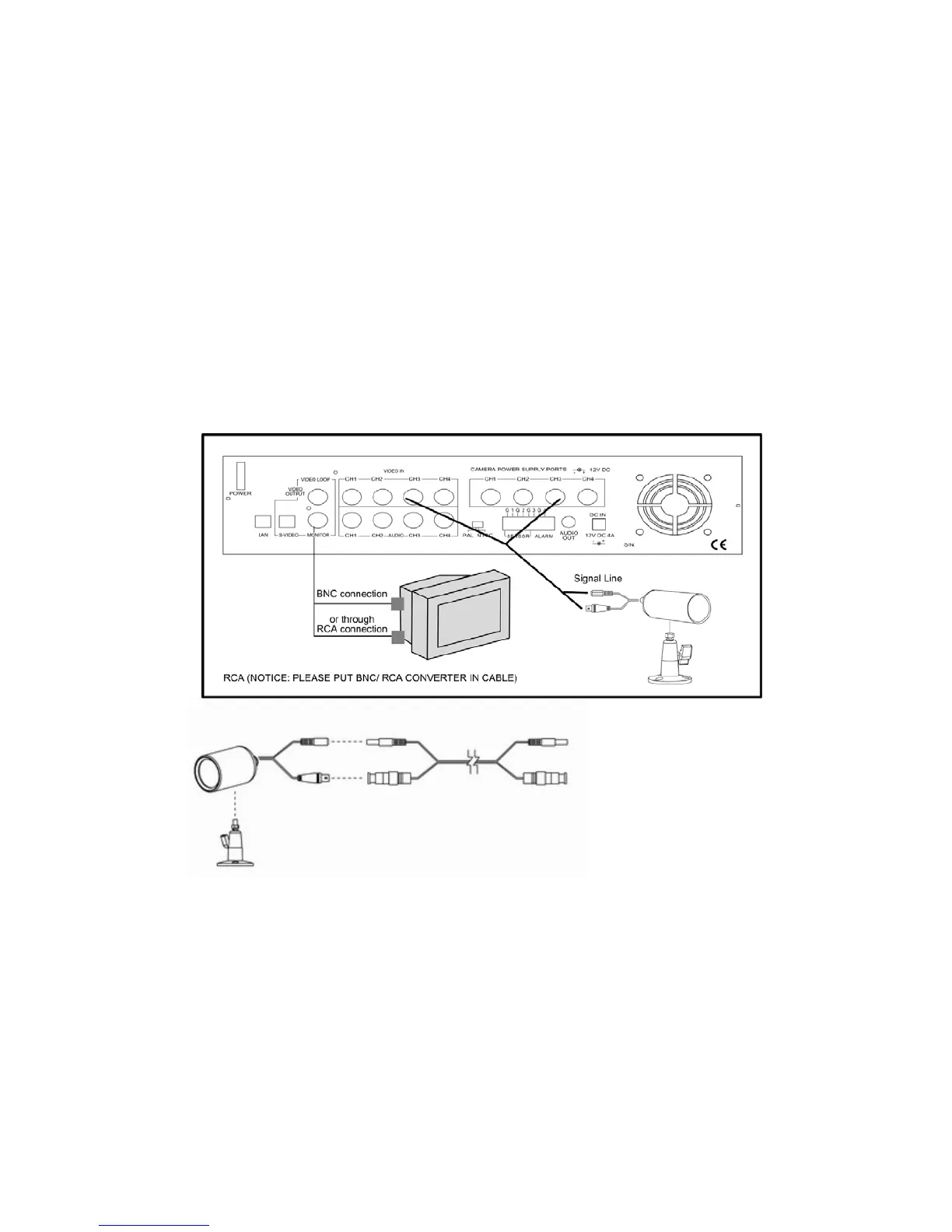

The camera installation procedure is shown below:
I. Connect the video signal line and power to the DVR.
II. Connect the video signal line and power to camera.
