MAGPRO16 Addressable Fire Alarm Panel – Installation and Programming Manual
8
2. INSTALLATION
2.1. Wall Mounting
• The panel must be installed in a clean dry place and must not be subjected to impact or vibrations (Figure 1). It must
be situated far from heating appliances. The temperature must be within -5ºС and + 50ºC. The fire panel is not
waterproof!
• Unpack the panel and observe for visible damages due to bad transport or incorrect storing.
• Open the front cover and disconnect the flat indication cable and the earthling point (Figure 2).

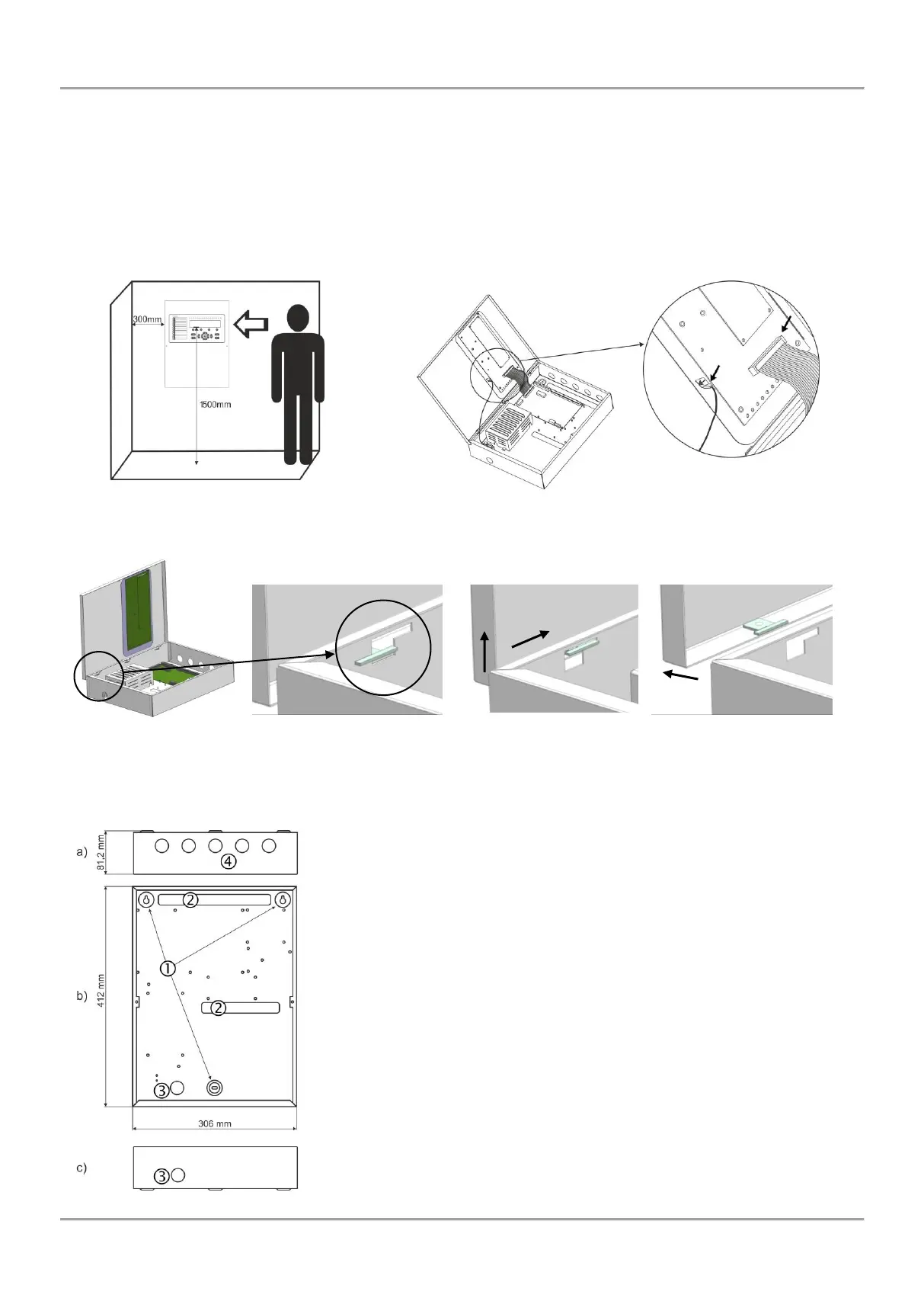

Figure 1 Figure 2
• Remove the front cover as dismount the side hinges (Figure 3).
Figure 3
• Choose inlets for the main power supply cable, loops, sounders, control devices, etc. Remove the metal cap element
just from those holes for cable running (Figure 4).
Figure 4 – Elements of the metal bottom:
а) View from above;
b) Front view;
c) View from below.
1 – Main mounting holes.
2 – Holes for cable running.
3 – Holes for main power supply cable running, protected with a metal cap
element.
4 – Additional holes for cable running, protected with a metal cap element.
