Installation
LSRA(-C)
1 2 345678 9
(REAR VIEW)
TB1
LSRA(-C)
1 2 345678 9
(REAR VIEW)
TB1
LSRA(-C)
1 2 345678 9
(REAR VIEW)
TB1
1
1
NOTES
SUPERVISED AND POWER LIMITED.
2. ROUTE POWER LIMITED WIRING
SEPARATE AND AWAY FROM NON-
POWER LIMITED WIRING.
3. ALL WIRING 18 AWG, TWISTED.
4. UL LISTED 100 OHM EOL RESISTOR
(P/N 260071or EOL-100) REQUIRED AT
PHYSICAL END OF RS-485 WIRING.
LSS4
RS-485E RS-485
+24V
COM
++
[XMDN-015.CDR]

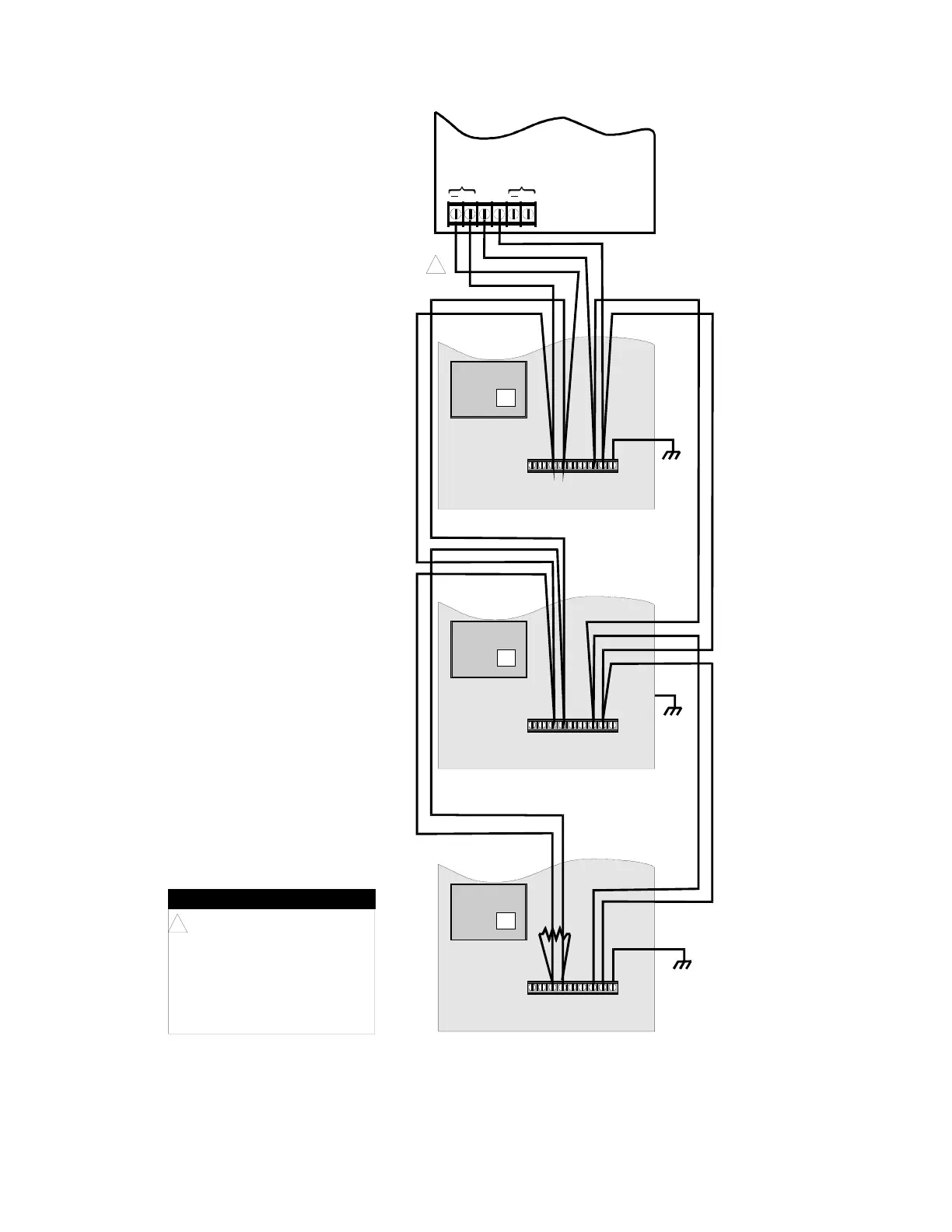

Figure Chapter 3-7: LSS4 To LSRA(-C) Wiring
LSRA Installation, Operation, Maintenance, and Configuration Manual 3.11
