Etac Cross 6 - Rear Wheel Position with Attendant Brake

25
Etac / Cross 6 / www.etac.com
B
A
G
H
F
E
D
C
B
A
65 43 21
F6 F5
G2G3G4 G1
H2H3H4 H1
E6 E5
D6 D5
C6 C5
B6 B5
A6 A5
F4 F3
E4 E3
D4 D3
C4 C3
B4 B3
A4 A3
F2 F1
E2 E1
D2 D1
C2 C1
B2 B1
A2 A1
F6F5
G2 G3 G4G1
H2 H3 H4H1
E6E5
D6D5
C6C5
B6B5
A6A5
F4F3
E4E3
D4D3
C4C3
B4B3
A4A3
F2F1
E2E1
D2D1
C2C1
B2B1
A2A1
G
H
F
E
D
C
B
A
654321
Pos A6
Pos G1-G2
Pos A1-5, B-E,
F1-F2
Pos F3-F6, G3-G4,
H3-H4
Pos A6
Pos F3-F6, G3-G4,
H3-H4
Pos G1-G2
Pos A1-5, B-E,
F1-F2
12. Advanced settings, customization
When adjusting the brake, loosen the nut (A) and adjust the brake by
screwing (B) up/down.
When the brake is tight enough tighten the nut (A). This adjustment
should be made when the brake does not work satisfactorily.
8 mm
The brake arm is reversible.

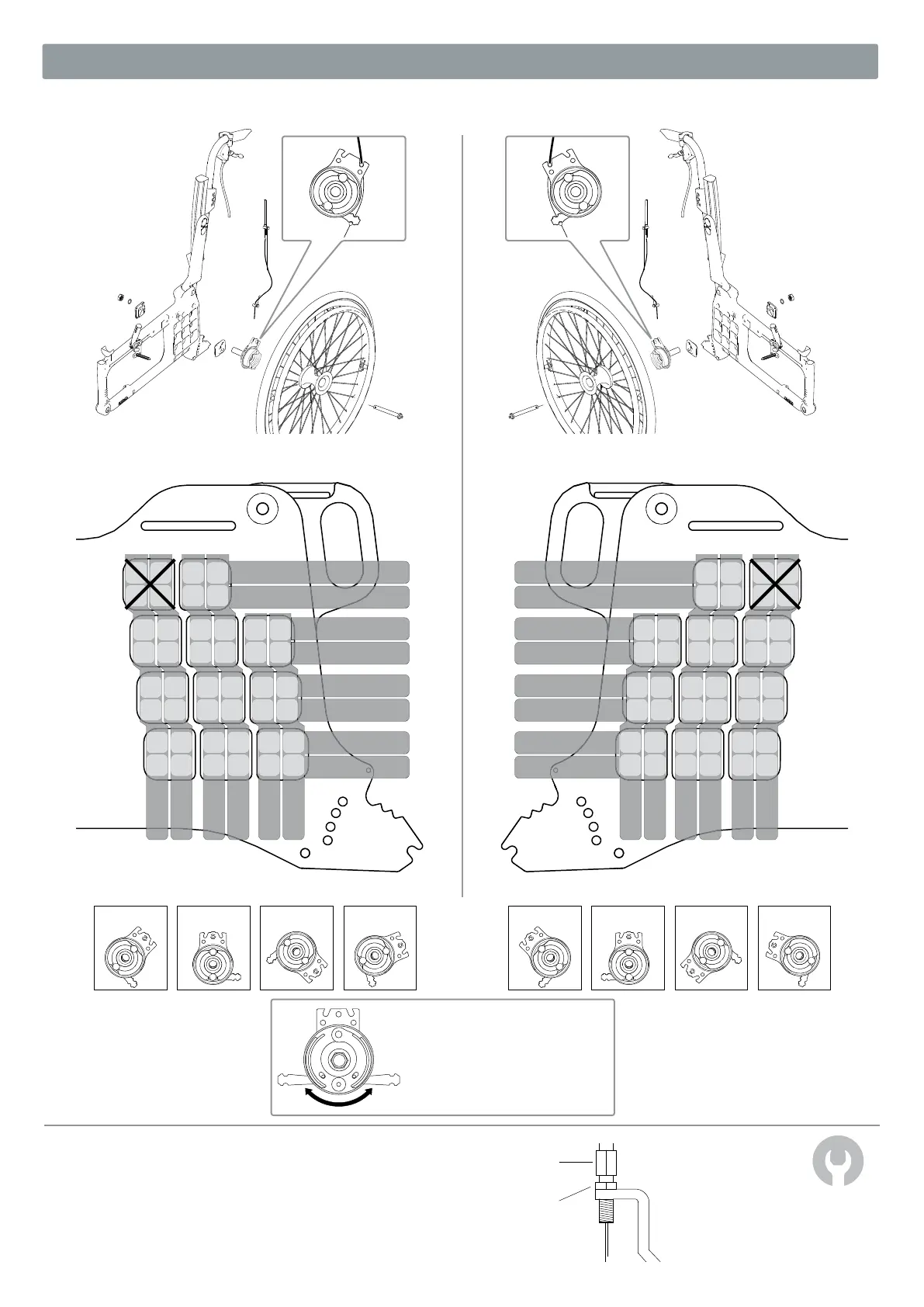

Change rear wheel position, attendant brake
