13. Settings, readjustments

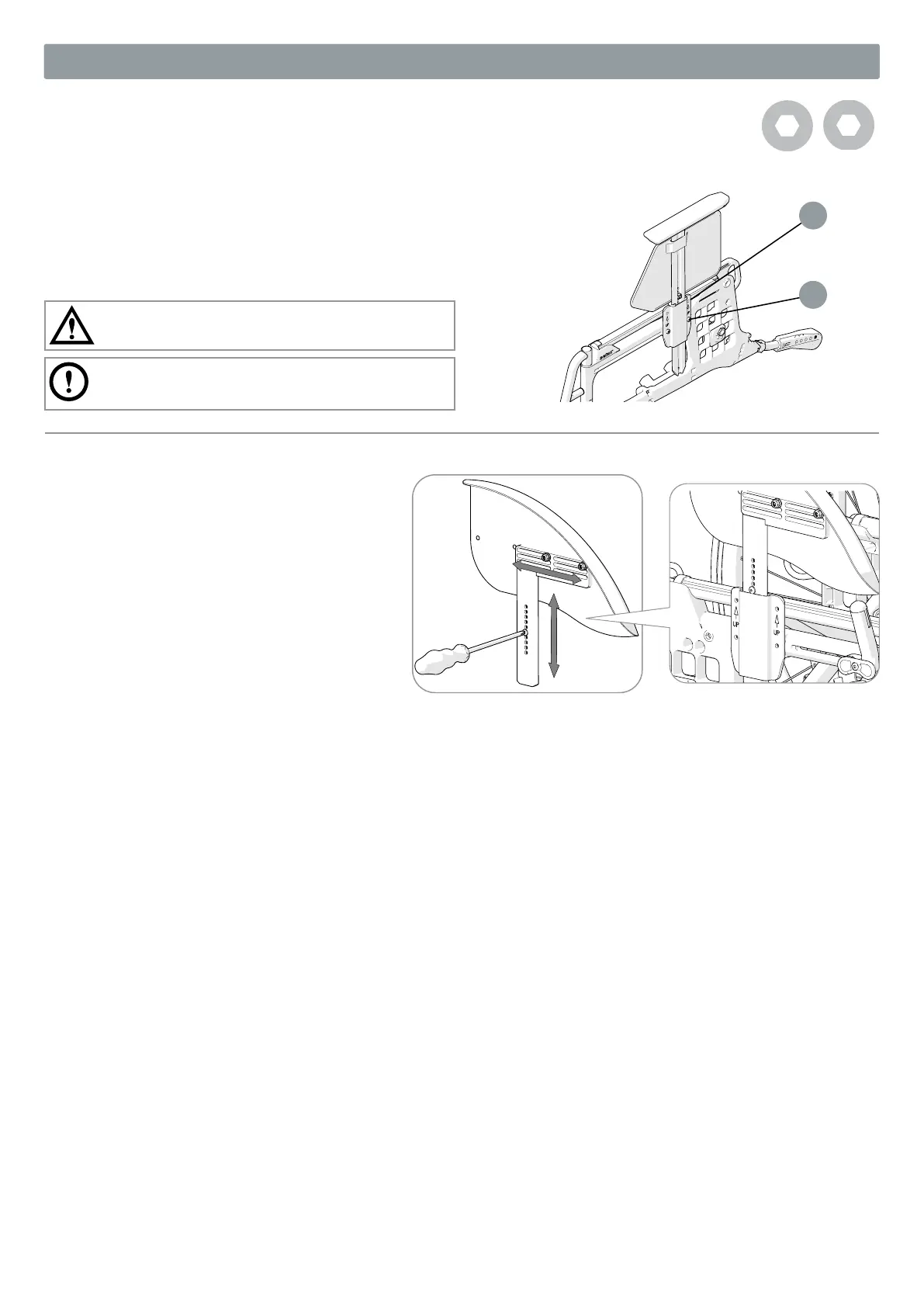

The arm support mount can be mounted at 2 different heights.
In position 1, the arm support height is adjustable between 19–
26 cm and in position 2 (standard) between 24-31 cm with 1 cm
interval.
The square nut determines both the height of the arm support and
attaches the side plate:
- Loosen the screw holding the square nut.
- Slide the side plate up or down to the desired height.
- Tighten the nut again on the side plate.
If necessary, the right arm support can be mounted on the left side
and vice versa.
Do not lift the wheelchair using the arm supports.
With 24" low pressure or solid tyres in pos. F1 & E1, the arm
support side cover does not cover the front of the rear wheel.
3 mm5 mm
Mudguard can be adjusted in height and depth.
