ETC Installation Guide
ColorSource CYC v1.6
ColorSource CYC v1.6 Page 4 of 12 ETC
Setting up the fixture
1: Plug power cord into the powerCON In connector on the rear of the
fixture.
2: Make any power-thru cable connections prior to applying a power
source.
3: Make any DMX connections, and if the fixture is the last in a DMX line,
terminate the fixture. See
Connectors
on
page 3
.
4: Position the fixtures appropriately:
• Setback: Minimum recommended distance from the cyclorama is
2 ft (.61 m).
• Spacing: Position the fixtures arrayed with a 1.7-1 spacing for
optimal coverage, with a maximum spacing of 2-1. For example, if
fixtures are 2 ft (.61 m) from the cyclorama, position them a
maximum of 4 ft (1.22 m) apart from each other.
5: Plug power cord into power source.
Powering up
1: Press any button to wake the display. The display shows the DMX
address. See
Setting the DMX address
on
page 5
.
2: Press the Mode button to access the Presets/Sequences menu. See
Setting presets and sequences
on
page 7
.
Adjusting the tilt
When pipe-mounting the fixture, tilt the fixture so that the base of the fixture
is perpendicular to the cyclorama.
1: Loosen, but do not remove the yoke locking knobs.
2: Tilt the fixture so that the base of the fixture is perpendicular to the
cyclorama.
3: Tighten the yoke locking knobs.

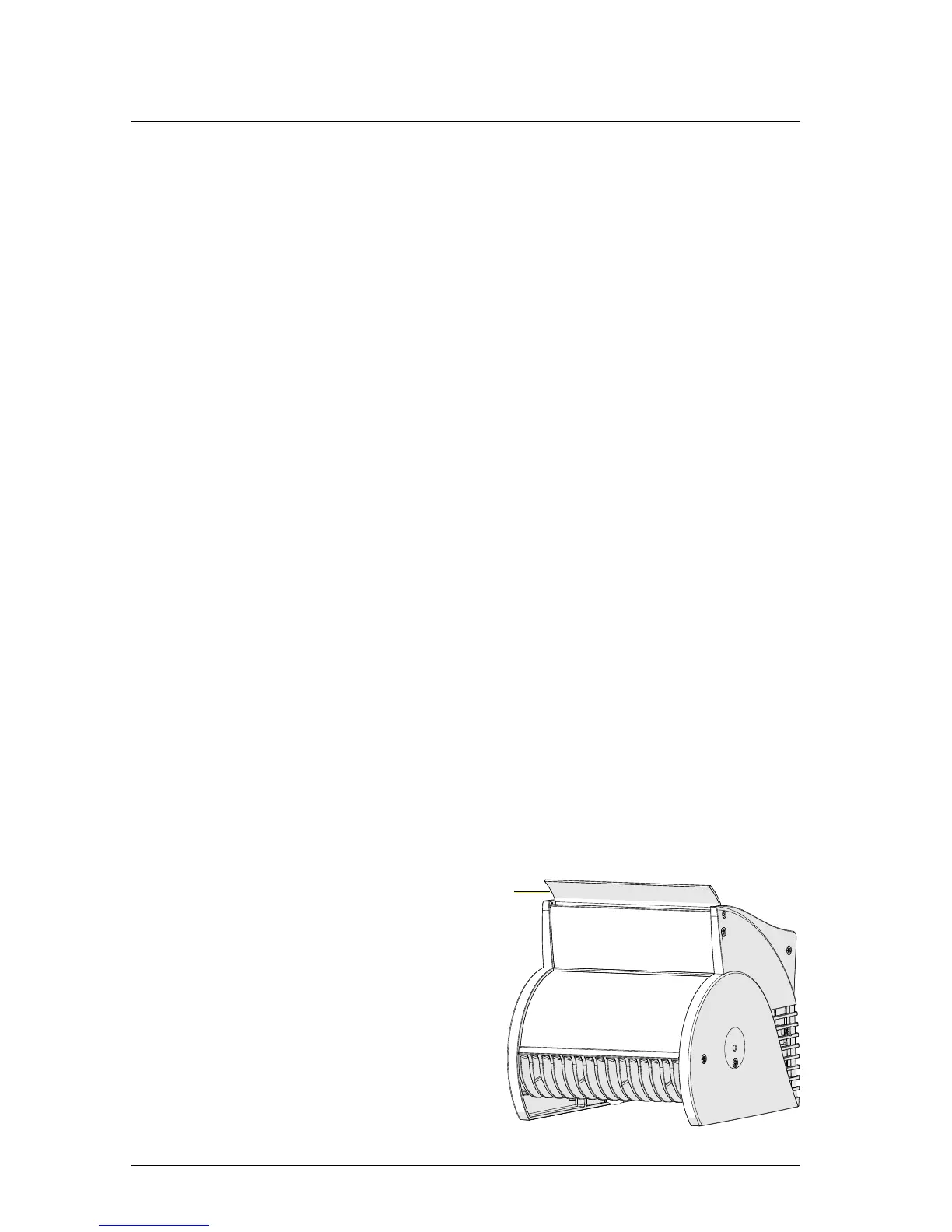

Adjusting the spill
control
Adjust the angle of the spill
control as needed.
