Finalize Hoist and Cable Management Installation 20

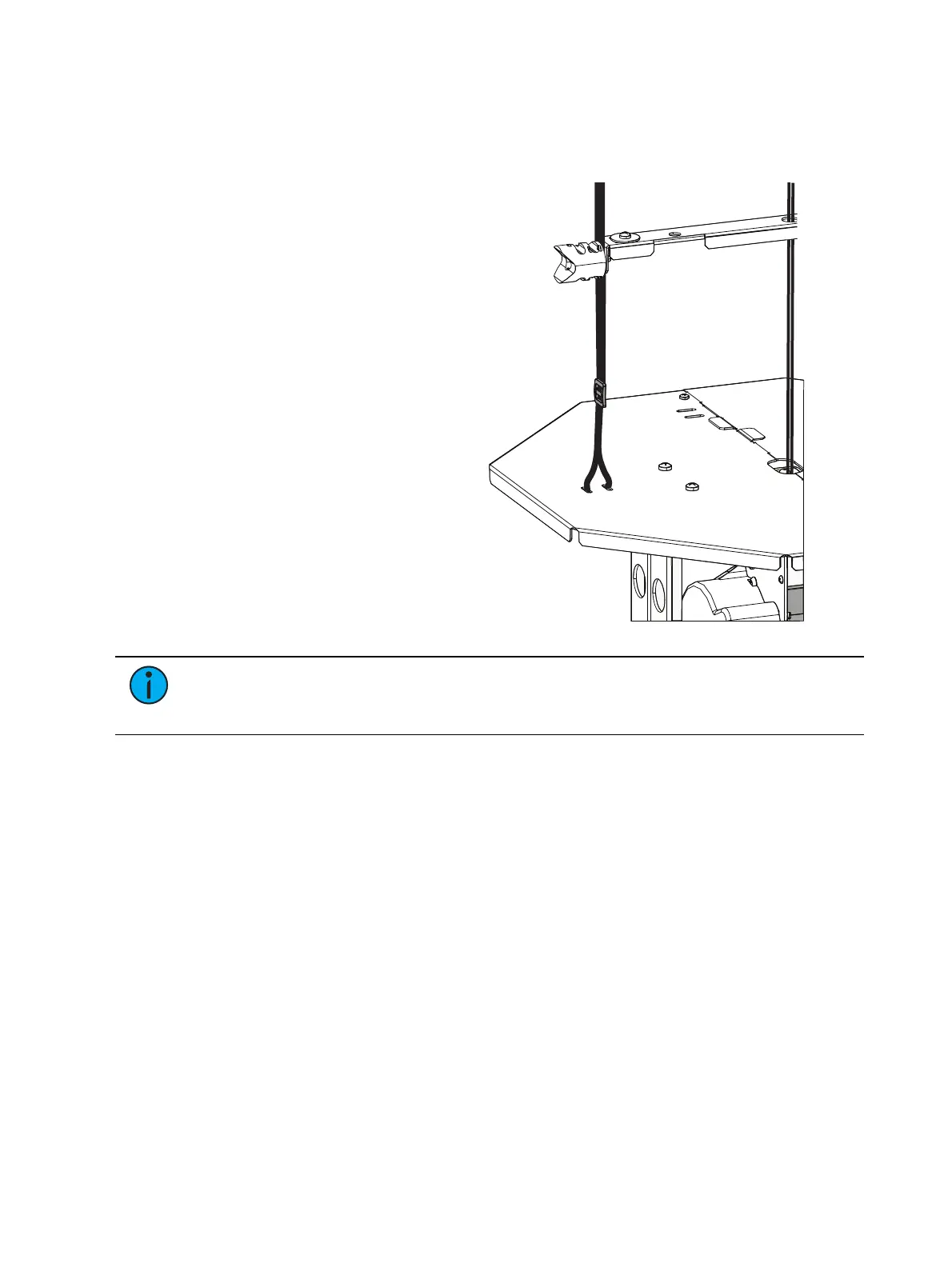

Attach Cable Assembly to Platter
The following instructions detail how to attach the bottom of the helix cable assembly to the
platter.
Bottommost rib
Mark on webbing
rests approximately
where webbing loops
through platter
1. Thread the buckles onto
the nylon webbing straps
that extend beyond the
bottommost rib.
2. Loop the nylon webbing
through the slots on the
platter.
3. Terminate the ends of the
loops in the buckles.
Note:
There is a mark on the nylon webbing that is 457 mm (18 in) below the
bottommost rib. This mark should be approximately at the point where the webbing
loops through the platter.
