Removing door plate top
1 Open the door.
2 Loosen the plate (C).
3 Remove the plate.
9.15 Replacing cup sensor

Be careful! : PCBs are ESD-sensitive. Put on an ESD
wrist strap and connect it to the machine frame.

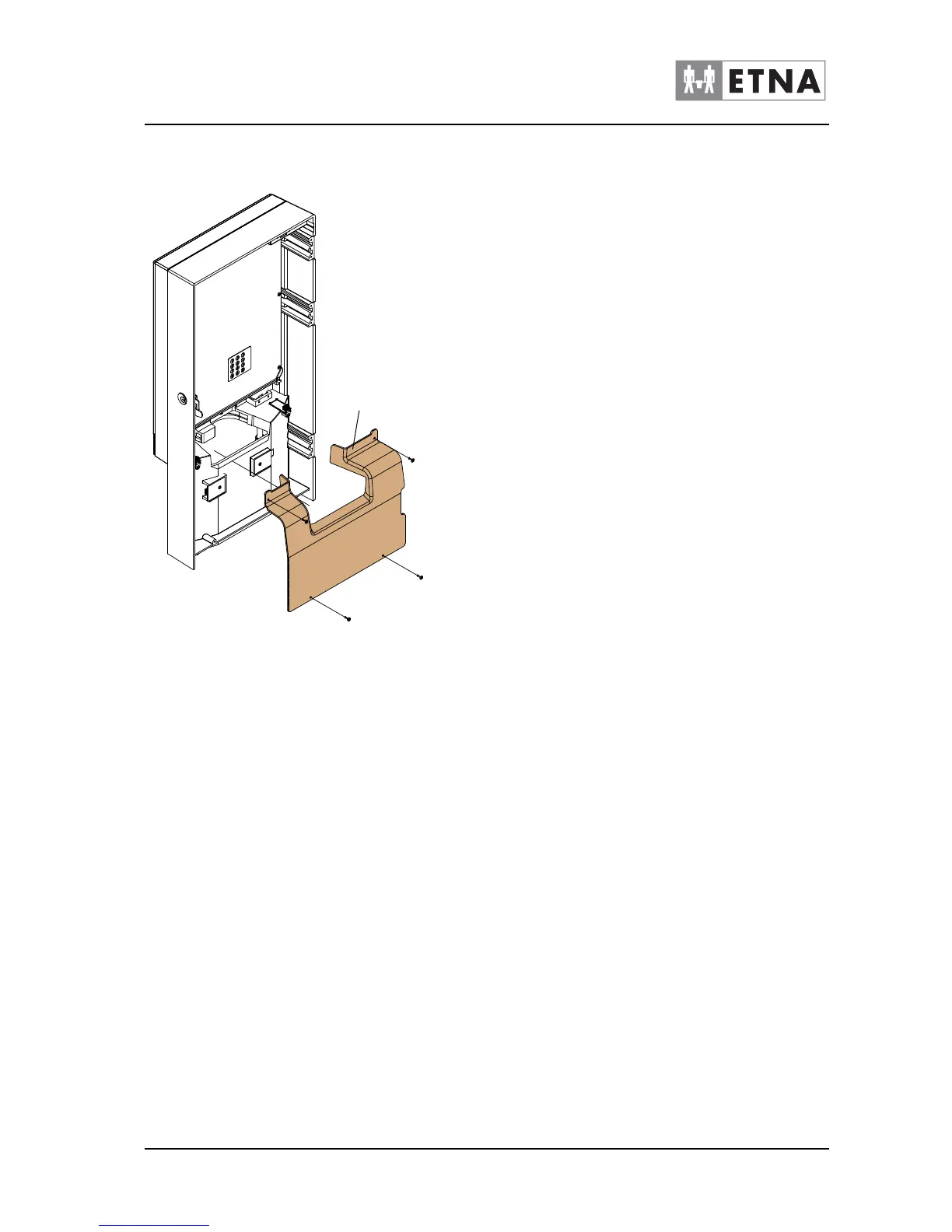

Figure 9-15
C
