9.20 Service panel
Be careful! : PCBs are ESD-sensitive. Put on an ESD
wrist strap and connect it to the machine frame.
1 Remove the door plate, see par. 9.14
2 Remove the service panel.
3 Thoroughly clean and degrease the surface of the door plate.
4 Replace the service panel.
5 Fix the door plate in place, see par.9.14

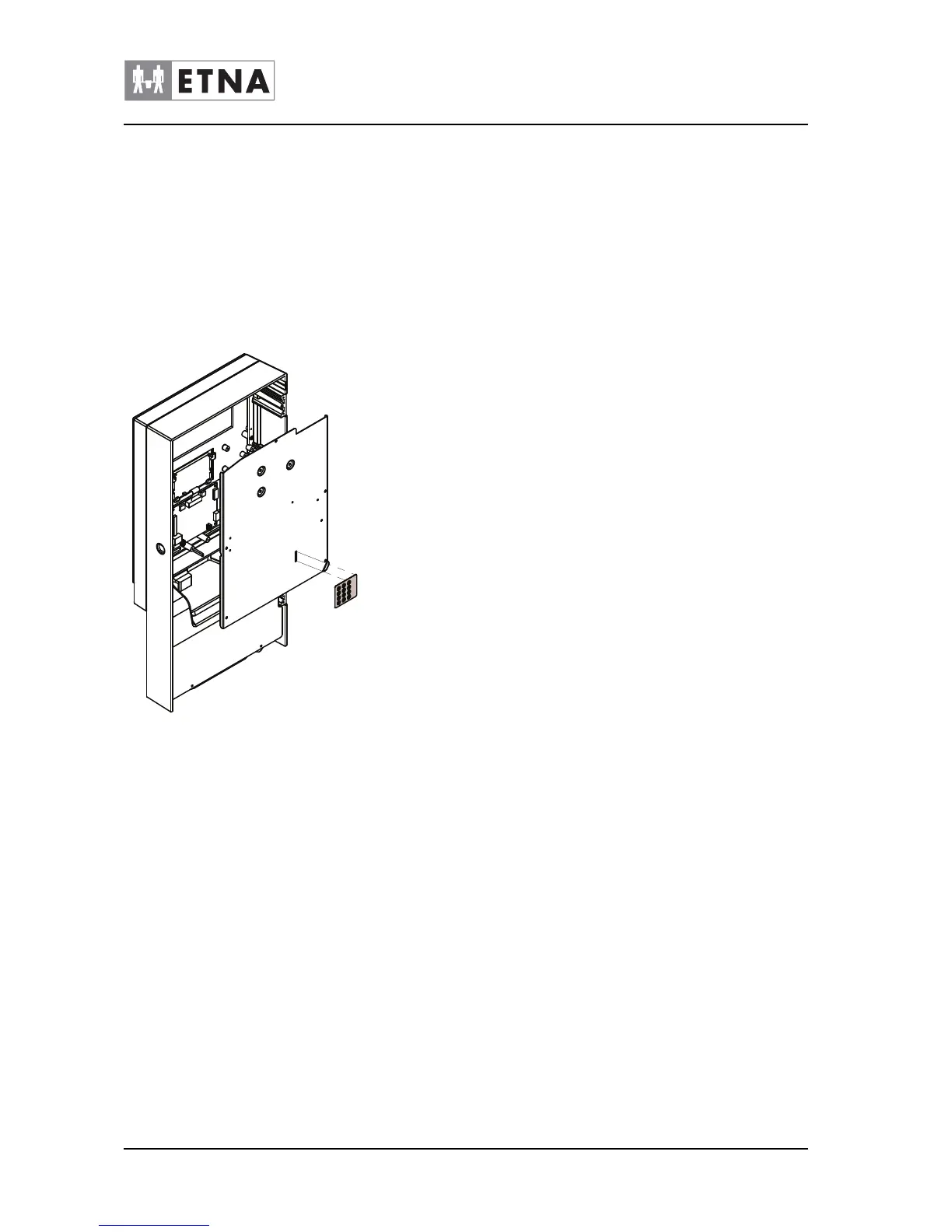

Figure 9-20
