EXTENSION CORDS
It is recommended that more air hose be used instead of an extension cord. Using more
extension cord will cause a voltage drop resulting in power loss to the motor.
If an extension cord must be used, verify that it is:
• A 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that
will accept the plug on the product.
• Extension cord is in good condition
• Length cannot exceed 50 feet.
• Larger than 12 gauge (American wire gauge (AWG)). As the number gets smaller, the
wire gauge gets larger, as the number gets larger, the wire gauge gets smaller.
OPERATION
KNOWING YOUR AIR COMPRESSOR
Read this manual and safety rules before operating the unit. Know all the functions of the air
compressor in case of an emergency.
DESCRIPTION OF OPERATION

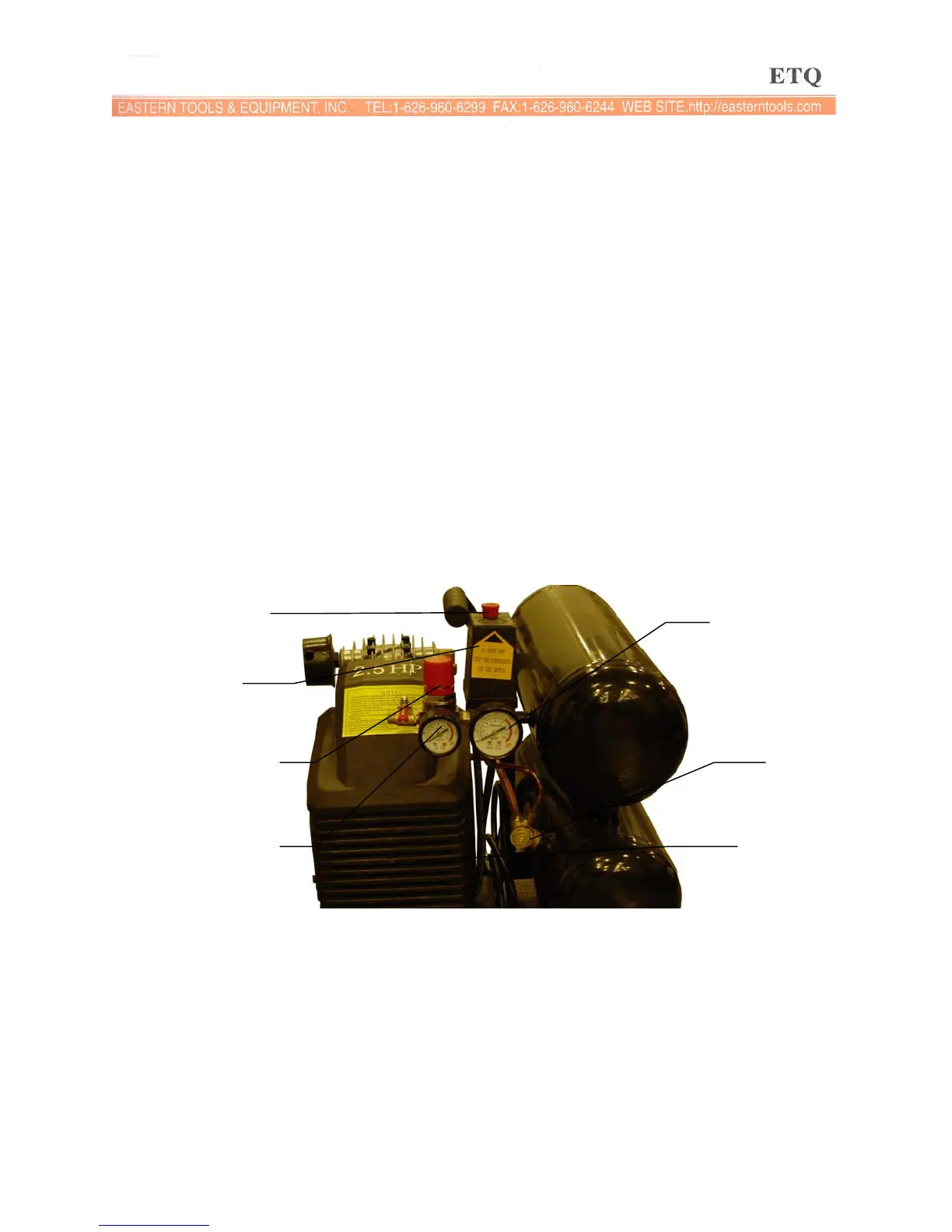

Become familiar with these controls before operating the unit.
Tank
Pressure
Gau
e
On/Auto/Of
Switch
Pressure
Regulator
Check
Valve
Cooling
System
Pressure
Switch
Outlet
Pressure
Gauge
On/Auto/Off Switch: Put this switch in the “ON” position to provide automatic power to the
pressure switch and “OFF” to remove power at the end of each use.
Pressure Switch: The pressure switch automatically starts and stops the air compressor based
on the tank pressure. If the pressure is low, the pressure switch will cut-in and turn the
compressor on. If the pressure in the tank is high, the pressure switch will cutout and turn the
compressor off.
