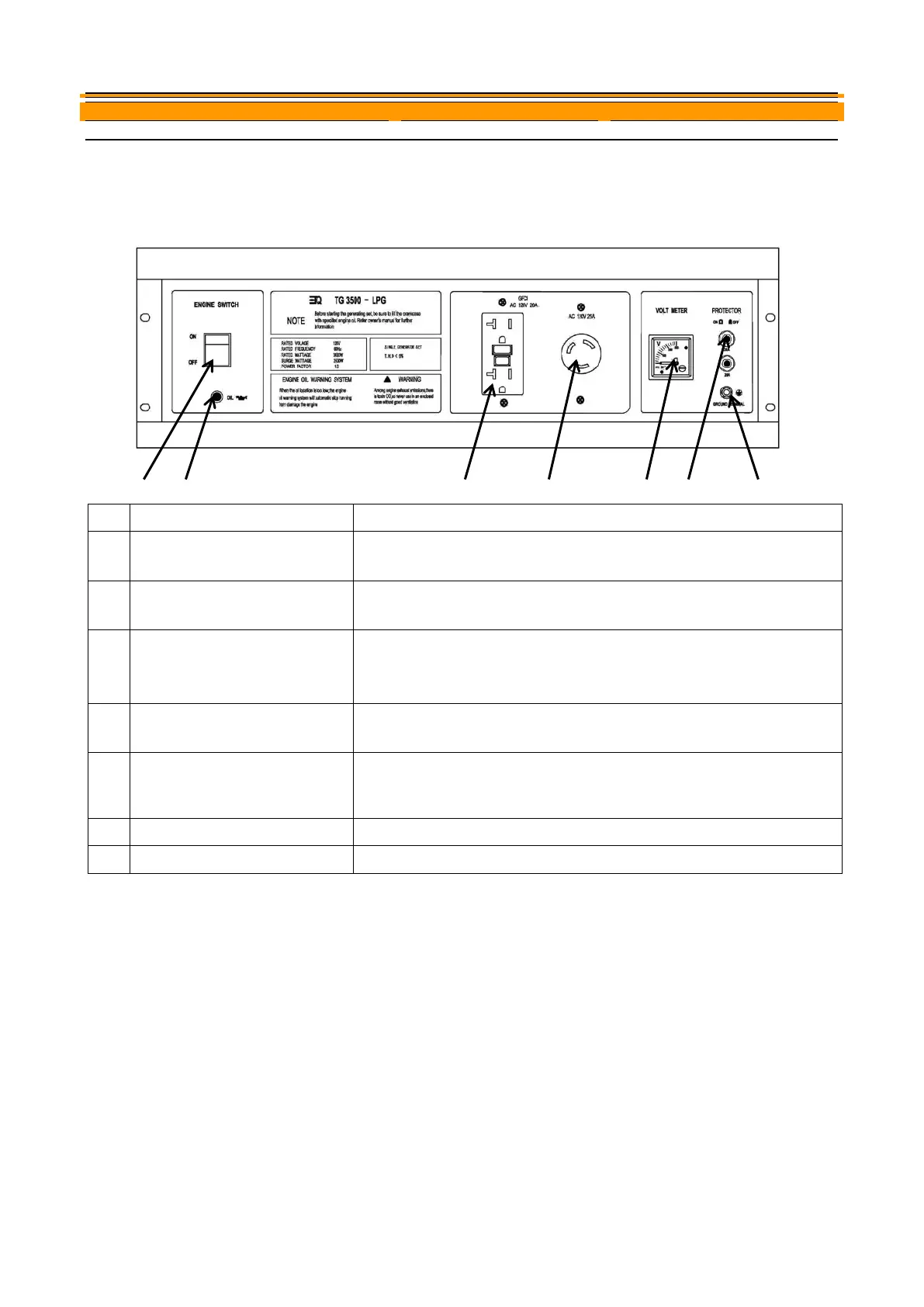

Power Panel
NO.
ITEM
EXPLAIN
(1)
Engine Switch
Flip the switch to the “On” position and pull the recoil starter to start the
generator. Turn to the “Off” position to turn off the generator.
(2)
Low Oil Sensor
Senses low oil condition and flashes; prevents engine from starting and/or
running if oil falls below the safety threshold.
(3)
120V 20A Duplex(GFCI→5-20R)
Protected by a 20 A circuit breaker. Use this duplex to operate 120 Volt AC,
single phase, 60 Hz loads requiring up to 20 Amps 0r 2400 Watts of power.
It has the protection function of electricity leakage (GFCI)
(4)
120V 20A Duplex(L5-30R)
Protected by a 25 A circuit breaker. This receptacle powers 120 Volt AC, 60
Hz, single phase loads requiring up to 25 Amps or 3000 watts of power.
(5)
VOLTMETER
Index style voltage meter, when running the generator unit, it shows
the current voltage; when turn off the generator unit, the reading
returns to”0”.
(6)
AC CIRCUIT BREAKER
Protects the generator against electrical overload.
(7)
LUG GROUND
Consult an electrician for local grounding regulations.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
