Etrel Inch | User Manual
|
c. Swipe RFID card
By simply swiping the RFID card below the LCD touch
screen where the RFID module is installed you can
authorize on the charging station and begin the
charging session
Step3: CONN ECTING THE CABLE
After the successful authorization you are going to see the screen
with the description to connect the cable.

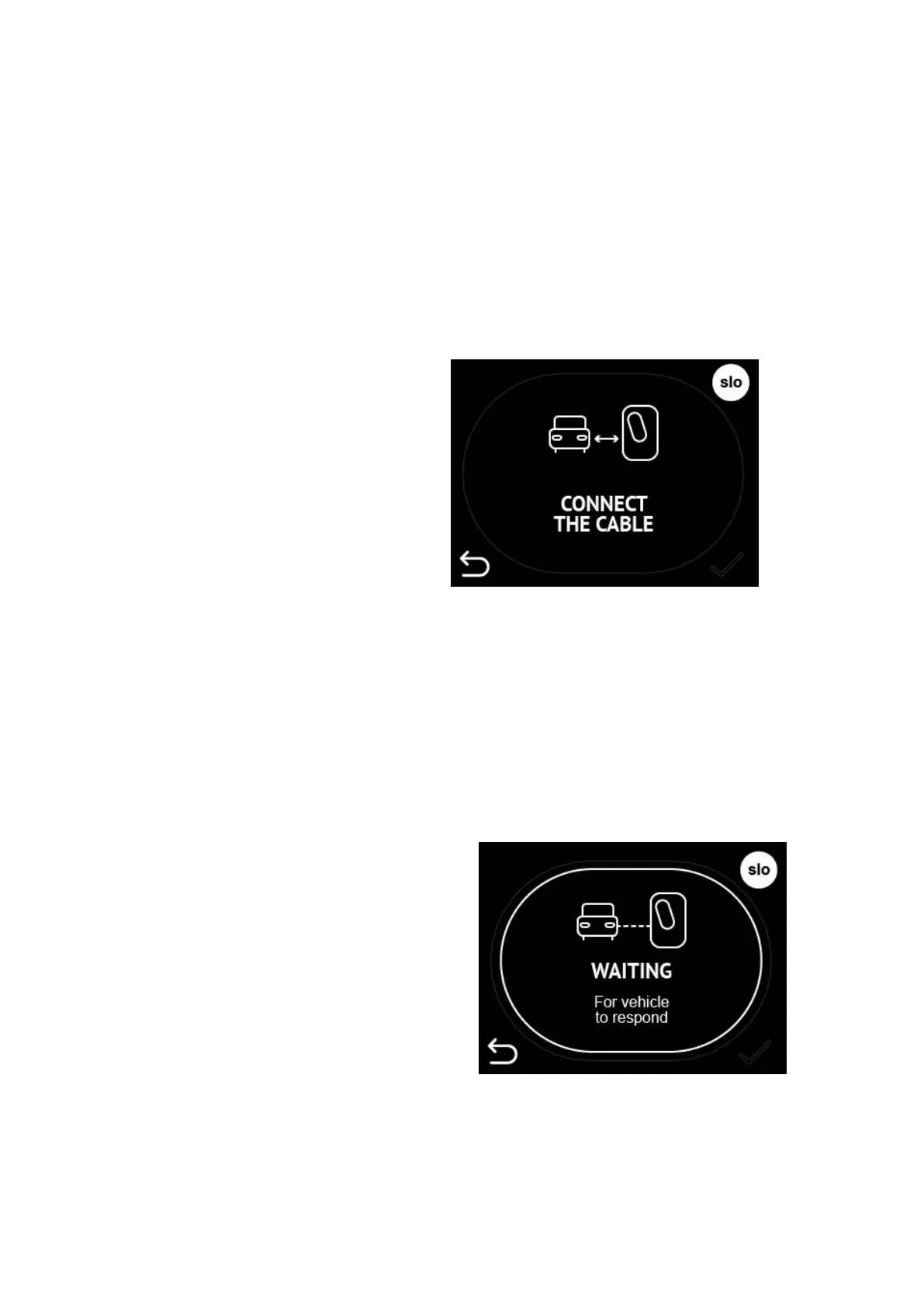

Figure 12: Connect the cable to charging station and EV
If the cable is connected before the authorisation this screen will be
left out and after the authorisation next screen “Waiting for vehicle
to respond” will be shown.
When the cable is connected charging station will start charging as
soon as EV responds.
Figure 13: Charging station is waiting for EV to responds and starts charging
