8 - Assembly Procedures
Note on assembly:
These instructions illustrate how to assemble
the booth without removing the grills.
However, you may find it easier to remove
the grills before beginning.

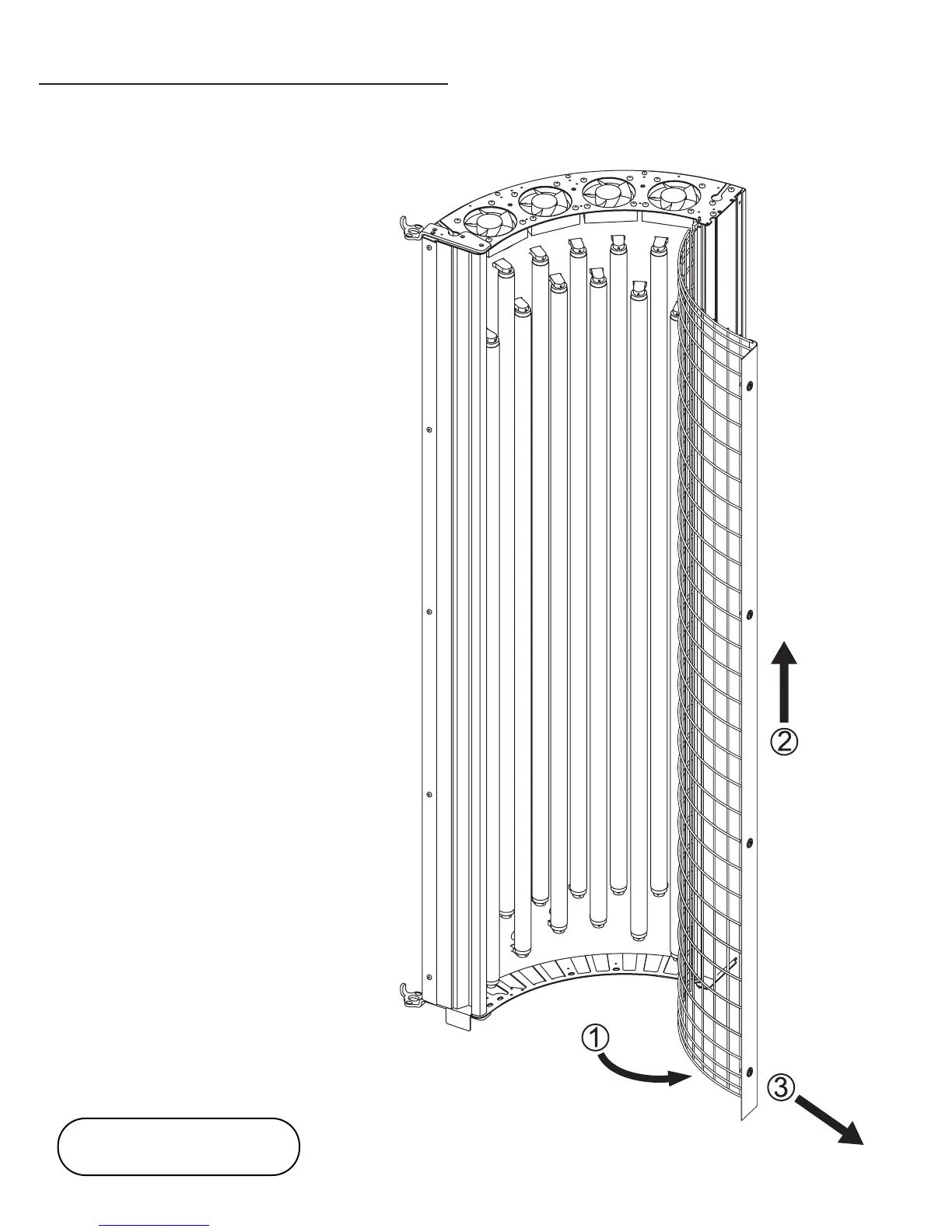

The Left Module is shown at right. Using the
hex key (included in the hardware kit) turn
the four quarter-turn latches on the grill to
unlock it. 1Swing the grill open, 2lift it and
3pull the bottom out.
To replace the grill, insert the top hinge pin
in the hole at the top of the module, swing
the bottom pin into place and drop it down
to engage the pin.
NOTE: Wiring deleted from
illustration for clarity.
