Adjusting Hinges - 25
Adjusting Hinges
Parts needed:
(4) Hinge locking pins
The booth doors should close tightly, with an even
seam between them. The hinges adjust to correct

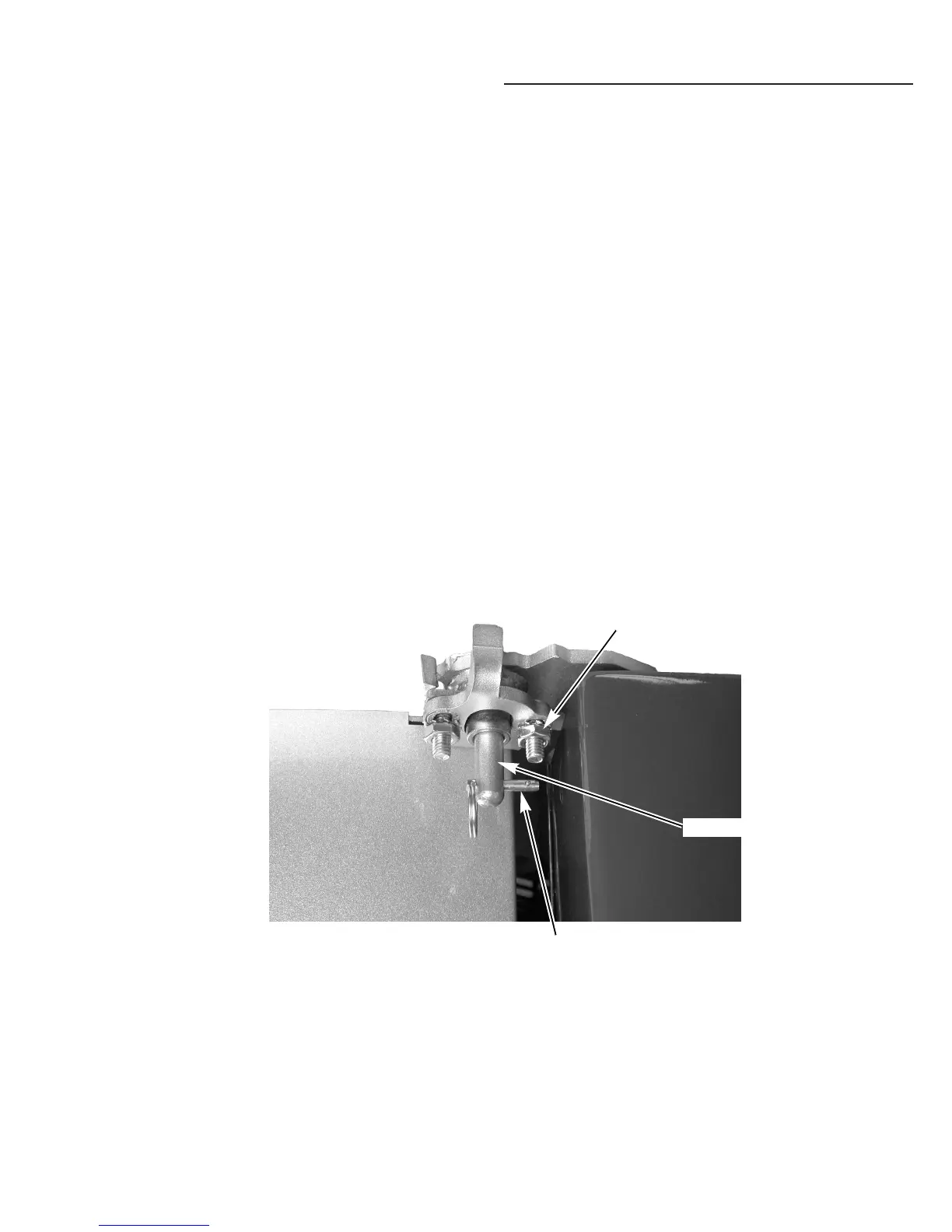

any door alignment problems. Loosen the lock
nuts on the underside of a hinge (see photo) and
adjust the door as needed. Tighten the lock nuts
when the doors are adjusted properly.
Insert the Hinge Locking Pins into the Hinge Pins
to prevent the doors from lifting off.
HINGE PIN
LOCK NUT
HINGE LOCKING PIN
