25809-02A
22 - Assembly Procedures
Parts needed:
(2) Handles
(2) Handle pins

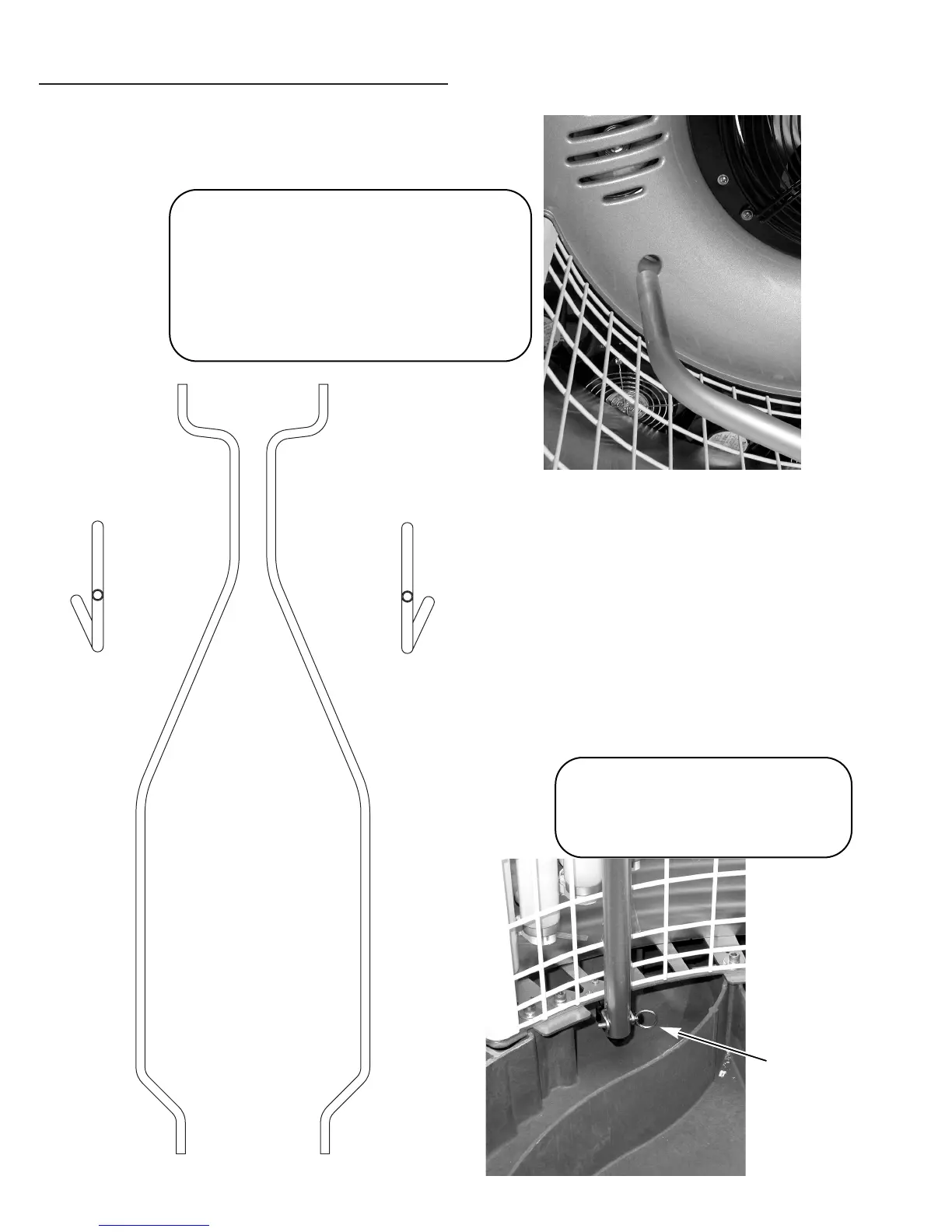

The handles, although they look similar, are
not the same. They will only fit properly
one way. A slot is cut into the top of each
handle that engages a tab inside the hole in
the Ceiling assembly. Insert a handle into
the hole, as shown, and twist it slightly to
make sure it engages the tab.
Slide the bottom of the handle into
the lower handle bracket and insert
a handle pin through it to lock the
handle in place.
HANDLE PIN
LEFT HANDLE
RIGHT HANDLE
LEFT HANDLE
VIEWED
FROM TOP
RIGHT HANDLE
VIEWED FROM
TOP
