12.4. Technical data for actuator A-B-A1-A1-…
Parameter
Value
Unit
min. typ. max.
Material
- Housing Ultradur black
- Ball holder Stainless steel
- Elastomer A-B-A1-161642: FKM red / A-B-A1-161643: FKM blue
Resistance Resistant to chemicals and oil
Food safe DINEN1672-2, DINENISO14159, PAH category 3
Weight 0.0194 kg
Ambient temperature -20 - +60 °C
Degree of protection IP67/IP69/IP69K
Mechanical life 1 x 10
6
Locking force, max. 1,300 N
Locking force F
Zh
1,000 N
Installation orientation Any
Overtravel 2 mm
Power supply
Inductive via read head

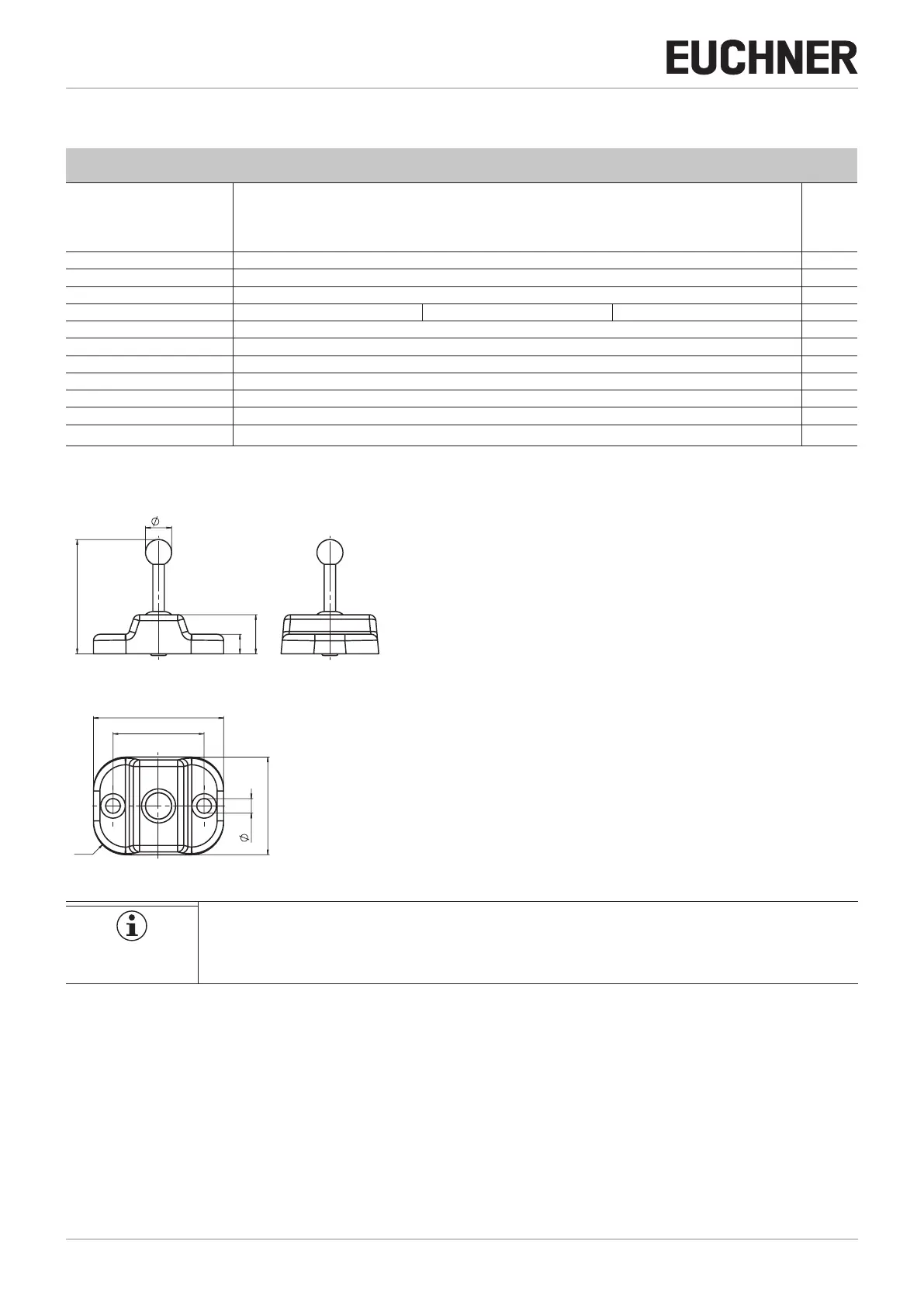

12.4.1. Dimension drawing for actuator A-B-A1-A1-…
35
8
12
6
4,5
30
40
28
R10
Tip!
Ì Safety screws are included with the actuator.
Ì Remove the set-up tool after mounting the safety switch and actuator.
