System Manual Safety System MGB-AR in Combination with a Locking Module
10
Preparing the escape release
1
Fit door handle
2
Insert actuation axis. The locking ring A must be in contact with
the escape release B.
3
Tighten setscrew to 2 Nm
4
Fit protective sleeve

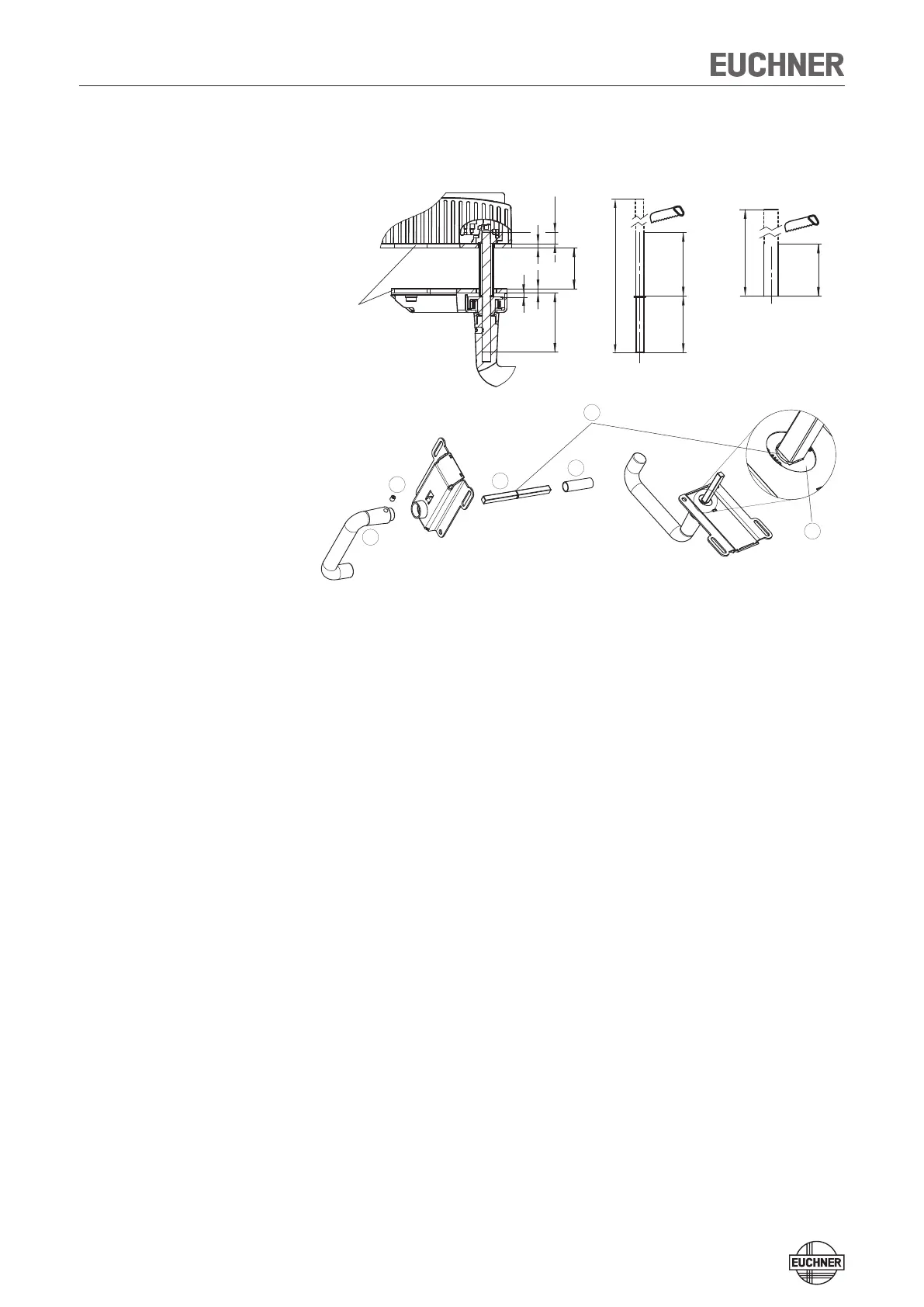

Figure 7: Preparing the escape release
1
3
2
4
A
B
Protective sleeve
Actuation axis
Example with mounting plates:
58,5
4
D
4
(10)
55,5
(+ 4 mm per plate)
250
182
Mounting plates
D + 13,5
3,5
(+ 4 mm per plate)
D + 3
