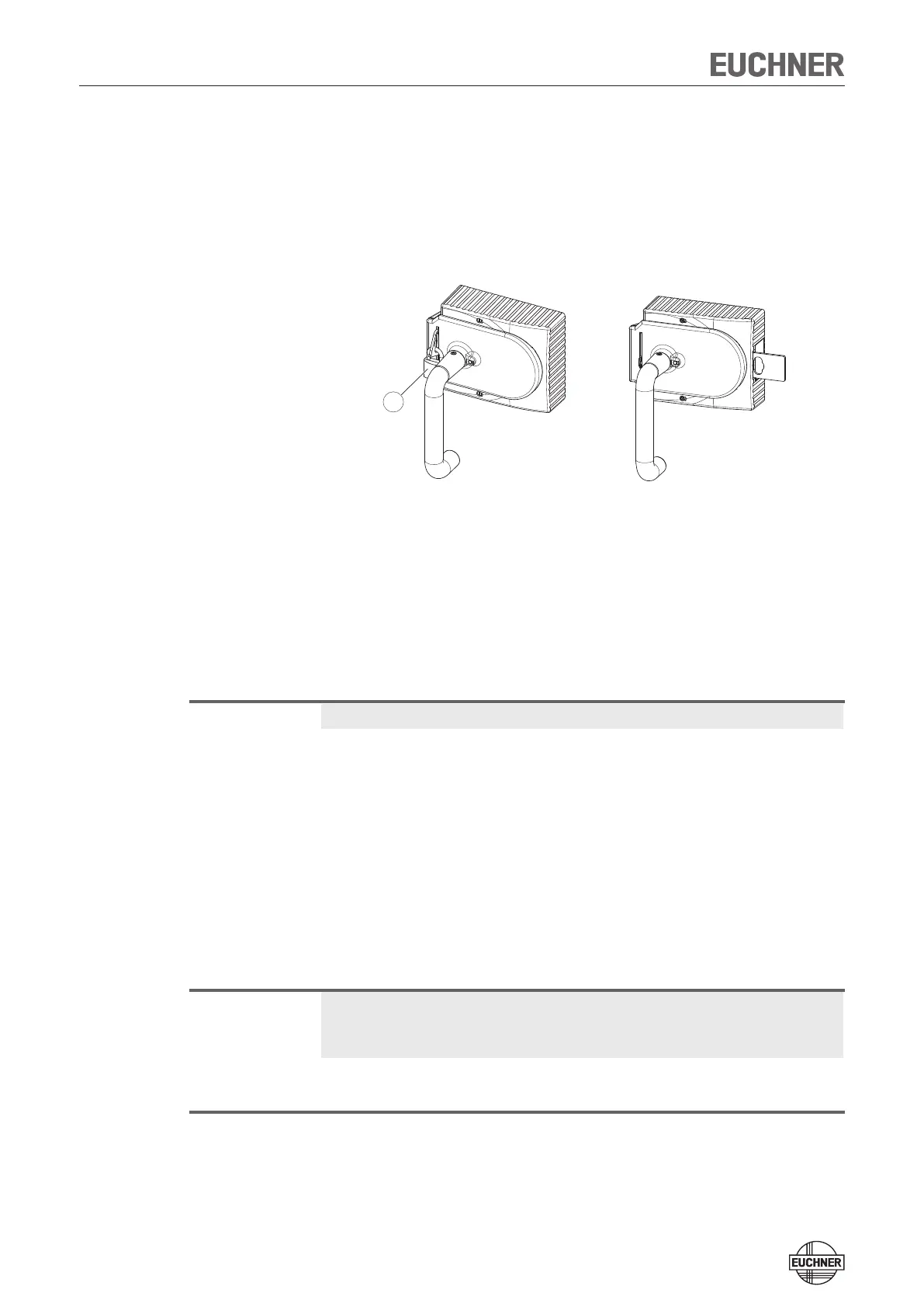

System Manual Safety System MGB-AR in Combination with a Locking Module
9
Lockout mechanism
If the lockout bar is pivoted out, the bolt tongue cannot be extended. The lockout
bar can be secured with padlocks (see Figure 6)
To pivot out, press the grooved part (only possible with bolt tongue retracted).
Figure 6: Lockout bar secured with padlock
Escape release (optional)
The escape release is used to open a locked safety guard from the inside without
tools.
Warning!
Loss of the safety function due to incorrect mounting of the escape release.
The actuation axis for the escape release must be inserted min. 10 mm into
the handle module.
In case of profile widths larger than 40 mm and on the usage of mounting
plates use 250 mm actuation axis (order no. 106 761) and cut to length.
In case of profile widths smaller than 40 mm, cut actuation axis and protective
sleeve to length.
Align escape release axis at right angles to the handle module. See Figures 4
and 8.
Install escape release so that operation as well as inspection and maintenance
are possible.
Important!
The system enters into a latching fault when the escape release is actuated.
See system status table on page 23, state signal sequence erroneous (DIA1
flashes six times).
Note!
The system might not enter into a latching fault if the escape release is actuated
very slowly.
Key:
1
Padlock min. 2 mm, max. 10
mm
Note:
You can fit a maximum of 3 locks Ø 8
mm.
1
Order No. 100464
Order No. 111157
